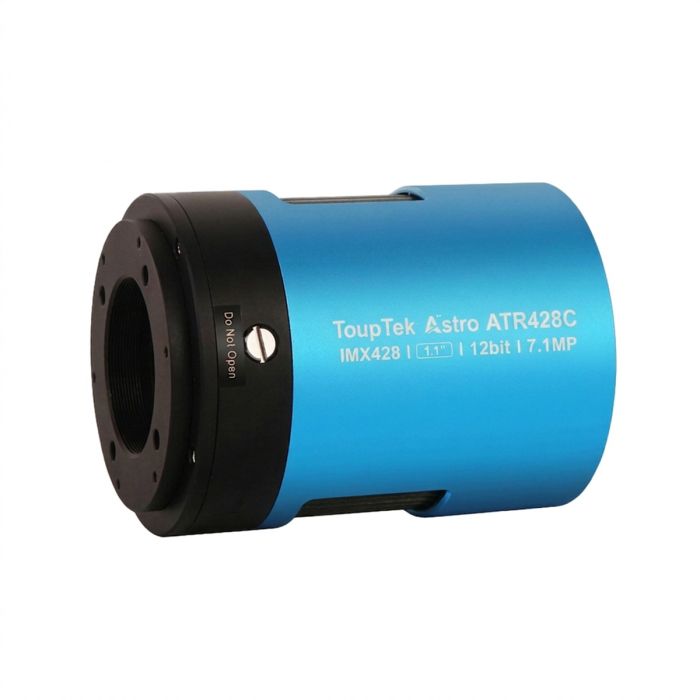

ToupTek ATR428C Cooled Color Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 7.1MP Sony IMX428 color sensor delivers detailed deep-sky and planetary images with low read noise
- Deep TEC cooling reduces thermal noise for cleaner long-exposure astrophotography
- High-speed USB 3.0 connectivity provides fast image downloads and responsive capture
- Never use this camera for solar imaging without a proper certified solar filter installed over the front of the telescope
ToupTek ATR Series DeepSky Solar Camera!
Designed specifically for the demanding needs of solar astrophotographers, the ATR428C is an exceptional imaging platform powered by the high-sensitivity Sony IMX428 CMOS sensor. Featuring a generous 1" optical format with large 4.5 pixels and a native 12-bit ADC, this camera delivers ultra-low noise, high sensitivity, and an artifact-free global shutter engineered for rapid frame-rate capture. It excels at freezing atmospheric turbulence during high-speed tracking, outputting blisteringly fast speeds at its 1600 x 1100 resolution—up to 133.1 fps in 8-bit mode, and an impressive 66.5 fps in full 12-bit depth. For amateur astronomers pairing their setups with solar spectrographs, specialized solar telescopes, or narrowband H-alpha devices like the DayStar Quark, the IMX428 sensor offers class-leading quantum efficiency directly at the critical H-alpha line (656.3 nm), ensuring your solar imaging is packed with razor-sharp, high-contrast surface details.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

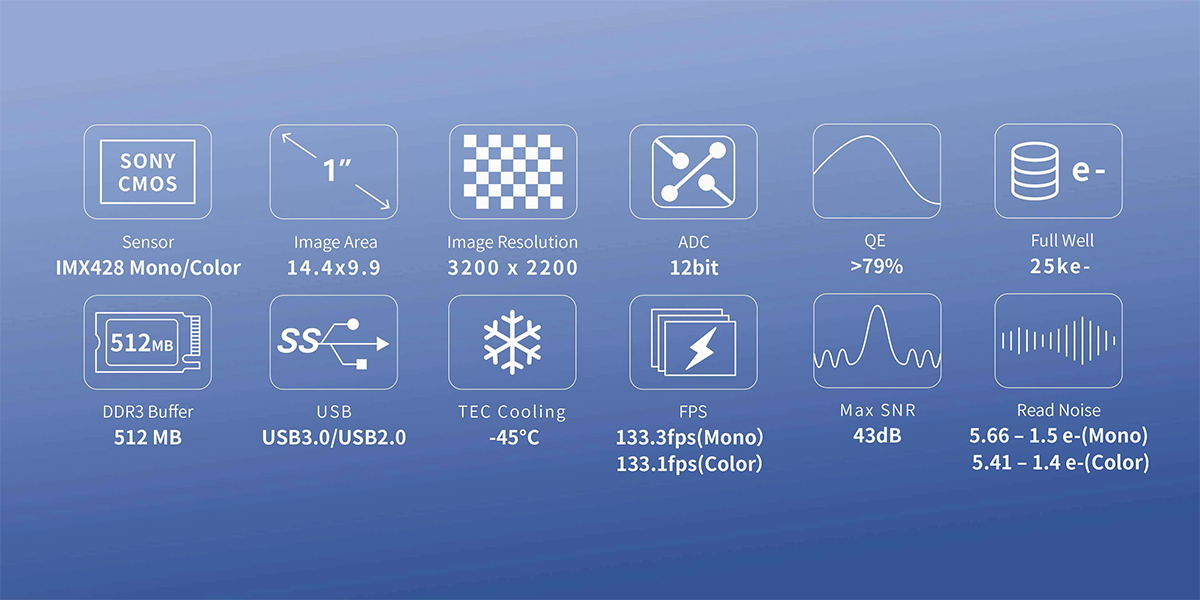

Sensor Specifications
- ATR428C features an IMX432 Color, 1.1inch Format sensor
- Diagonal: 17.5mm
- Pixel Size: 9μm x 9μm
Fast DDR3 Memory
ATR428C is equipped with USB 3.0/2.0 transmission interfaces and a built-in 512MB DDR3 memory buffer. This high-speed cache handles image data, reducing the burden on the computer's transmission system and ensuring stable, rapid data transfer.
Two Stage TEC cooling system
The ATR428C is equipped with a dual-stage TEC cooling system, which uses a PID algorithm to precisely regulate the cooling temperature for optimal stability and efficiency, achieving temperature stability of ±0.1°C. A controllable electric fan assists heat dissipation. The TEC system can lower the sensor temperature below ambient by up to 35°C during short-exposure shooting, and by up to 45°C during long exposures (≥5 seconds). This high-efficiency cooling significantly suppresses dark current and thermal noise, ensuring stable image quality.
Anti-dew technology
The ATR428C features a built-in heating module within the sensor's glass chamber, adjustable via software with four levels of control. This effectively prevents condensation on the CMOS sensor surface and protects against moisture forming on the glass window. It ensures stable performance even in outdoor environments with high humidity and significant temperature fluctuations.
Native 12-bit ADC & High Frame Rate
The ATR428C offers a native 12-bit ADC, delivering a stable high dynamic range. In 8-bit ADC mode, the frame rate reaches 133.3fps, enabling rapid recording of solar brightness variations and capturing fine details on the solar disk.
Specifications
-
Sensor: Sony IMX432 Color
-
Format: 1.1-inch
-
Sensor Dimensions: 14.4x9.9 mm (0.57x0.39 in)
-
Diagonal: 17.5 mm (0.69 in)
-
MAX fps: 109 fps (at full resolution, 12-bit RAW)
-
Back Focus: 17.5 mm (reducible to 12.5 mm by removing the T2 front ring)
-
Resolution: 1.7 MP (1600 × 1100 px)
-
Pixel size: 9.0 µm x 9.0 µm
-
ADC: 12-bit
-
Peak Quantum Efficiency (QE): ~79%
-
Full-Well: Up to 150 Ke- (in Low Conversion Gain mode)
-
DDR Memory: 512MB DDR3
-
Readout noise: 2.4e - 4.1e
-
Backlit: No (Front-illuminated)
-
Weight: 1.25 lb (0.57 kg) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100nm)
Flexible Gain Modes
The ATR428C supports HCG (High Conversion Gain) and LCG (Low Conversion Gain) mode switching. Users can freely choose the appropriate mode to reduce read noise while maintaining outstanding high dynamic range.

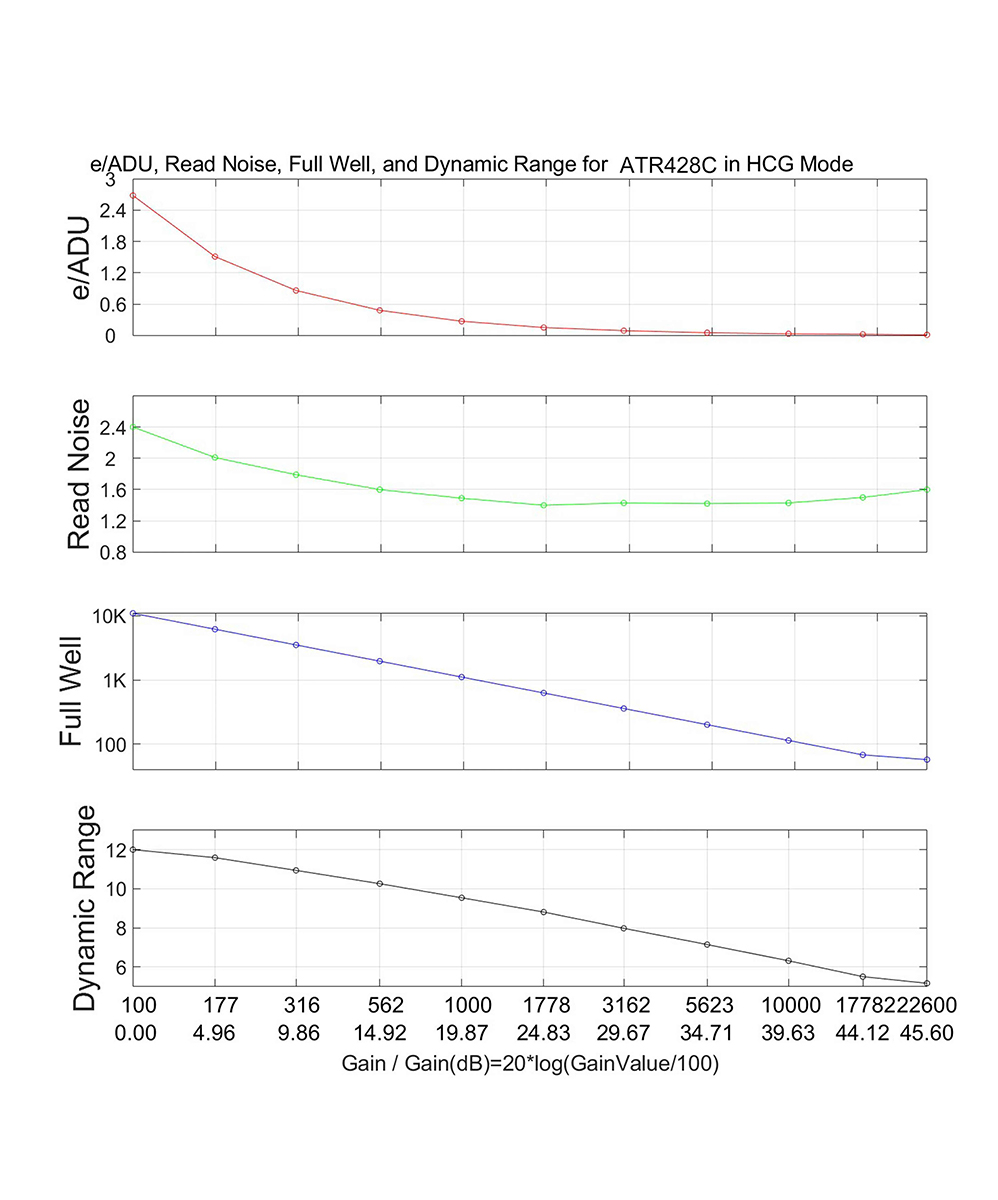

Performance Analysis in HCG

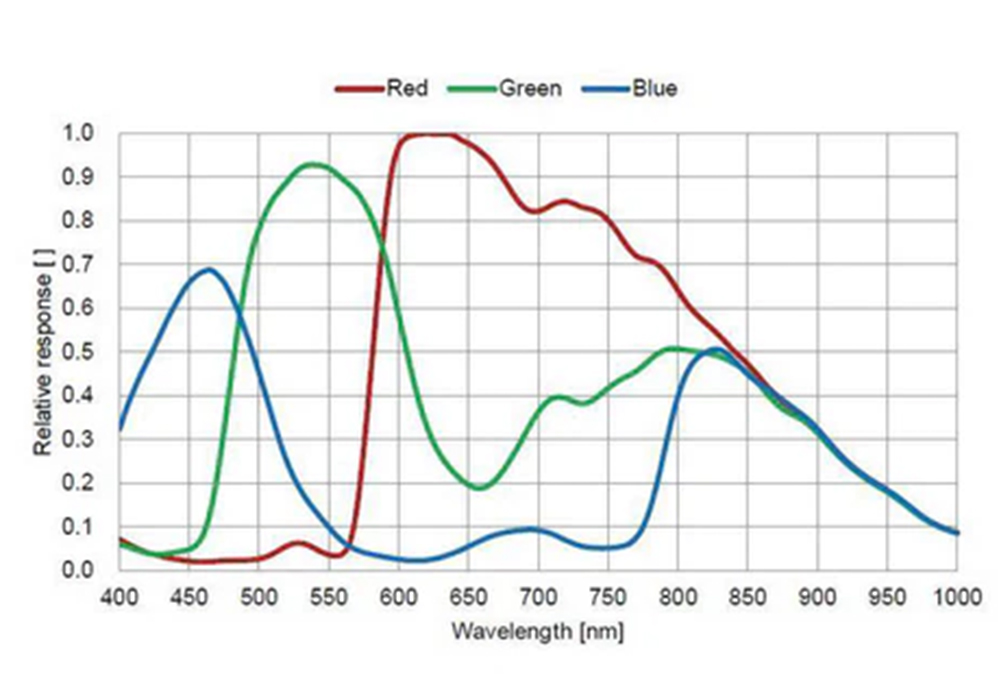

Relative Response

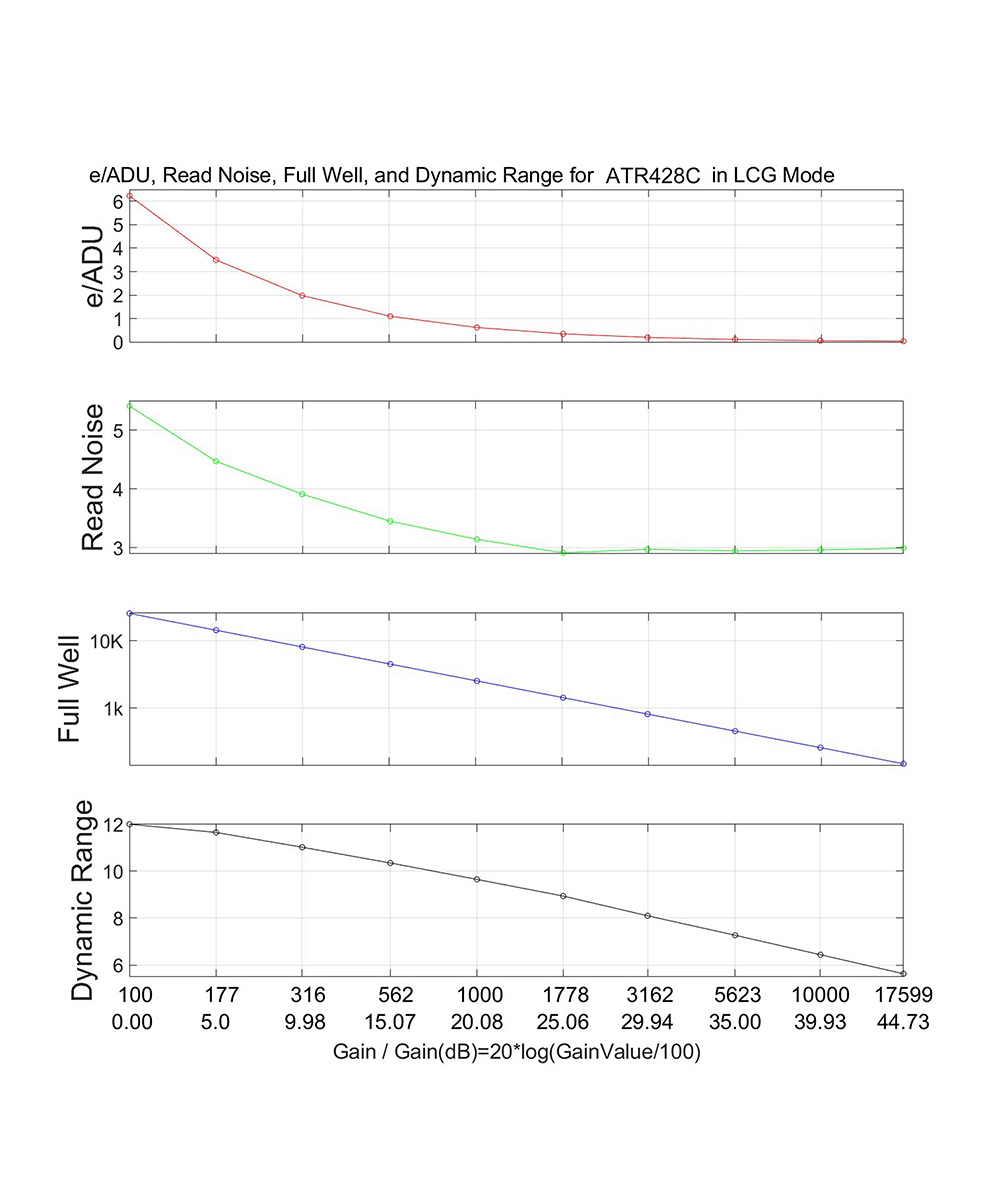

Performance Analysis in LCG
Diagrams
Mechanical Diagram
Back Focus Distance

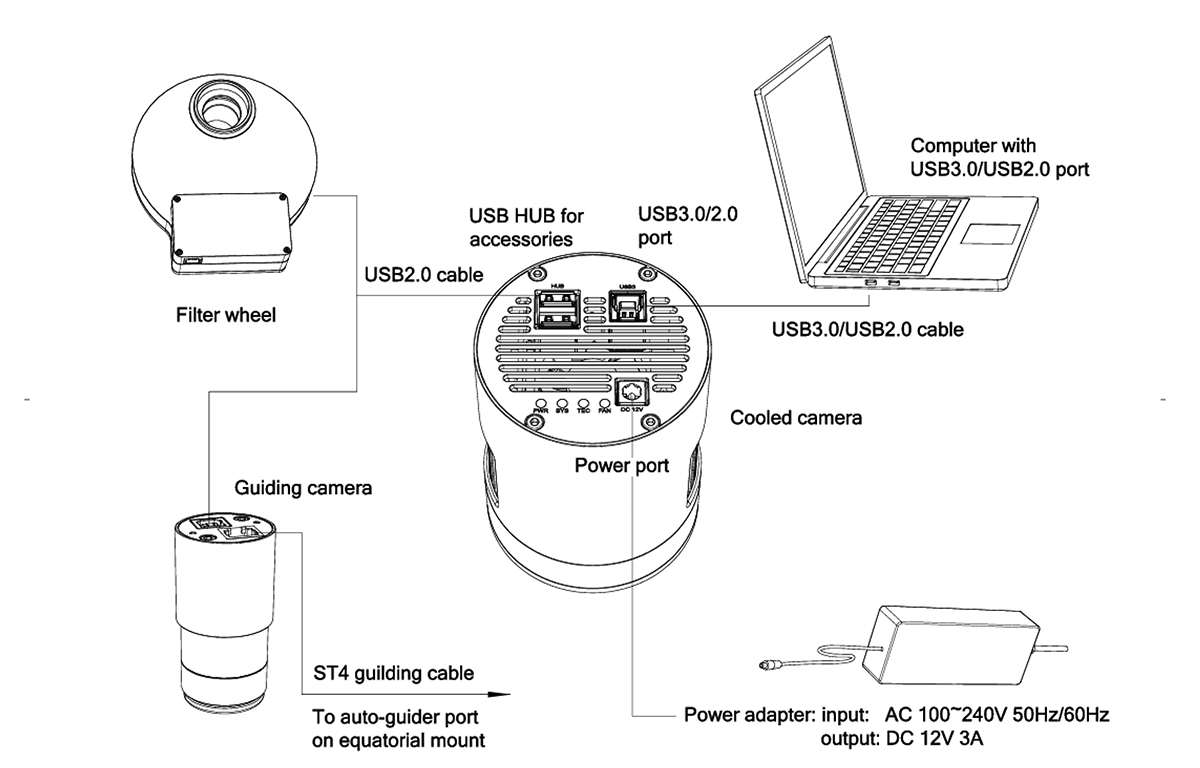

Connection w/ Accessories
Imaging Train
Work Showcase - Giant Solar Prominence - 500,000 km
Imaged by: FeiFeiFei
Other Information
- Country of Manufacture: China
ToupTek ATR Series DeepSky Solar Camera!
Designed specifically for the demanding needs of solar astrophotographers, the ATR428C is an exceptional imaging platform powered by the high-sensitivity Sony IMX428 CMOS sensor. Featuring a generous 1" optical format with large 4.5 pixels and a native 12-bit ADC, this camera delivers ultra-low noise, high sensitivity, and an artifact-free global shutter engineered for rapid frame-rate capture. It excels at freezing atmospheric turbulence during high-speed tracking, outputting blisteringly fast speeds at its 1600 x 1100 resolution—up to 133.1 fps in 8-bit mode, and an impressive 66.5 fps in full 12-bit depth. For amateur astronomers pairing their setups with solar spectrographs, specialized solar telescopes, or narrowband H-alpha devices like the DayStar Quark, the IMX428 sensor offers class-leading quantum efficiency directly at the critical H-alpha line (656.3 nm), ensuring your solar imaging is packed with razor-sharp, high-contrast surface details.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
- ATR428C features an IMX432 Color, 1.1inch Format sensor
- Diagonal: 17.5mm
- Pixel Size: 9μm x 9μm
Fast DDR3 Memory
ATR428C is equipped with USB 3.0/2.0 transmission interfaces and a built-in 512MB DDR3 memory buffer. This high-speed cache handles image data, reducing the burden on the computer's transmission system and ensuring stable, rapid data transfer.
Two Stage TEC cooling system
The ATR428C is equipped with a dual-stage TEC cooling system, which uses a PID algorithm to precisely regulate the cooling temperature for optimal stability and efficiency, achieving temperature stability of ±0.1°C. A controllable electric fan assists heat dissipation. The TEC system can lower the sensor temperature below ambient by up to 35°C during short-exposure shooting, and by up to 45°C during long exposures (≥5 seconds). This high-efficiency cooling significantly suppresses dark current and thermal noise, ensuring stable image quality.
Anti-dew technology
The ATR428C features a built-in heating module within the sensor's glass chamber, adjustable via software with four levels of control. This effectively prevents condensation on the CMOS sensor surface and protects against moisture forming on the glass window. It ensures stable performance even in outdoor environments with high humidity and significant temperature fluctuations.
Native 12-bit ADC & High Frame Rate
The ATR428C offers a native 12-bit ADC, delivering a stable high dynamic range. In 8-bit ADC mode, the frame rate reaches 133.3fps, enabling rapid recording of solar brightness variations and capturing fine details on the solar disk.
Specifications
-
Sensor: Sony IMX432 Color
-
Format: 1.1-inch
-
Sensor Dimensions: 14.4x9.9 mm (0.57x0.39 in)
-
Diagonal: 17.5 mm (0.69 in)
-
MAX fps: 109 fps (at full resolution, 12-bit RAW)
-
Back Focus: 17.5 mm (reducible to 12.5 mm by removing the T2 front ring)
-
Resolution: 1.7 MP (1600 × 1100 px)
-
Pixel size: 9.0 µm x 9.0 µm
-
ADC: 12-bit
-
Peak Quantum Efficiency (QE): ~79%
-
Full-Well: Up to 150 Ke- (in Low Conversion Gain mode)
-
DDR Memory: 512MB DDR3
-
Readout noise: 2.4e - 4.1e
-
Backlit: No (Front-illuminated)
-
Weight: 1.25 lb (0.57 kg) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100nm)
Flexible Gain Modes
The ATR428C supports HCG (High Conversion Gain) and LCG (Low Conversion Gain) mode switching. Users can freely choose the appropriate mode to reduce read noise while maintaining outstanding high dynamic range.
Performance Analysis in HCG
Relative Response
Performance Analysis in LCG
Diagrams
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
Work Showcase - Giant Solar Prominence - 500,000 km
Imaged by: FeiFeiFei

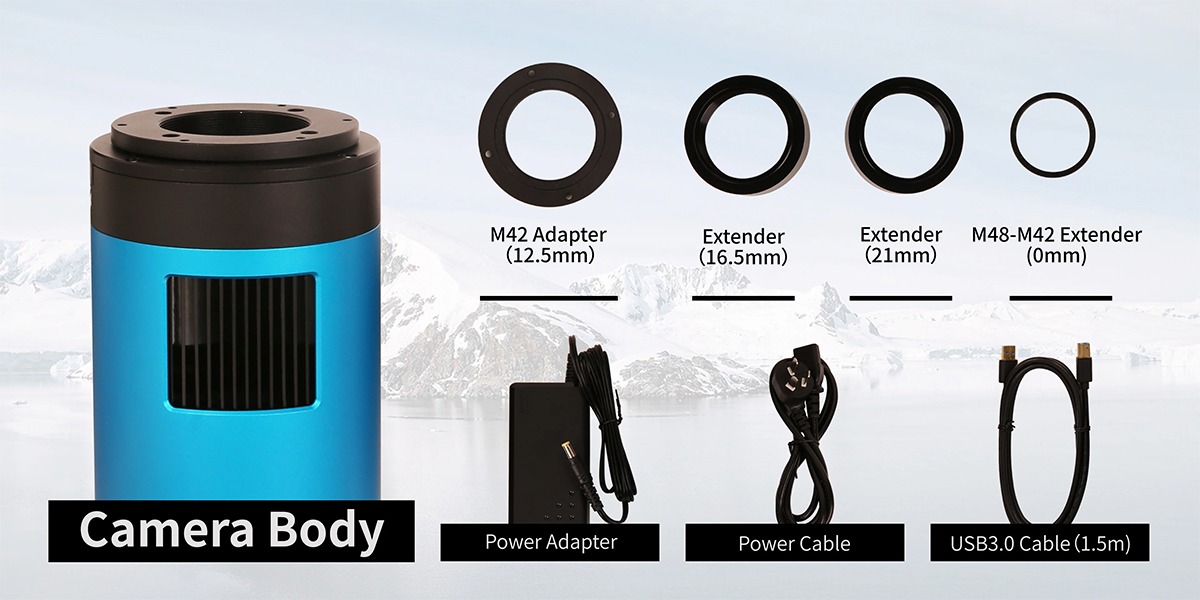

- 1x Camera Body
- 1x M42 adapter (12.5mm)
- 1x Extender (16.5mm)
- 1x Extender (21mm)
- 1x M48-M42 Extender (0mm)
- 1x Power Adapter
- 1x Power Cable
- 1x USB 3.0 Cable (1.5mm)
