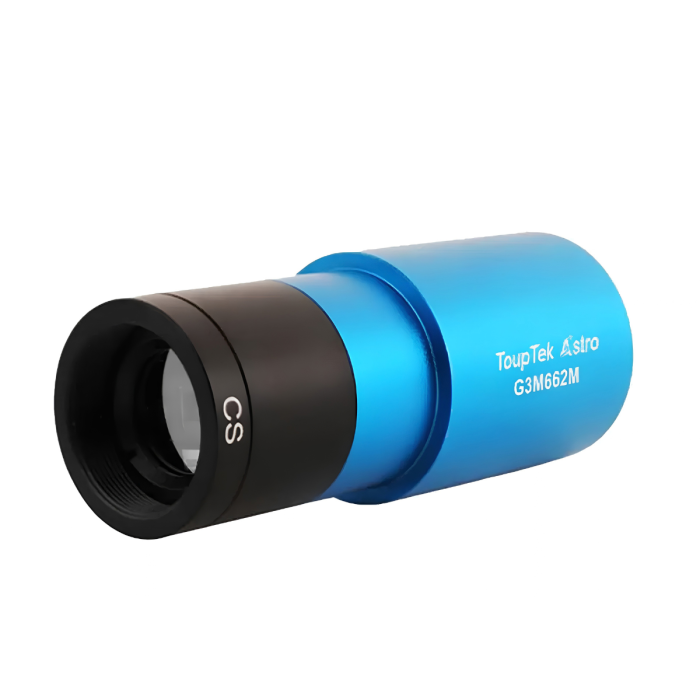

ToupTek G3M662M Mono Guide Camera with Infrared Milky Way Set
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- STARVIS and Exmor R technology for detailed planetary imaging.
- USB 3.0 delivers up to 103.4 FPS at full resolution.
- Supports accurate imaging of planetary, lunar, and solar targets.

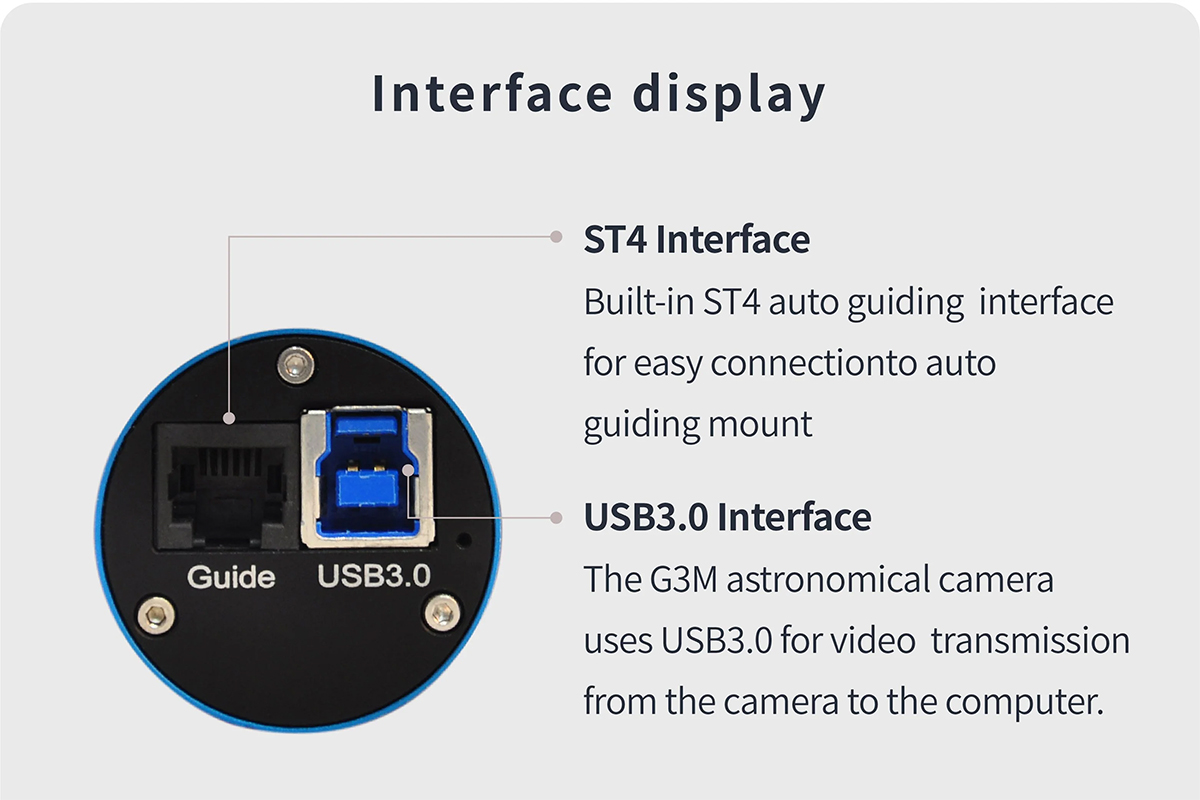

- 1.25" body with built-in frame buffer and ST4 autoguider port.
- Includes the ToupTek Infrared Galaxy Set with an LP825 IR-pass filter and CS lens for near-infrared imaging.
ToupTek G3M Series Planetary Cameras with Infared Filter Kit
The planetary and guiding camera G3M662M adopts SONY STARVIS 2 and Exmor R back-illuminated technologies, making it ideal for high-resolution astronomical photography, auto-guiding, and microscopy. Featuring an extremely low readout noise, high sensitivity, and a 12-bit ADC, the G3M662M delivers exceptional deep-sky, lunar, and planetary detail. By eliminating the Bayer color filter array, this monochrome sensor achieves 100% pixel utilization for maximum resolution and sharpness. The camera also includes a high-transmission AR-coated protective window to ensure maximum light throughput across the entire spectral range.

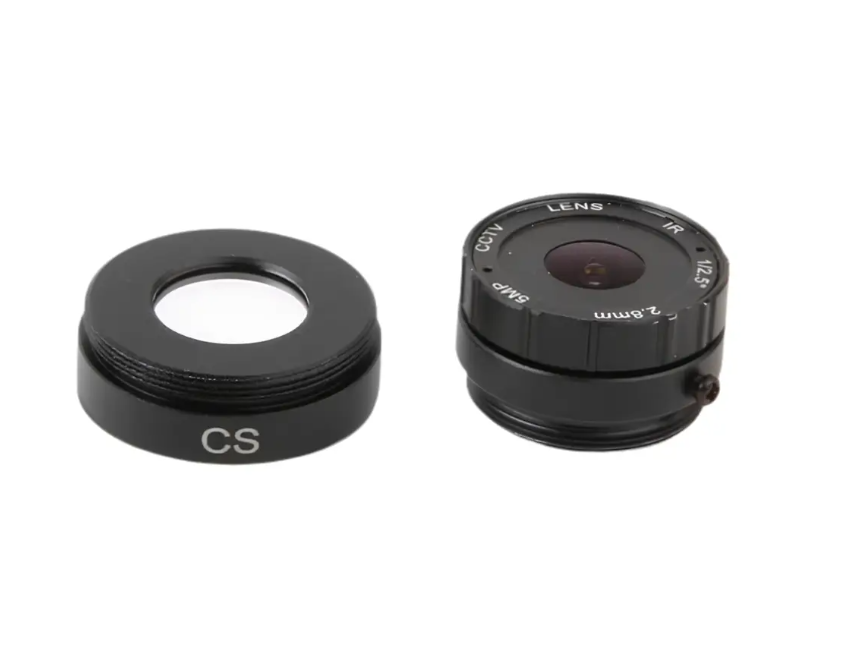

Included Infared Filter Set
Designed for urban astrophotography under light-polluted skies, the infrared galaxy set offers a new way to capture the otherworldly beauty of the Milky Way. Equipped with an 825 nm infrared pass filter and a lens, it allows you to effortlessly photograph the galaxy from anywhere, at any time — no telescope required.
Sony STARVIS & Exmor R Technology
The G3M662M features Sony's latest STARVIS 2 technology with a monochrome sensor, delivering exceptional high sensitivity with a spectral response range of 400-1000nm. This advanced sensor technology provides superior low-light performance and high dynamic range, ensuring crystal-clear celestial images even in challenging conditions.
High-Speed Data Transfer
With USB 3.0 connectivity, G3M66sM delivers stable high-speed data transfer, achieving up to 101 FPS at full resolution in 8-bit mode. This high frame rate capability is essential for lucky imaging techniques, allowing you to capture hundreds or thousands of frames quickly to select and stack only the sharpest images affected least by atmospheric turbulence

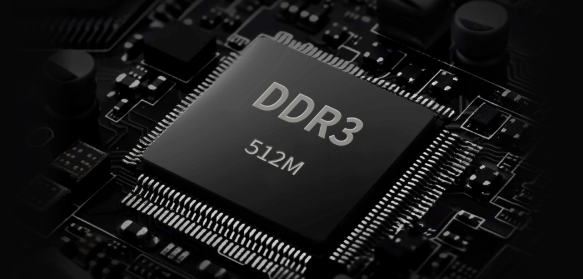

DDR3 High-Speed Buffer
Equipped with a USB 3.0 high-speed interface and 512MB DDR3 high-speed buffer, this camera significantly reduces amp-glow caused by image data buffering. The advanced buffer system ensures stable and smooth data transmission for uninterrupted imaging sessions.
Large Full Well
Compared to the previous-generation G3M462C, the G3M662M features significantly lower read noise and a larger full well charge capacity. This advancement effectively suppresses image overexposure, especially under low-light conditions, capturing clearer celestial images with dramatically improved image quality.

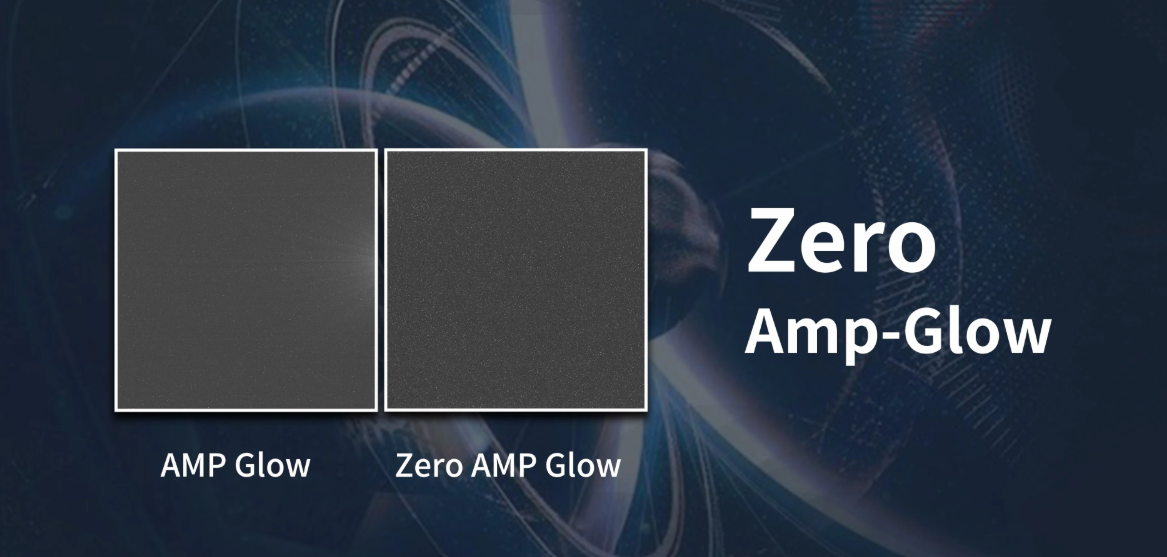

Zero Amp-Glow
The G3M662M achieves "zero amp-glow" at the hardware level. Whether under long exposure or high gain settings, your resulting images remain pristine and clean, free from unwanted thermal artifacts.
Specifications
-
Sensor Model: Sony IMX662 Monochrome Back-Illuminated CMOS (STARVIS 2 Technology)
-
Sensor Size: 1/2.8-inch (6.45 mm / 0.25 in diagonal)
-
Image Area: 5.57 mm x 3.13 mm (0.22 in x 0.12 in)
-
Resolution: 2.1 Megapixels (1920 x 1080)
-
Pixel Size: 2.9 μm x 2.9 μm
-
ADC Bit Depth: 12-bit
-
Quantum Efficiency: > 91% Peak
-
Full Well Capacity: 38.9ke-
-
Read Noise: 0.47 e- (HCG mode) to 5.08 e- (LCG mode)
-
Dynamic Range: 77.69 dB (HDR mode)
-
SNR Max: 45.9 dB
-
G Sensitivity: 8970 mV with 1/30s
-
Spectral Range: 380–690 nm (with AR-window)
-
Maximum Frame Rate (16-bit Output via USB 3.0): 69 FPS @ 1920 x 1080
-
Maximum Frame Rate (8-bit Output via USB 3.0): 100 FPS @ 1920 x 1080
-
Exposure Time Range: 0.1 ms – 1000 s
-
Gain Range: 1x – 150x
-
Shutter Type: Rolling Shutter
-
Data Interface: USB 3.0 / USB 2.0 (with ST4 Guide Port & 512MB DDR3 Buffer)
-
Back Focus Distance: 12.5 mm (0.49 in) with CS adapter
-
Camera Dimensions: 37 mm Diameter x 72.4 mm Height (1.46 in Diameter x 2.85 in Height)
-
Weight: 70 g (2.47 oz)
-
Supported OS: Windows XP/Vista/7/8/10/11, Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain

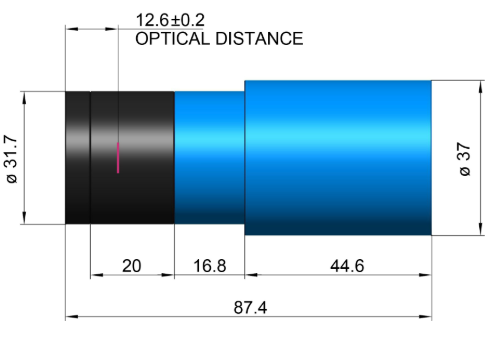

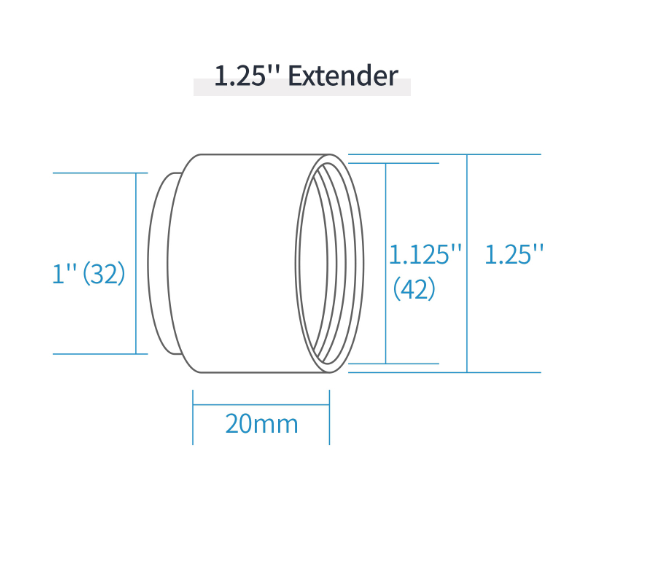

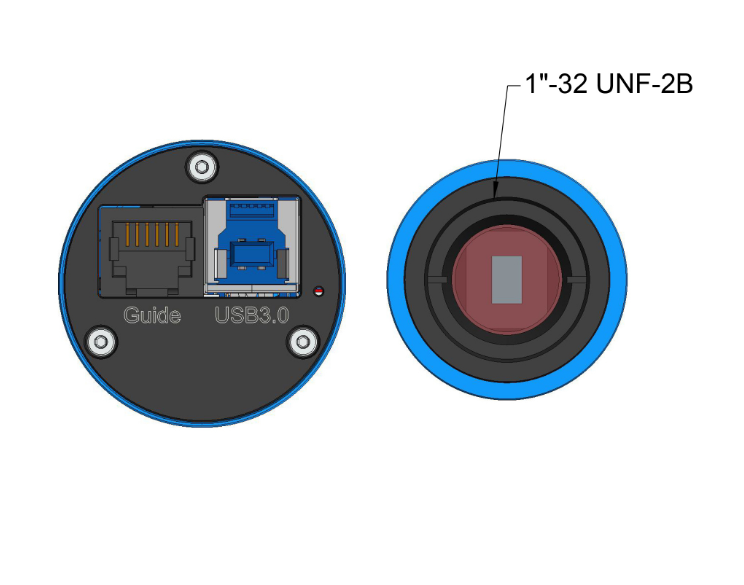

Mechanical Diagrams

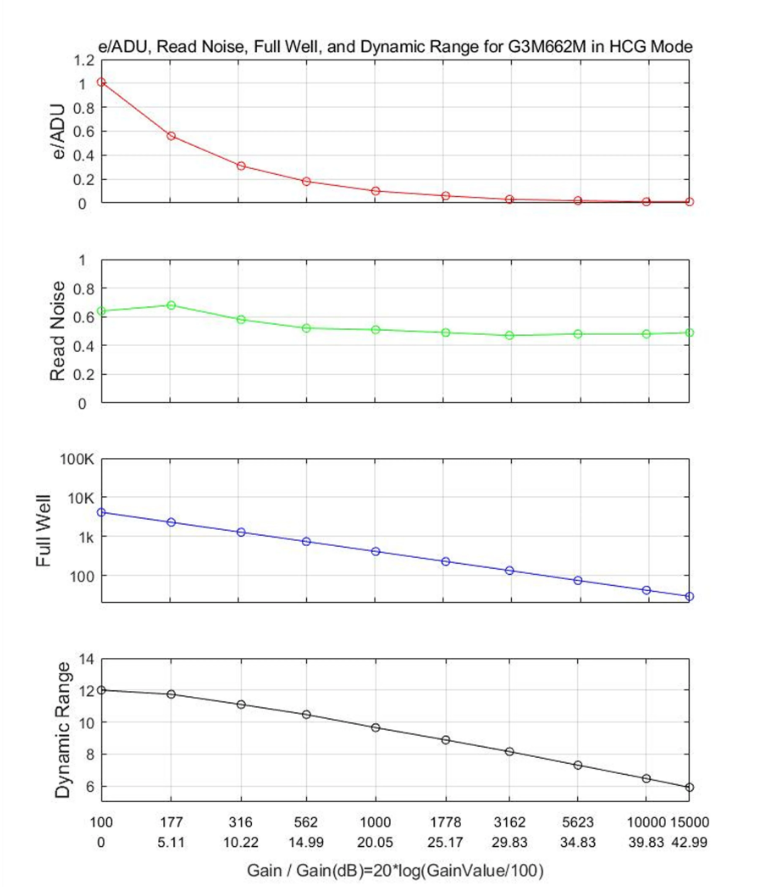

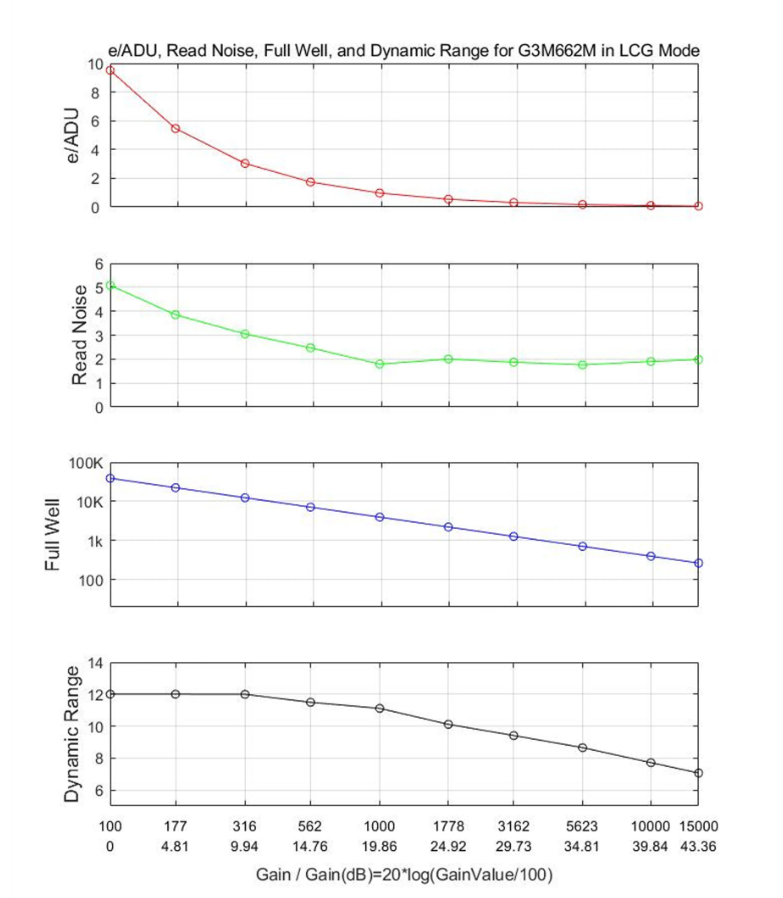

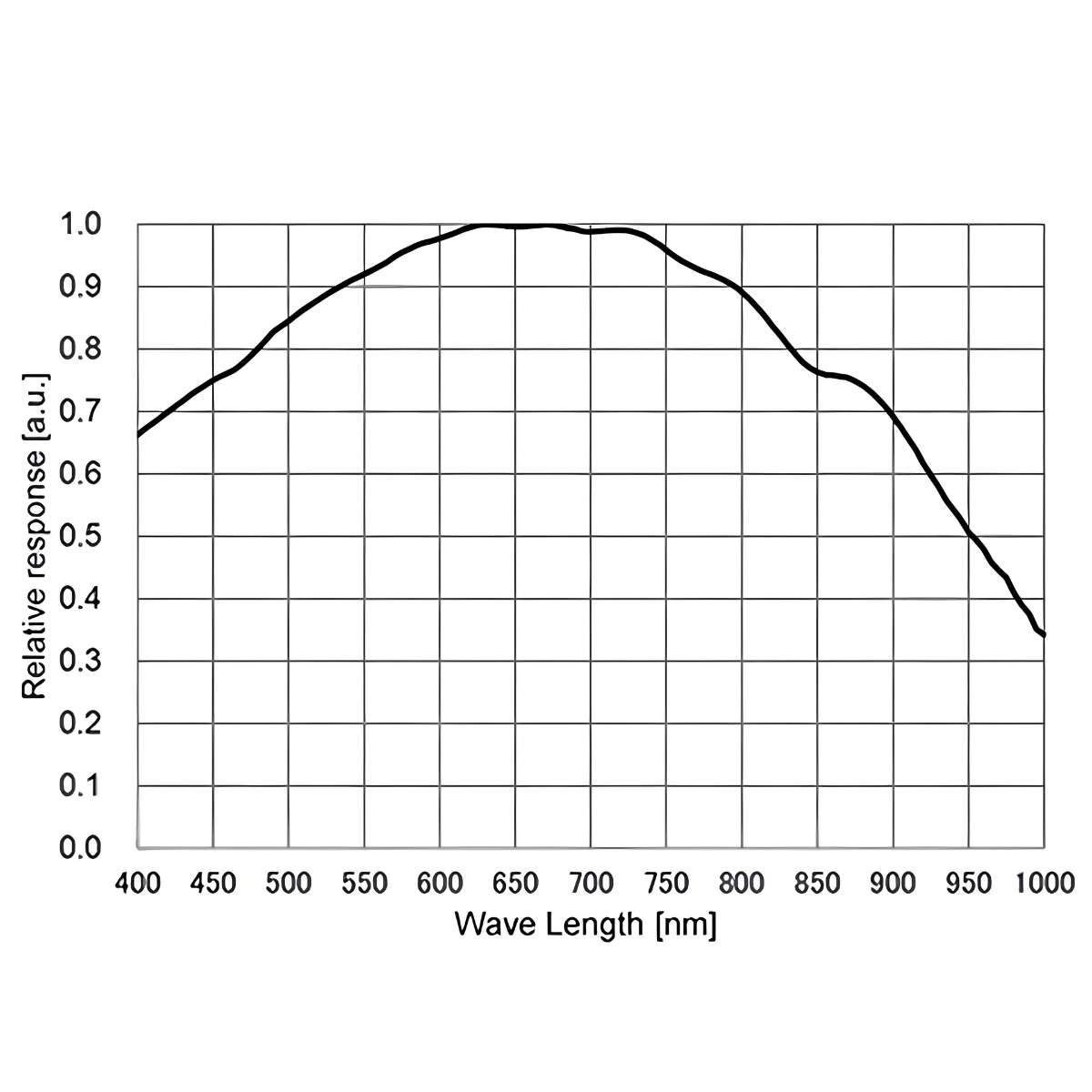

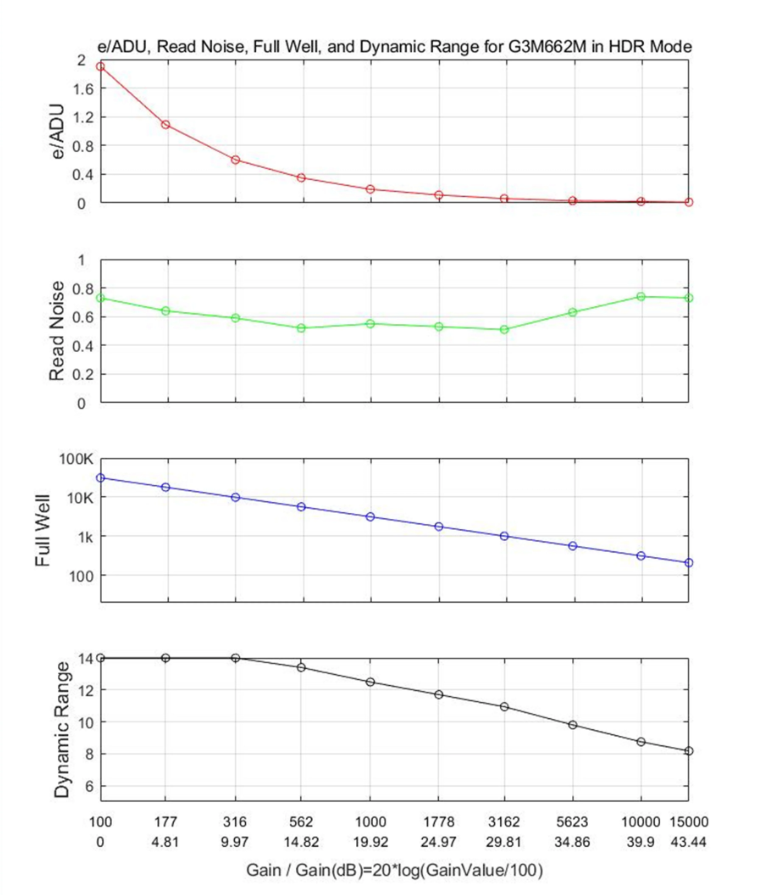

Performance Curve Analysis
Other Information
- Country of Manufacture: China
ToupTek G3M Series Planetary Cameras with Infared Filter Kit
The planetary and guiding camera G3M662M adopts SONY STARVIS 2 and Exmor R back-illuminated technologies, making it ideal for high-resolution astronomical photography, auto-guiding, and microscopy. Featuring an extremely low readout noise, high sensitivity, and a 12-bit ADC, the G3M662M delivers exceptional deep-sky, lunar, and planetary detail. By eliminating the Bayer color filter array, this monochrome sensor achieves 100% pixel utilization for maximum resolution and sharpness. The camera also includes a high-transmission AR-coated protective window to ensure maximum light throughput across the entire spectral range.
Included Infared Filter Set
Designed for urban astrophotography under light-polluted skies, the infrared galaxy set offers a new way to capture the otherworldly beauty of the Milky Way. Equipped with an 825 nm infrared pass filter and a lens, it allows you to effortlessly photograph the galaxy from anywhere, at any time — no telescope required.
Sony STARVIS & Exmor R Technology
The G3M662M features Sony's latest STARVIS 2 technology with a monochrome sensor, delivering exceptional high sensitivity with a spectral response range of 400-1000nm. This advanced sensor technology provides superior low-light performance and high dynamic range, ensuring crystal-clear celestial images even in challenging conditions.
High-Speed Data Transfer
With USB 3.0 connectivity, G3M66sM delivers stable high-speed data transfer, achieving up to 101 FPS at full resolution in 8-bit mode. This high frame rate capability is essential for lucky imaging techniques, allowing you to capture hundreds or thousands of frames quickly to select and stack only the sharpest images affected least by atmospheric turbulence
DDR3 High-Speed Buffer
Equipped with a USB 3.0 high-speed interface and 512MB DDR3 high-speed buffer, this camera significantly reduces amp-glow caused by image data buffering. The advanced buffer system ensures stable and smooth data transmission for uninterrupted imaging sessions.
Large Full Well
Compared to the previous-generation G3M462C, the G3M662M features significantly lower read noise and a larger full well charge capacity. This advancement effectively suppresses image overexposure, especially under low-light conditions, capturing clearer celestial images with dramatically improved image quality.
Zero Amp-Glow
The G3M662M achieves "zero amp-glow" at the hardware level. Whether under long exposure or high gain settings, your resulting images remain pristine and clean, free from unwanted thermal artifacts.
Specifications
-
Sensor Model: Sony IMX662 Monochrome Back-Illuminated CMOS (STARVIS 2 Technology)
-
Sensor Size: 1/2.8-inch (6.45 mm / 0.25 in diagonal)
-
Image Area: 5.57 mm x 3.13 mm (0.22 in x 0.12 in)
-
Resolution: 2.1 Megapixels (1920 x 1080)
-
Pixel Size: 2.9 μm x 2.9 μm
-
ADC Bit Depth: 12-bit
-
Quantum Efficiency: > 91% Peak
-
Full Well Capacity: 38.9ke-
-
Read Noise: 0.47 e- (HCG mode) to 5.08 e- (LCG mode)
-
Dynamic Range: 77.69 dB (HDR mode)
-
SNR Max: 45.9 dB
-
G Sensitivity: 8970 mV with 1/30s
-
Spectral Range: 380–690 nm (with AR-window)
-
Maximum Frame Rate (16-bit Output via USB 3.0): 69 FPS @ 1920 x 1080
-
Maximum Frame Rate (8-bit Output via USB 3.0): 100 FPS @ 1920 x 1080
-
Exposure Time Range: 0.1 ms – 1000 s
-
Gain Range: 1x – 150x
-
Shutter Type: Rolling Shutter
-
Data Interface: USB 3.0 / USB 2.0 (with ST4 Guide Port & 512MB DDR3 Buffer)
-
Back Focus Distance: 12.5 mm (0.49 in) with CS adapter
-
Camera Dimensions: 37 mm Diameter x 72.4 mm Height (1.46 in Diameter x 2.85 in Height)
-
Weight: 70 g (2.47 oz)
-
Supported OS: Windows XP/Vista/7/8/10/11, Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain
Mechanical Diagrams
Performance Curve Analysis
- 1x GPM622M Mono Guide Camera Main Unit (with Type-C-Mount inner)
- 1x USB 2.0 Data Cable (2 meters, Type-A to Type-C)
- 1x ST4 Guide Cable (2 meters)
- 1x 1.25-inch Nosepiece
- 1x CS-mount Ring
- 1x LP825nm Filter
- 1x CS lens for G3M
