Ultimate Cable Master for RASA and HyperStar 8" - Spike Free Version
The Wanderer Ultimate Cable Master (Cross Spike Version, WUCMR8-CS) is a patented, revolutionary cable-management bracket for the Celestron RASA 8" and HyperStar 8" that eliminates a major drawback of fast prime-focus imaging: cable-induced diffraction. By replacing all traditional wires crossing the light path with a single ultra-thin (1.6 mm) printed circuit board paired with a front anti-reflection baffle, it transforms messy, chaotic star artifacts into a clean, symmetrical cross-shaped diffraction pattern that rivals premium Newtonian reflectors. For perfectionists, the bracket features fine-tuning adjustments (fore/aft and left/right) for precise spike alignment.
Because USB data and 12V power travel directly through the internal traces of the PCB, no cables ever enter the light path. This creates a clean, localized hub right at the corrector plate, providing two USB 2.0 ports for your camera and accessories alongside a 12V output rated for up to 3A to safely power your front-mounted gear.
Cross Spike Version or Spike Free Version?
From an optical standpoint, the Cross Spike Version introduces minimal obstruction and can deliver slightly sharper images. If you do not like diffraction spikes, or if you need to rotate the CAA very often, the Spike-Free Version is the better choice. However, unlike a refractor, residual diffraction artifacts may still be visible in bright stars due to factors such as stress in the Schmidt corrector plate, although the results are significantly cleaner than with traditional solutions.
Patented Design Eliminates Cables
A specially designed PCB spans the optical path, completely eliminating the need for cables in the light path. The result is cleaner diffraction patterns and improved image quality, addressing one of the most common challenges faced by RASA and HyperStar users.

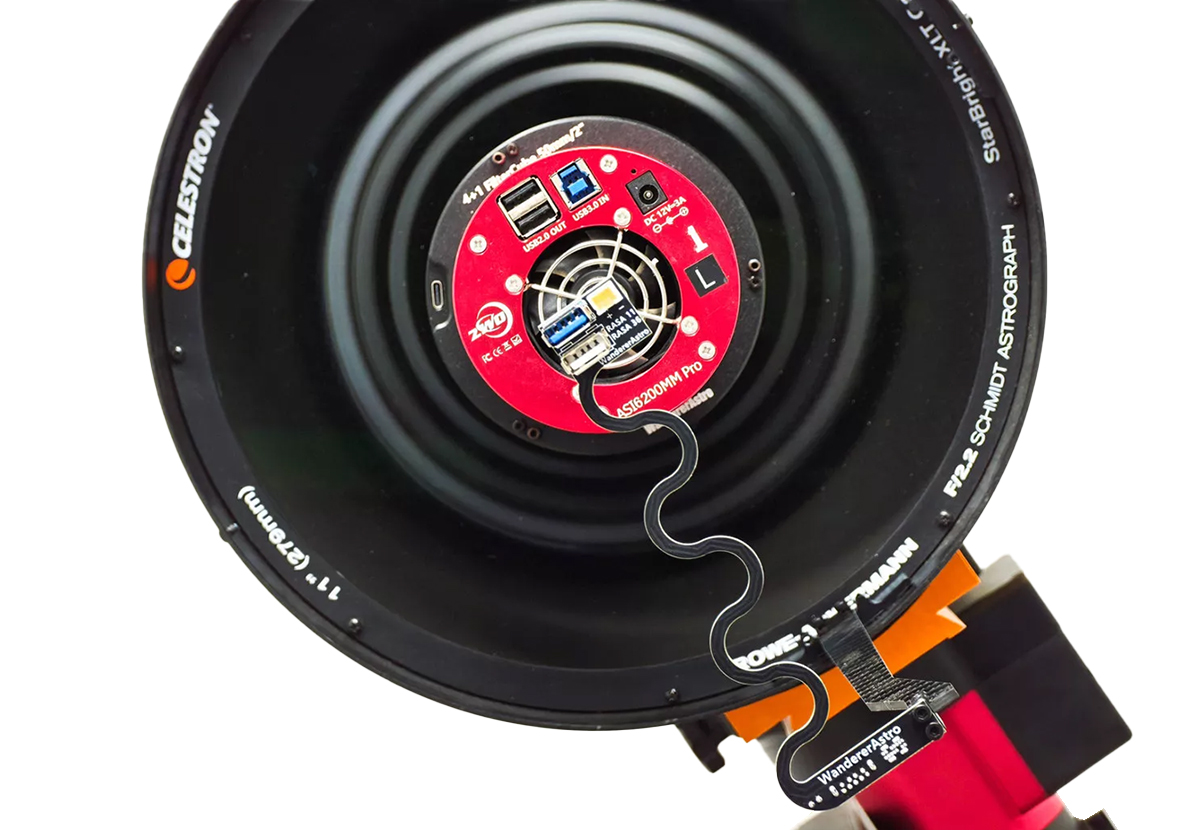

- Note: Photos on this page are for installation reference only. The product does not include the filters, cameras, telescopes, or other equipment shown in the images.
Pictured USB 3.0 not included with the RASA 8" model and just for attachment demonstration.
Eliminate Cable-Induced Diffraction Spikes

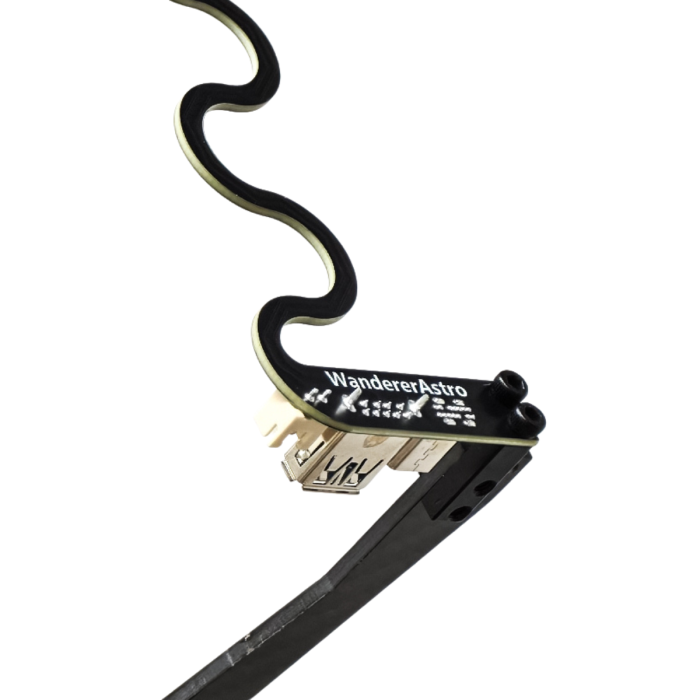

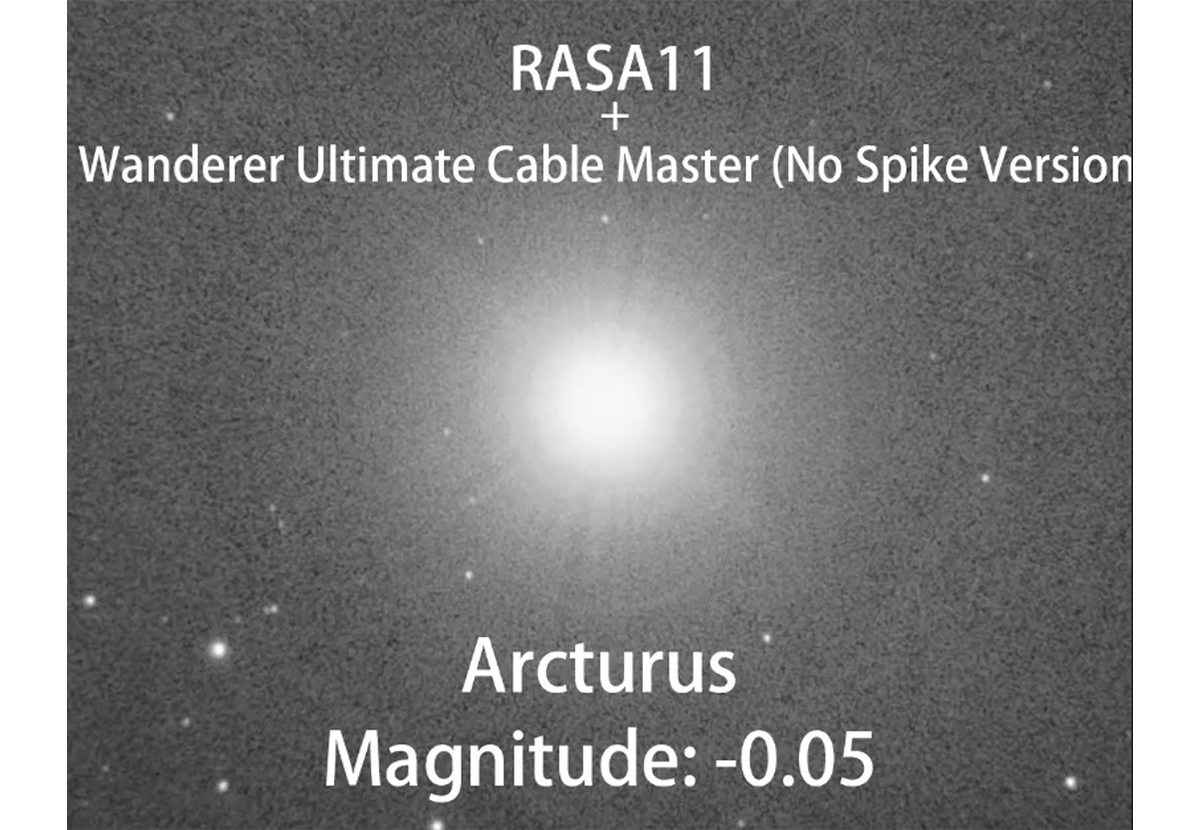

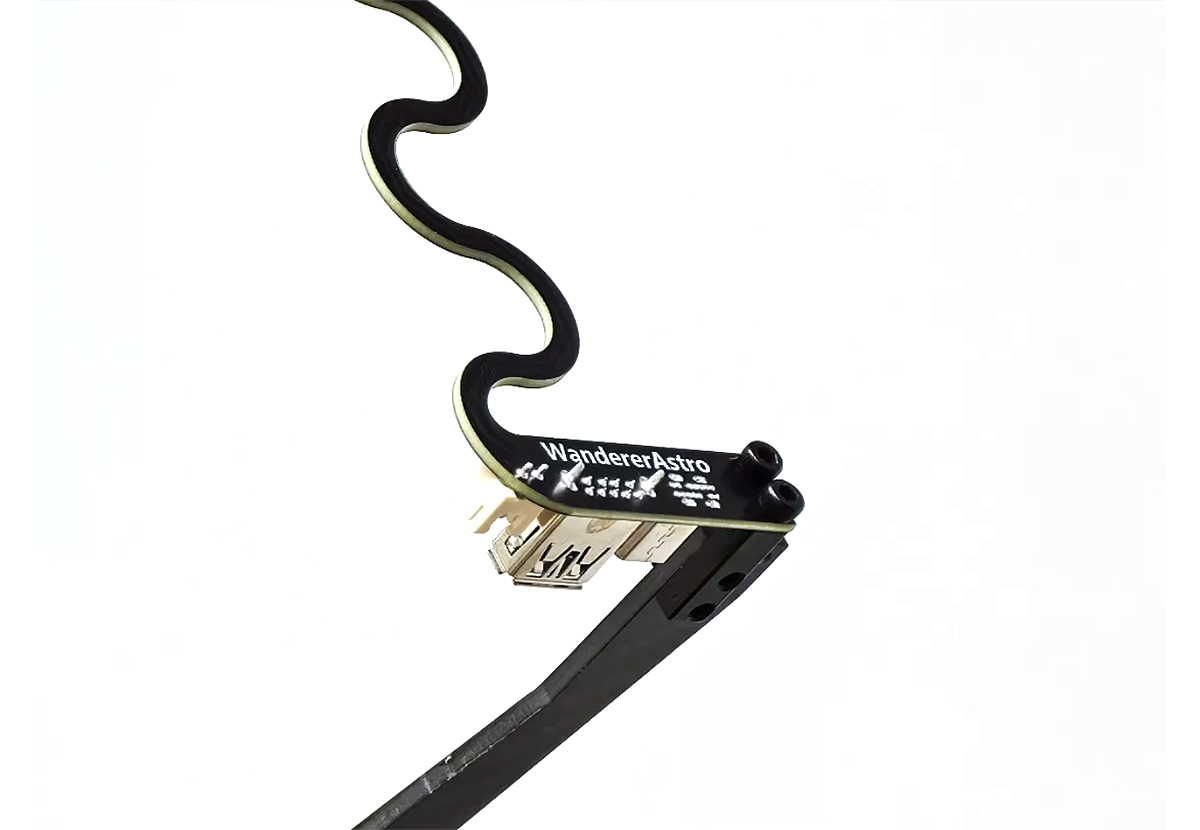

After dozens of design iterations and extensive testing, WandererAstro developed a spike-free design with an S-shaped PCB that is only 3–4 mm wide. RASA and HyperStar systems can now produce refractor-like, spike-free star images.
Multiple USB and Power Ports
RASA/HyperStar 6/8 models include two USB 2.0 ports and one 12V power port. The 12V port supports up to 3A; for continuous use, 2A or less is recommended (85% camera cooling power or below).
Rich Accessory

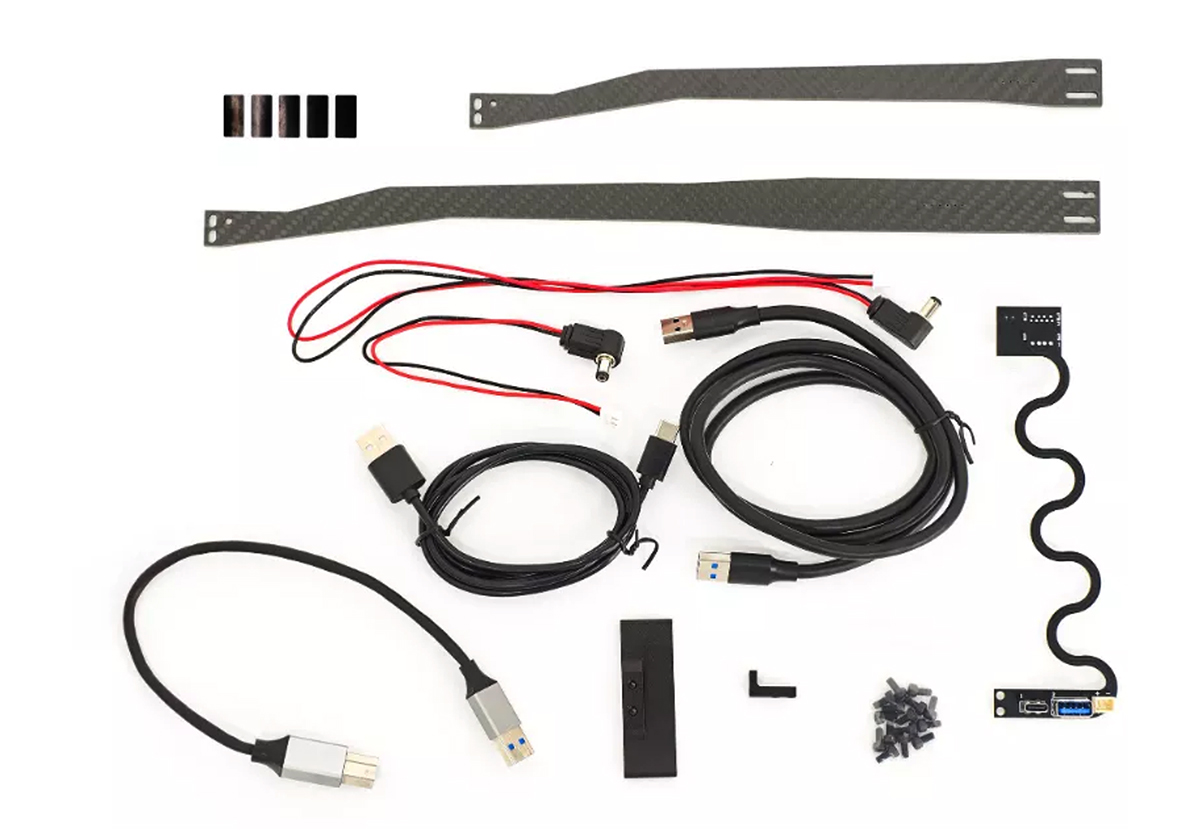

Two bracket lengths are included to support different camera body lengths and the differing back-focus requirements of RASA and HyperStar systems. Short USB and DC cables are also included.
Compatible with Dew Shield and Heater

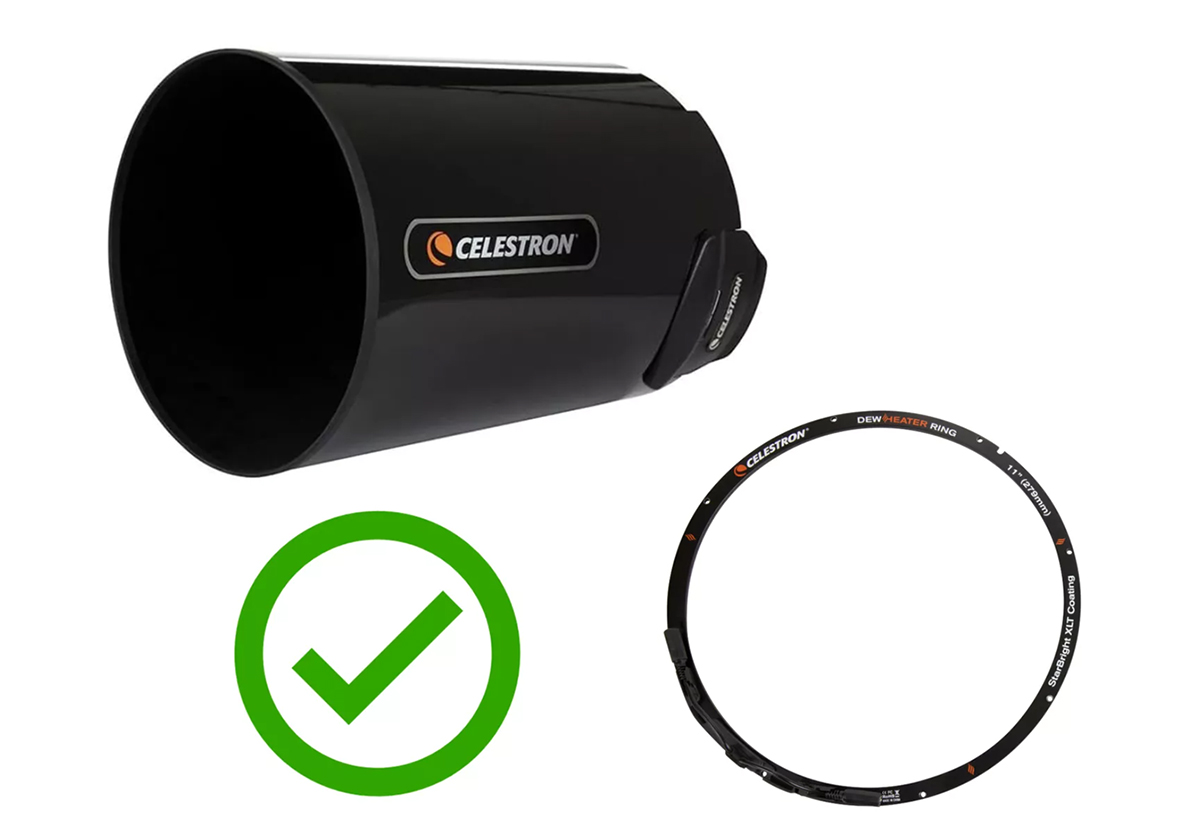

The bracket uses a non-destructive installation design and is fully compatible with the original Celestron dew shield and most third-party dew shields, as well as the original Celestron dew heater ring.
Specifications
-
Compatible Telescopes: Celestron RASA 8-inch and Celestron C8 w/ Starizona HyperStar 8-inch
-
USB Interface: 2x USB 2.0 downstream ports
-
Power Output: 1x 12V DC barrel jack (rated up to 3A)
-
Installation Method: Non-destructive and fully reversible (mounting nano tape included)
-
Accessories Compatibility: Fully compatible with the Celestron OEM dew heater ring, Celestron dew shield, and most third-party dew shields
-
Included Cabling: Ultra-short USB and DC power patch cables for clean, localized camera connection
Other Information
- Country of Manufacture: China
Ultimate Cable Master for RASA and HyperStar 8" - Spike Free Version
The Wanderer Ultimate Cable Master (Cross Spike Version, WUCMR8-CS) is a patented, revolutionary cable-management bracket for the Celestron RASA 8" and HyperStar 8" that eliminates a major drawback of fast prime-focus imaging: cable-induced diffraction. By replacing all traditional wires crossing the light path with a single ultra-thin (1.6 mm) printed circuit board paired with a front anti-reflection baffle, it transforms messy, chaotic star artifacts into a clean, symmetrical cross-shaped diffraction pattern that rivals premium Newtonian reflectors. For perfectionists, the bracket features fine-tuning adjustments (fore/aft and left/right) for precise spike alignment.
Because USB data and 12V power travel directly through the internal traces of the PCB, no cables ever enter the light path. This creates a clean, localized hub right at the corrector plate, providing two USB 2.0 ports for your camera and accessories alongside a 12V output rated for up to 3A to safely power your front-mounted gear.
Cross Spike Version or Spike Free Version?
From an optical standpoint, the Cross Spike Version introduces minimal obstruction and can deliver slightly sharper images. If you do not like diffraction spikes, or if you need to rotate the CAA very often, the Spike-Free Version is the better choice. However, unlike a refractor, residual diffraction artifacts may still be visible in bright stars due to factors such as stress in the Schmidt corrector plate, although the results are significantly cleaner than with traditional solutions.
Patented Design Eliminates Cables
A specially designed PCB spans the optical path, completely eliminating the need for cables in the light path. The result is cleaner diffraction patterns and improved image quality, addressing one of the most common challenges faced by RASA and HyperStar users.
- Note: Photos on this page are for installation reference only. The product does not include the filters, cameras, telescopes, or other equipment shown in the images.
Pictured USB 3.0 not included with the RASA 8" model and just for attachment demonstration.
Eliminate Cable-Induced Diffraction Spikes
After dozens of design iterations and extensive testing, WandererAstro developed a spike-free design with an S-shaped PCB that is only 3–4 mm wide. RASA and HyperStar systems can now produce refractor-like, spike-free star images.
Multiple USB and Power Ports
RASA/HyperStar 6/8 models include two USB 2.0 ports and one 12V power port. The 12V port supports up to 3A; for continuous use, 2A or less is recommended (85% camera cooling power or below).
Rich Accessory
Two bracket lengths are included to support different camera body lengths and the differing back-focus requirements of RASA and HyperStar systems. Short USB and DC cables are also included.
Compatible with Dew Shield and Heater
The bracket uses a non-destructive installation design and is fully compatible with the original Celestron dew shield and most third-party dew shields, as well as the original Celestron dew heater ring.
Specifications
-
Compatible Telescopes: Celestron RASA 8-inch and Celestron C8 w/ Starizona HyperStar 8-inch
-
USB Interface: 2x USB 2.0 downstream ports
-
Power Output: 1x 12V DC barrel jack (rated up to 3A)
-
Installation Method: Non-destructive and fully reversible (mounting nano tape included)
-
Accessories Compatibility: Fully compatible with the Celestron OEM dew heater ring, Celestron dew shield, and most third-party dew shields
-
Included Cabling: Ultra-short USB and DC power patch cables for clean, localized camera connection
- 1x Cable master
- 1x Nano mounting tape
- 2x brackets
Ultimate Cable Master for RASA and HyperStar 8" - Spike Free Version
The Wanderer Ultimate Cable Master (Cross Spike Version, WUCMR8-CS) is a patented, revolutionary cable-management bracket for the Celestron RASA 8" and HyperStar 8" that eliminates a major drawback of fast prime-focus imaging: cable-induced diffraction. By replacing all traditional wires crossing the light path with a single ultra-thin (1.6 mm) printed circuit board paired with a front anti-reflection baffle, it transforms messy, chaotic star artifacts into a clean, symmetrical cross-shaped diffraction pattern that rivals premium Newtonian reflectors. For perfectionists, the bracket features fine-tuning adjustments (fore/aft and left/right) for precise spike alignment.
Because USB data and 12V power travel directly through the internal traces of the PCB, no cables ever enter the light path. This creates a clean, localized hub right at the corrector plate, providing two USB 2.0 ports for your camera and accessories alongside a 12V output rated for up to 3A to safely power your front-mounted gear.
Cross Spike Version or Spike Free Version?
From an optical standpoint, the Cross Spike Version introduces minimal obstruction and can deliver slightly sharper images. If you do not like diffraction spikes, or if you need to rotate the CAA very often, the Spike-Free Version is the better choice. However, unlike a refractor, residual diffraction artifacts may still be visible in bright stars due to factors such as stress in the Schmidt corrector plate, although the results are significantly cleaner than with traditional solutions.
Patented Design Eliminates Cables
A specially designed PCB spans the optical path, completely eliminating the need for cables in the light path. The result is cleaner diffraction patterns and improved image quality, addressing one of the most common challenges faced by RASA and HyperStar users.
- Note: Photos on this page are for installation reference only. The product does not include the filters, cameras, telescopes, or other equipment shown in the images.
Pictured USB 3.0 not included with the RASA 8" model and just for attachment demonstration.
Eliminate Cable-Induced Diffraction Spikes
After dozens of design iterations and extensive testing, WandererAstro developed a spike-free design with an S-shaped PCB that is only 3–4 mm wide. RASA and HyperStar systems can now produce refractor-like, spike-free star images.
Multiple USB and Power Ports
RASA/HyperStar 6/8 models include two USB 2.0 ports and one 12V power port. The 12V port supports up to 3A; for continuous use, 2A or less is recommended (85% camera cooling power or below).
Rich Accessory
Two bracket lengths are included to support different camera body lengths and the differing back-focus requirements of RASA and HyperStar systems. Short USB and DC cables are also included.
Compatible with Dew Shield and Heater
The bracket uses a non-destructive installation design and is fully compatible with the original Celestron dew shield and most third-party dew shields, as well as the original Celestron dew heater ring.
Specifications
-
Compatible Telescopes: Celestron RASA 8-inch and Celestron C8 w/ Starizona HyperStar 8-inch
-
USB Interface: 2x USB 2.0 downstream ports
-
Power Output: 1x 12V DC barrel jack (rated up to 3A)
-
Installation Method: Non-destructive and fully reversible (mounting nano tape included)
-
Accessories Compatibility: Fully compatible with the Celestron OEM dew heater ring, Celestron dew shield, and most third-party dew shields
-
Included Cabling: Ultra-short USB and DC power patch cables for clean, localized camera connection
Other Information
- Country of Manufacture: China
- 1x Cable master
- 1x Nano mounting tape
- 2x brackets
