Please note: This ZWO Pro/Cooled camera must be powered from an external 12V DC power source with a minimum of 3 amps in order to run the TEC cooler and connect to your computer. The camera may not be recognized by a computer or operate properly if only the USB3.0 cable is connected to your computer. You can use ZWO’s 12V DC power supply, the DC Out port on an ASIAir or an external battery. These are not included with the camera.
- ZWO ASI533MM-Pro cooled monochrome astronomy camera with a 1”-format square (11.3mm x 11.3mm) Sony IMX533 CMOS sensor
- High 3008x3008 resolution (9.0 megapixels) and 3.76-micron pixel size
- Ideal for capturing high-resolution astronomical images of deep-sky objects and lunar/solar/planetary images
- Integrated two-stage TEC cooling reduces sensor temperature to 35oC below ambient to enable low-noise imaging of faint deep-sky objects
- Fast USB3.0 transfer rate of up to 20fps
- 256MB DDR3 buffer for quick and stable data transfer and reduced amp glow
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Ready to go out of the box with cables, adapters, and manual; Software and drivers available from manufacturer's website
- Compact body with 78mm diameter and weight of only 470 g (16.8 oz)

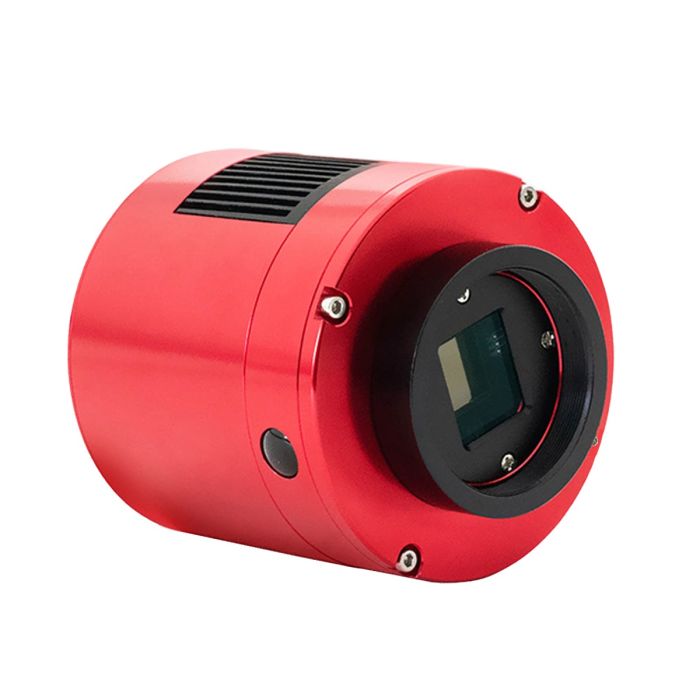

ASI533MM Pro Cooled Monochrome Astronomy Camera
Compact Cooled Astronomy Camera for Deep-Sky and Solar-System Imaging
The ZWO ASI533MM-Pro cooled monochrome astronomy camera is equipped with Sony’s CMOS IMX533 1”-format sensor with a square aspect ratio. With a resolution of 9.0 megapixels, this camera has large pixels for high signal-to-noise ratio for imaging deep-sky objects. It’s also ideal for fast, high-resolution lunar, solar, and planetary imaging. A small telescope with 400mm focal length, for example, gives a field of view of with this camera of 1.6 degrees square. A telescope with 1500mm focal length gives a field of 0.43 degrees square.
State-of-the-Art Sony Backlit IMX533 Sensor
ZWO engineered the ASI533MM-Pro camera around Sony’s IMX533 9-megapixel CMOS sensor with 16mm diagonal (11.31mmx11.31mm) with a 3008x3008 pixel array. Each pixel measures 3.76 micron on each edge. The sensor’s square format is ideal for framing many symmetric deep-sky objects such as globular and open clusters, planetary nebula, and many emission nebulae.
Sony’s back-illuminated CMOS image sensor improves sensitivity and noise reduction – the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.
With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure increases the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.The pixels have a 50000e well capacity to help you capture sharp images of bright stars without saturation. This back-illuminated sensor has a high estimated QE of 91%. Read noise is as low as 1.0e.
Zero Amp Glow Control Circuitry
Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ‘amp glow’. As the ASI533MM-Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.
DDR3 Memory Buffer and Fast Data Transfer
The ‘Pro’ designation of the camera comes from its internal 256MB DDR3 buffer for quick and stable data transfer and reduced amp glow. The USB3.0 port offers a fast 20 fps capture rate at full resolution with 14-bit ADC.
TEC Sensor Cooling and Anti-Dew Heater
The two-stage TEC cooling system brings the sensor temperature down to 35oC below ambient to keep sensor noise as low as possible, even on warm nights. The heat generated by the TEC is used to counteract the formation of dew on the front window of the camera. The camera’s TEC cooler requires 12V@3A provided with an external power supply (not included). If the camera is powered with a USB2.0 host, the external 12V power supply is also required.
Superb Low-Noise Performance
The ASI533MM-Pro camera has a dynamic range of 8 to nearly 14 stops depending on the camera gain settings. At a camera gain of 100, you get 13 stops of dynamic range with a read noise of just 1.5e. At higher gain, read noise can be as low as 1.0e which makes this an ideal camera for electronically-assisted astronomy (EAA).
USB 3.0 Data Ports and USB 2.0 Hub
The camera’s electronics, other than the cooler, are fully powered through the USB3.0 port. The TEC cooler requires 12V@3A provided with an external power supply (not included).
The ASI533MM-Pro incorporates a USB2.0 hub for powering accessories such as a guide camera and electronic focuser.
The camera has a diameter of 78mm and weighs 470 grams (16.8 oz). It comes with a padded carrying bag, M42-M48 adapter, M42 21mm extender and T2-M48 16.5mm extender, 2” cover, USB3.0 and USB2.0 cables, and a quick-start guide.
This camera can be configured with the following connections for attachment to telescopes and imaging accessories:
- 1.25” nosepiece
- 2” nosepiece (composed of 2 or 3 included adapters)
- Female T/T2 thread (M42x0.75)
- Male T/T2 thread (M42x0.75)
- Female M28.5x0.6 thread via 1.25" nosepiece
ZWO has phased out software CDs, but the camera comes with instructions to help you download the required control software and drivers directly from the ZWO website.
ASI533MM-Pro – ASI183MM-Pro Comparision
The ASI533MM-Pro features SONY’s latest back illuminated IMX533 sensor, with a 1-inch square, 9.07MP sensor that is ideal for astronomical photography needs and can be considered as the latest iteration of the venerable ASI183MM-Pro.
As you would expect this latest generation camera not only retains key features of the ASI183 series such as an attractive QE figure, high frame rate and along with other excellent characteristics of the ASI183 cameras, but also now includes new and improved features such as zero amp glow, extreme low read out noise (as low as 1.0e), 3.76 microns pixel size and an improved 2-stage TEC cooler giving enhanced cooling capabilities.
Specifications
- Sensor: Sony-IMX533CLK-D
- Diagonal: 15.968mm
- Resolution: 9 Mega Pixel 3008*3008
- Pixel Size: 3.76μm
- Max FPS at full resolution: 20fps
- Shutter: Rolling shutter
- Exposure Range: 32μs-2000s
- ROI: Supported
- Read Noise: 1.0-3.8e
- QE peak: 91%
- Full well: 50000e
- ADC:14bit
- Interface: USB 3.0 Type-B
- Adaptor: M42X0.75
- Protect window: D32-2-AR
- Dimensions: 78mm
- Weight: 470g
- Back Focus Distance: 17.5mm
- Delta T: 30°C-35°C below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C—50°C
- Storage Temperature: -10°C—60°C
- Working Relative Humidity: 0%—80%
- Storage Relative Humidity: 20%—95%
- Max FPS at full resolution:
- 14Bit ADC
- 3008×3008 19.88fps
- 1920×1080 54.11fps
- 1280×720 79.74fps
- 640×480 116.55ps
- 320×240 216.45fps
- more resolutions are in software, support customize resolution.
Other Information
- Country of Manufacture: China
ASI533MM Pro Cooled Monochrome Astronomy Camera
Compact Cooled Astronomy Camera for Deep-Sky and Solar-System Imaging
The ZWO ASI533MM-Pro cooled monochrome astronomy camera is equipped with Sony’s CMOS IMX533 1”-format sensor with a square aspect ratio. With a resolution of 9.0 megapixels, this camera has large pixels for high signal-to-noise ratio for imaging deep-sky objects. It’s also ideal for fast, high-resolution lunar, solar, and planetary imaging. A small telescope with 400mm focal length, for example, gives a field of view of with this camera of 1.6 degrees square. A telescope with 1500mm focal length gives a field of 0.43 degrees square.
State-of-the-Art Sony Backlit IMX533 Sensor
ZWO engineered the ASI533MM-Pro camera around Sony’s IMX533 9-megapixel CMOS sensor with 16mm diagonal (11.31mmx11.31mm) with a 3008x3008 pixel array. Each pixel measures 3.76 micron on each edge. The sensor’s square format is ideal for framing many symmetric deep-sky objects such as globular and open clusters, planetary nebula, and many emission nebulae.
Sony’s back-illuminated CMOS image sensor improves sensitivity and noise reduction – the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.
With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure increases the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.The pixels have a 50000e well capacity to help you capture sharp images of bright stars without saturation. This back-illuminated sensor has a high estimated QE of 91%. Read noise is as low as 1.0e.
Zero Amp Glow Control Circuitry
Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ‘amp glow’. As the ASI533MM-Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.
DDR3 Memory Buffer and Fast Data Transfer
The ‘Pro’ designation of the camera comes from its internal 256MB DDR3 buffer for quick and stable data transfer and reduced amp glow. The USB3.0 port offers a fast 20 fps capture rate at full resolution with 14-bit ADC.
TEC Sensor Cooling and Anti-Dew Heater
The two-stage TEC cooling system brings the sensor temperature down to 35oC below ambient to keep sensor noise as low as possible, even on warm nights. The heat generated by the TEC is used to counteract the formation of dew on the front window of the camera. The camera’s TEC cooler requires 12V@3A provided with an external power supply (not included). If the camera is powered with a USB2.0 host, the external 12V power supply is also required.
Superb Low-Noise Performance
The ASI533MM-Pro camera has a dynamic range of 8 to nearly 14 stops depending on the camera gain settings. At a camera gain of 100, you get 13 stops of dynamic range with a read noise of just 1.5e. At higher gain, read noise can be as low as 1.0e which makes this an ideal camera for electronically-assisted astronomy (EAA).
USB 3.0 Data Ports and USB 2.0 Hub
The camera’s electronics, other than the cooler, are fully powered through the USB3.0 port. The TEC cooler requires 12V@3A provided with an external power supply (not included).
The ASI533MM-Pro incorporates a USB2.0 hub for powering accessories such as a guide camera and electronic focuser.
The camera has a diameter of 78mm and weighs 470 grams (16.8 oz). It comes with a padded carrying bag, M42-M48 adapter, M42 21mm extender and T2-M48 16.5mm extender, 2” cover, USB3.0 and USB2.0 cables, and a quick-start guide.
This camera can be configured with the following connections for attachment to telescopes and imaging accessories:
- 1.25” nosepiece
- 2” nosepiece (composed of 2 or 3 included adapters)
- Female T/T2 thread (M42x0.75)
- Male T/T2 thread (M42x0.75)
- Female M28.5x0.6 thread via 1.25" nosepiece
ZWO has phased out software CDs, but the camera comes with instructions to help you download the required control software and drivers directly from the ZWO website.
ASI533MM-Pro – ASI183MM-Pro Comparision
The ASI533MM-Pro features SONY’s latest back illuminated IMX533 sensor, with a 1-inch square, 9.07MP sensor that is ideal for astronomical photography needs and can be considered as the latest iteration of the venerable ASI183MM-Pro.
As you would expect this latest generation camera not only retains key features of the ASI183 series such as an attractive QE figure, high frame rate and along with other excellent characteristics of the ASI183 cameras, but also now includes new and improved features such as zero amp glow, extreme low read out noise (as low as 1.0e), 3.76 microns pixel size and an improved 2-stage TEC cooler giving enhanced cooling capabilities.
Specifications
- Sensor: Sony-IMX533CLK-D
- Diagonal: 15.968mm
- Resolution: 9 Mega Pixel 3008*3008
- Pixel Size: 3.76μm
- Max FPS at full resolution: 20fps
- Shutter: Rolling shutter
- Exposure Range: 32μs-2000s
- ROI: Supported
- Read Noise: 1.0-3.8e
- QE peak: 91%
- Full well: 50000e
- ADC:14bit
- Interface: USB 3.0 Type-B
- Adaptor: M42X0.75
- Protect window: D32-2-AR
- Dimensions: 78mm
- Weight: 470g
- Back Focus Distance: 17.5mm
- Delta T: 30°C-35°C below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C—50°C
- Storage Temperature: -10°C—60°C
- Working Relative Humidity: 0%—80%
- Storage Relative Humidity: 20%—95%
- Max FPS at full resolution:
- 14Bit ADC
- 3008×3008 19.88fps
- 1920×1080 54.11fps
- 1280×720 79.74fps
- 640×480 116.55ps
- 320×240 216.45fps
- more resolutions are in software, support customize resolution.
- Camera body
- Camera bag
- 1.25" Nosepiece
- 2x USB 2.0 Cable (0.5m)
- USB 3.0 Cable (2m)
- Quick guide
- T2-M48 Extender (16.5mm)
- T2 Extender (21mm)
- M42-M48 Adapter
- T2-1.25" Adapter
- 4x Spacers:
- 0.5mm
- 2x 0.2mm
- 0.1mm
- Cover
