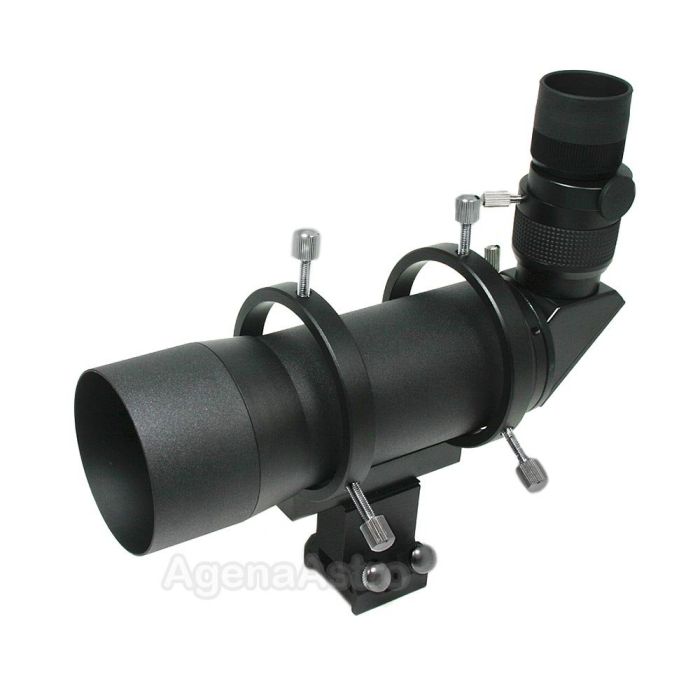

APM 10x60mm Right Angle Correct Image Finder Scope with Bracket
Sku:
ZZOFIN-ZZAM-60-FIND-DIAG-SET
Mfg #:
APM-60-FIND-DIAG-SET
The price depends on the chosen options
Final product price
Discontinued at Agena
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
SKU:
ZZOFIN-ZZAM-60-FIND-DIAG-SET
Mfg #:
APM-60-FIND-DIAG-SET
Important Note
This set contains the following products:
Description
Description
This is a high quality APM 60 mm right-angle finderscope with a new larger Vixen/Synta-style base with wider contact surface (see additional details below). The included 90° prism provides a correct (upright and unreversed) image. The optics and the prism are multicoated.
Included is a 1.25" 24mm crosshair eyepiece with 55° apparent field of view. This will provide an approx. magnification of 10x (9.5x to be precise) with an approx. 5.5° true field of view. Optionally, you can get an illuminator for the reticle eyepiece.
Delivery contains:
- Finderscope 60 mm
- Finder bracket with Vixen/Synta-syle base
- 1.25" 90° erect image prism diagonal
- Crosshair eyepiece 24 mm 55°
Specifications:
- Connection to eyepiece: 1 1/4"
- Connection to telescope: Finder bracket with Quick Clamp
- Coating: Fully multicoated
- Housing material: Aluminum
- Aperture: 60 mm
- Approx. magnification: 10 x
- Lenses: 2 Lenses
- Optical design: Achromat
- Type of viewfinder: 90° Finderscope
- Focal length: 228 mm
- Length: 240 mm
- Diameter: 63 mm
- Accessory: incl. Bracket with Quick Clamp and 26 mm Crosshair Eyepiece
- Weight: X oz.
Agena Note: The finder base included with this item is the same one as our XFURB base. Please review the details at this link to see if this included base with fit on your telescope or not. In most cases, please be prepared to provide your own machine screws to mount this on your telescope as the included screws may or may not work for your set-up.
This is a high quality APM 60 mm right-angle finderscope with a new larger Vixen/Synta-style base with wider contact surface (see additional details below). The included 90° prism provides a correct (upright and unreversed) image. The optics and the prism are multicoated.
Included is a 1.25" 24mm crosshair eyepiece with 55° apparent field of view. This will provide an approx. magnification of 10x (9.5x to be precise) with an approx. 5.5° true field of view. Optionally, you can get an illuminator for the reticle eyepiece.
Delivery contains:
- Finderscope 60 mm
- Finder bracket with Vixen/Synta-syle base
- 1.25" 90° erect image prism diagonal
- Crosshair eyepiece 24 mm 55°
Specifications:
- Connection to eyepiece: 1 1/4"
- Connection to telescope: Finder bracket with Quick Clamp
- Coating: Fully multicoated
- Housing material: Aluminum
- Aperture: 60 mm
- Approx. magnification: 10 x
- Lenses: 2 Lenses
- Optical design: Achromat
- Type of viewfinder: 90° Finderscope
- Focal length: 228 mm
- Length: 240 mm
- Diameter: 63 mm
- Accessory: incl. Bracket with Quick Clamp and 26 mm Crosshair Eyepiece
- Weight: X oz.
Agena Note: The finder base included with this item is the same one as our XFURB base. Please review the details at this link to see if this included base with fit on your telescope or not. In most cases, please be prepared to provide your own machine screws to mount this on your telescope as the included screws may or may not work for your set-up.
