- Low-profile 3-inch focuser ideal for limited back focus setups.
- Designed to fit Celestron EdgeHD OTAs with excellent accessory clearance.
- FocusLynx compatible with optional WiFi and hand controller support.
- Multiple drawtube options for cameras, guiders, and correctors.

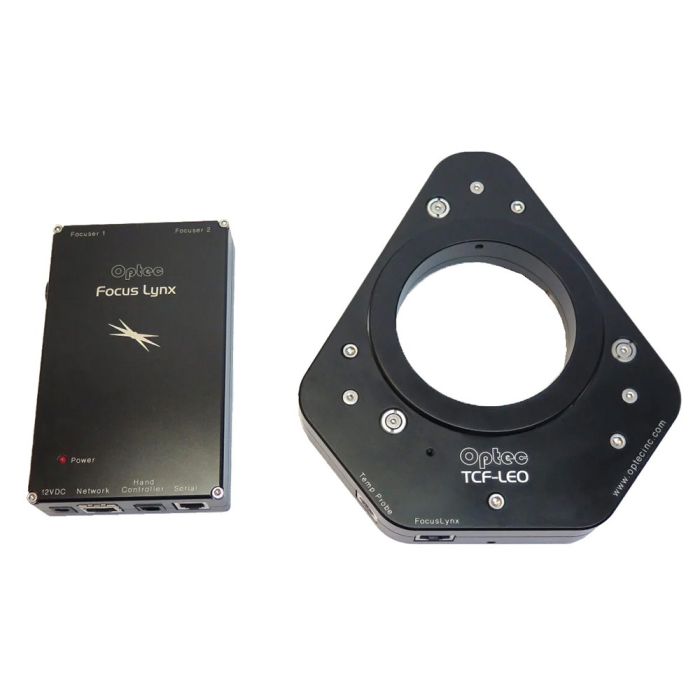

OPTEC TCF-Leo Low Profile Focuser with FocusLynx Controller
The Optec TCF-Leo is a low-profile yet exceptionally robust 3-inch focuser designed for telescope systems where back focus space is limited. With a body width similar to a typical 1.25-inch eyepiece, the TCF-Leo is an excellent focusing solution for the Celestron EdgeHD series and other telescopes with tight flange-to-focus distances. Powered by Optec’s proven FocusLynx control system, it delivers precise electronic focusing and can be expanded to control a second focuser, with optional WiFi and hand controller accessories available for added convenience. Standard configuration includes the camera-side OPTEC-3000 3-inch drawtube, providing a solid, wide-aperture connection for imaging accessories.
Its uniquely shaped housing is engineered to fit neatly between the lock and focus knobs of the Celestron EdgeHD 11 OTA, while the compact 2.2-inch (55 mm) center-to-edge profile offers excellent clearance for large cameras, filter wheels, and accessories. The TCF-Leo also pairs exceptionally well with the Innovation Foresight On-Axis Guider and can mount directly to the 3-inch port of the Optec Perseus Instrument Selector for ultra-fine focus control of large-format imaging systems. Additional drawtube options are available, including a DSI 3.5-inch receiver and a 3-inch split clamp for Wynne Correctors, allowing you to tailor the system to your exact setup.
Specifications:
TCF-Leo
- Overall Thickness: 1.25 in (31.8 mm) to 1.6 in (40.6 mm)
- Focuser Travel: 0.35 in (8.9 mm)
- Focuser Midpoint: 1.425 in (36.2 mm)
- Total Step Travel: 112,000 steps
- Step Resolution: 0.08 microns
- Weight: 1lb. 14 oz. (0.85 kg)
- Payload Capacity: 20-lbs. (9 kg)
- Telescope-side Mount: OPTEC-3600 dovetail
- Camera-side Mount: OPTEC-3000 3-inch drawtube
- Control System: FocusLynx Controller (included if option selected)
FocusLynx Controller Specifications
- Stepper Motor Control: bipolar and unipolar stepper motors
- PC Connectivity: USB/Serial, Ethernet, or optional 802.11 WiFi
- Hand Control: Optional 2-button with Digital Read-Out
- WiFi Connection: Optional 802.11b/g compatible
- Second Stepper: Optional plug-in daughter board
- Input Power: 12VDC univeral power supply (110 to 230VAC input)
- Alternative Power: Field battery voltage (13.8VDC) with optional automotive cigarette lighter plug
- Software Drivers: ASCOM local server, X2 native drivers for TheSky X
FocusLynx Port Connections:
- Focuser 1: RJ45 socket for standard Cat-5e/Cat-6 to focuser
- Focuser 2: Optional second stepper board for RJ45 socket
- Power: 12VDC input, 2.5 x 5.5 mm plug, center pin positive
- Network: Standard RJ45 Ethernet socket
- Hand Controller: RJ22 socket for standard telephone handset cord
- Serial: RJ12 socket for Optec USB/Serial cable
Other Information
- Country of Manufacture: United States
OPTEC TCF-Leo Low Profile Focuser with FocusLynx Controller
The Optec TCF-Leo is a low-profile yet exceptionally robust 3-inch focuser designed for telescope systems where back focus space is limited. With a body width similar to a typical 1.25-inch eyepiece, the TCF-Leo is an excellent focusing solution for the Celestron EdgeHD series and other telescopes with tight flange-to-focus distances. Powered by Optec’s proven FocusLynx control system, it delivers precise electronic focusing and can be expanded to control a second focuser, with optional WiFi and hand controller accessories available for added convenience. Standard configuration includes the camera-side OPTEC-3000 3-inch drawtube, providing a solid, wide-aperture connection for imaging accessories.
Its uniquely shaped housing is engineered to fit neatly between the lock and focus knobs of the Celestron EdgeHD 11 OTA, while the compact 2.2-inch (55 mm) center-to-edge profile offers excellent clearance for large cameras, filter wheels, and accessories. The TCF-Leo also pairs exceptionally well with the Innovation Foresight On-Axis Guider and can mount directly to the 3-inch port of the Optec Perseus Instrument Selector for ultra-fine focus control of large-format imaging systems. Additional drawtube options are available, including a DSI 3.5-inch receiver and a 3-inch split clamp for Wynne Correctors, allowing you to tailor the system to your exact setup.
Specifications:
TCF-Leo
- Overall Thickness: 1.25 in (31.8 mm) to 1.6 in (40.6 mm)
- Focuser Travel: 0.35 in (8.9 mm)
- Focuser Midpoint: 1.425 in (36.2 mm)
- Total Step Travel: 112,000 steps
- Step Resolution: 0.08 microns
- Weight: 1lb. 14 oz. (0.85 kg)
- Payload Capacity: 20-lbs. (9 kg)
- Telescope-side Mount: OPTEC-3600 dovetail
- Camera-side Mount: OPTEC-3000 3-inch drawtube
- Control System: FocusLynx Controller (included if option selected)
FocusLynx Controller Specifications
- Stepper Motor Control: bipolar and unipolar stepper motors
- PC Connectivity: USB/Serial, Ethernet, or optional 802.11 WiFi
- Hand Control: Optional 2-button with Digital Read-Out
- WiFi Connection: Optional 802.11b/g compatible
- Second Stepper: Optional plug-in daughter board
- Input Power: 12VDC univeral power supply (110 to 230VAC input)
- Alternative Power: Field battery voltage (13.8VDC) with optional automotive cigarette lighter plug
- Software Drivers: ASCOM local server, X2 native drivers for TheSky X
FocusLynx Port Connections:
- Focuser 1: RJ45 socket for standard Cat-5e/Cat-6 to focuser
- Focuser 2: Optional second stepper board for RJ45 socket
- Power: 12VDC input, 2.5 x 5.5 mm plug, center pin positive
- Network: Standard RJ45 Ethernet socket
- Hand Controller: RJ22 socket for standard telephone handset cord
- Serial: RJ12 socket for Optec USB/Serial cable
- 1x TCF-Leo low profile focuser,
- 1x FocusLynx control hub,
- 1x Precision temperature probe,
- 1x USB/Serial communication cable,
- 1x Cat-5e or Cat-6 Ethernet cable x 2
- 1x 12VDC power supply with cord,
- 1x 5/64” T-handle hex key tool.
