Takahashi E-130 Epsilon 130mm f/3.3 ED Astrograph OTA
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- The f/3.3 shortens exposure times with brighter, more saturated wide-field images.
- Minimizes coma and spherical aberration for sharp stars edge to edge.
- Delivers improved sharpness and a large 44 mm image circle for modern sensors.
- Ideal for comets, extended nebulae, and sweeping deep-sky targets.
Small-Aperture Model, Compact and User-Friendly in Every Aspect!
The Epsilon series astrographs are imaging machines, engineered for jaw-dropping astrophotography! At the heart of each Epsilon is Takahashi’s proprietary optical design, featuring a hyperbolic concave primary mirror paired with a two-element corrector lens. This advanced combination virtually eliminates spherical aberration and coma, delivering pinpoint stars across the frame. Compared to traditional Schmidt camera designs, chromatic aberration is reduced by nearly 50%, even at wide viewing angles—so stars stay sharp and color-true from center to edge.
The E-130D builds on the legacy of the original Epsilon while introducing a newly developed digital corrector for modern sensors. This upgrade boosts overall sharpness and reduces spot size by one-third, matching the edge performance of the larger E-180 and producing a generous 44 mm image circle. An offset secondary mirror further improves illumination, ensuring uniform brightness across the entire field. With a massive 5.9° field of view, ultra-fast f/3.3 optics, and a compact 430 mm focal length, the ε-130D is a dream setup for wide-field targets like comets, sprawling nebulae, and rich star fields—shortening exposure times while enhancing color saturation and fine detail. Note: Price includes OTA only. Mount, tripod, tube holder, and finder are sold separately.
NGC1333 Captured with Epsilon-130D, ZWO ASI2600MM, and Chroma LRGB Filters by astrophotographer Juan Lopez.

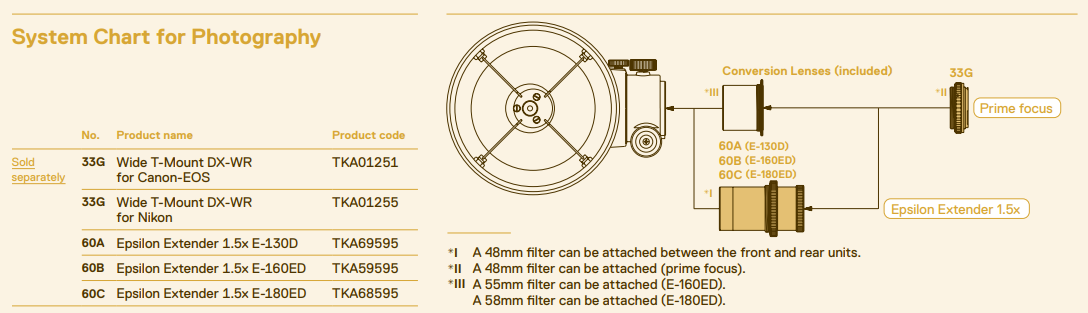

System Chart for Photography
Additional Specifications
- Optical design: Hyperbolic Astrograph
- Model: Epsilon-130D
- Focal ratio: f/3.3
- Aperture: 130 mm
- Focal length: 430 mm
- External diameter: 6.3 in (166 mm)
- Front end diameter: Φ 7.4 in (188 mm)
- Tube length: 18.1 in (460 mm)
- Tube weight: 10.8 lb (4.9 kg)
- Secondary mirror obstruction diameter: 64 mm
- Effective focal ratio: f/3.8
Other Information
- Country of Manufacture: Japan
Small-Aperture Model, Compact and User-Friendly in Every Aspect!
The Epsilon series astrographs are imaging machines, engineered for jaw-dropping astrophotography! At the heart of each Epsilon is Takahashi’s proprietary optical design, featuring a hyperbolic concave primary mirror paired with a two-element corrector lens. This advanced combination virtually eliminates spherical aberration and coma, delivering pinpoint stars across the frame. Compared to traditional Schmidt camera designs, chromatic aberration is reduced by nearly 50%, even at wide viewing angles—so stars stay sharp and color-true from center to edge.
The E-130D builds on the legacy of the original Epsilon while introducing a newly developed digital corrector for modern sensors. This upgrade boosts overall sharpness and reduces spot size by one-third, matching the edge performance of the larger E-180 and producing a generous 44 mm image circle. An offset secondary mirror further improves illumination, ensuring uniform brightness across the entire field. With a massive 5.9° field of view, ultra-fast f/3.3 optics, and a compact 430 mm focal length, the ε-130D is a dream setup for wide-field targets like comets, sprawling nebulae, and rich star fields—shortening exposure times while enhancing color saturation and fine detail. Note: Price includes OTA only. Mount, tripod, tube holder, and finder are sold separately.
NGC1333 Captured with Epsilon-130D, ZWO ASI2600MM, and Chroma LRGB Filters by astrophotographer Juan Lopez.
System Chart for Photography
Additional Specifications
- Optical design: Hyperbolic Astrograph
- Model: Epsilon-130D
- Focal ratio: f/3.3
- Aperture: 130 mm
- Focal length: 430 mm
- External diameter: 6.3 in (166 mm)
- Front end diameter: Φ 7.4 in (188 mm)
- Tube length: 18.1 in (460 mm)
- Tube weight: 10.8 lb (4.9 kg)
- Secondary mirror obstruction diameter: 64 mm
- Effective focal ratio: f/3.8
| Manufacturer | Takahashi |
|---|---|
| Telescope Focal Length | 401 - 500mm |
- 1x Optical Tube Assembly
- 1x Visual adapter TKP69005
- 1x Coupling (S) TKP00103
- 1x Corrector lens TKP59580
- The f/3.3 shortens exposure times with brighter, more saturated wide-field images.
- Minimizes coma and spherical aberration for sharp stars edge to edge.
- Delivers improved sharpness and a large 44 mm image circle for modern sensors.
- Ideal for comets, extended nebulae, and sweeping deep-sky targets.
Small-Aperture Model, Compact and User-Friendly in Every Aspect!
The Epsilon series astrographs are imaging machines, engineered for jaw-dropping astrophotography! At the heart of each Epsilon is Takahashi’s proprietary optical design, featuring a hyperbolic concave primary mirror paired with a two-element corrector lens. This advanced combination virtually eliminates spherical aberration and coma, delivering pinpoint stars across the frame. Compared to traditional Schmidt camera designs, chromatic aberration is reduced by nearly 50%, even at wide viewing angles—so stars stay sharp and color-true from center to edge.
The E-130D builds on the legacy of the original Epsilon while introducing a newly developed digital corrector for modern sensors. This upgrade boosts overall sharpness and reduces spot size by one-third, matching the edge performance of the larger E-180 and producing a generous 44 mm image circle. An offset secondary mirror further improves illumination, ensuring uniform brightness across the entire field. With a massive 5.9° field of view, ultra-fast f/3.3 optics, and a compact 430 mm focal length, the ε-130D is a dream setup for wide-field targets like comets, sprawling nebulae, and rich star fields—shortening exposure times while enhancing color saturation and fine detail. Note: Price includes OTA only. Mount, tripod, tube holder, and finder are sold separately.
NGC1333 Captured with Epsilon-130D, ZWO ASI2600MM, and Chroma LRGB Filters by astrophotographer Juan Lopez.
System Chart for Photography
Additional Specifications
- Optical design: Hyperbolic Astrograph
- Model: Epsilon-130D
- Focal ratio: f/3.3
- Aperture: 130 mm
- Focal length: 430 mm
- External diameter: 6.3 in (166 mm)
- Front end diameter: Φ 7.4 in (188 mm)
- Tube length: 18.1 in (460 mm)
- Tube weight: 10.8 lb (4.9 kg)
- Secondary mirror obstruction diameter: 64 mm
- Effective focal ratio: f/3.8
Other Information
- Country of Manufacture: Japan
| Manufacturer | Takahashi |
|---|---|
| Telescope Focal Length | 401 - 500mm |
- 1x Optical Tube Assembly
- 1x Visual adapter TKP69005
- 1x Coupling (S) TKP00103
- 1x Corrector lens TKP59580
Takahashi E-130 Epsilon 130mm f/3.3 ED Astrograph OTA
