- 150 mm f/7.3 apochromatic triplet with dual ED elements for exceptional color correction
- 4" rack-and-pinion focuser with 7:1 fine focus and integrated 360° camera angle adjuster
- Optimized for visual observing and full-frame astrophotography w/ optional Takahashi correctors
- Retractable dew shield and included tube weight for convenient transport and balanced setups

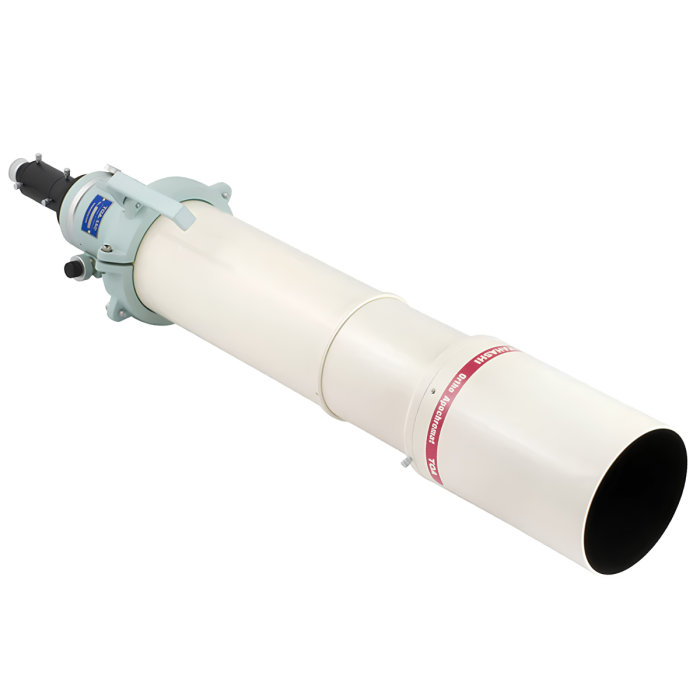

Takahashi TOA-150B Refractor
The Takahashi TOA-150B is a premium 150 mm f/7.3 apochromatic triplet refractor designed to deliver uncompromising performance for both visual astronomy and astrophotography. Its advanced three-element objective features ED glass in both the front and rear lens elements, virtually eliminating spherical aberration while achieving outstanding color correction across the entire visible spectrum. The result is razor-sharp, high-contrast views with pinpoint stars and exceptional image fidelity.
Built for demanding observers and imagers, the TOA-150B features a precision 4-inch rack-and-pinion focuser with a 7:1 fine-focus reduction, a built-in 360° camera angle adjuster, and a retractable dew shield for easier transport. It is fully compatible with Takahashi's dedicated line of flatteners, reducers, and extenders—including the optional 67-series flattener, which supports an impressive 90 mm image circle for large-format imaging systems. An included tube weight helps balance heavy imaging or visual accessories, making the TOA-150B a versatile platform for serious astronomical observation. Please note: Tube rings, finder scope, mount, and tripod are not included.
Specifications
- Optical Design: Apochromatic Triplet Refractor
- Aperture: 150 mm (5.9 in)
- Focal Length: 1100 mm
- Focal Ratio: f/7.3
- Objective Lens: Three-element apochromatic design with dual ED glass elements
- Color Correction: Focal shift less than ±0.01 mm across 436–656 nm
- Focuser: 4 in Rack-and-Pinion
- Fine Focus: 7:1 reduction
- Camera Rotator: 360° Camera Angle Adjuster (CAA)
- Dew Shield: Retractable
- Weight:
- 42.7 lb (20 kg) OTA
- 52.71 lb (24 kg) w/ tube weight
- Max Image Circle (w/ optional 67-series flattener): 90 mm
- Optical Tube Length (Retracted): 1,326.5 mm (52.2 in)
- Optical Tube Length (Without Rear Accessories): 1,110 mm (43.7 in)
- Optical Tube Length (Main Tube Only): 952.5 mm (37.5 in)
- Lens Cell Diameter: 207 mm (8.1 in)
- Main Tube Diameter: 179 mm (7.0 in)
- Retractable Dew Shield Length: 160 mm (6.3 in)
- Rear Accessory Extension: 214 mm (8.4 in)
- Rear Accessory Section: 157.5 mm (6.2 in)
- Rear Adapter Length: 56.5 mm (2.2 in)

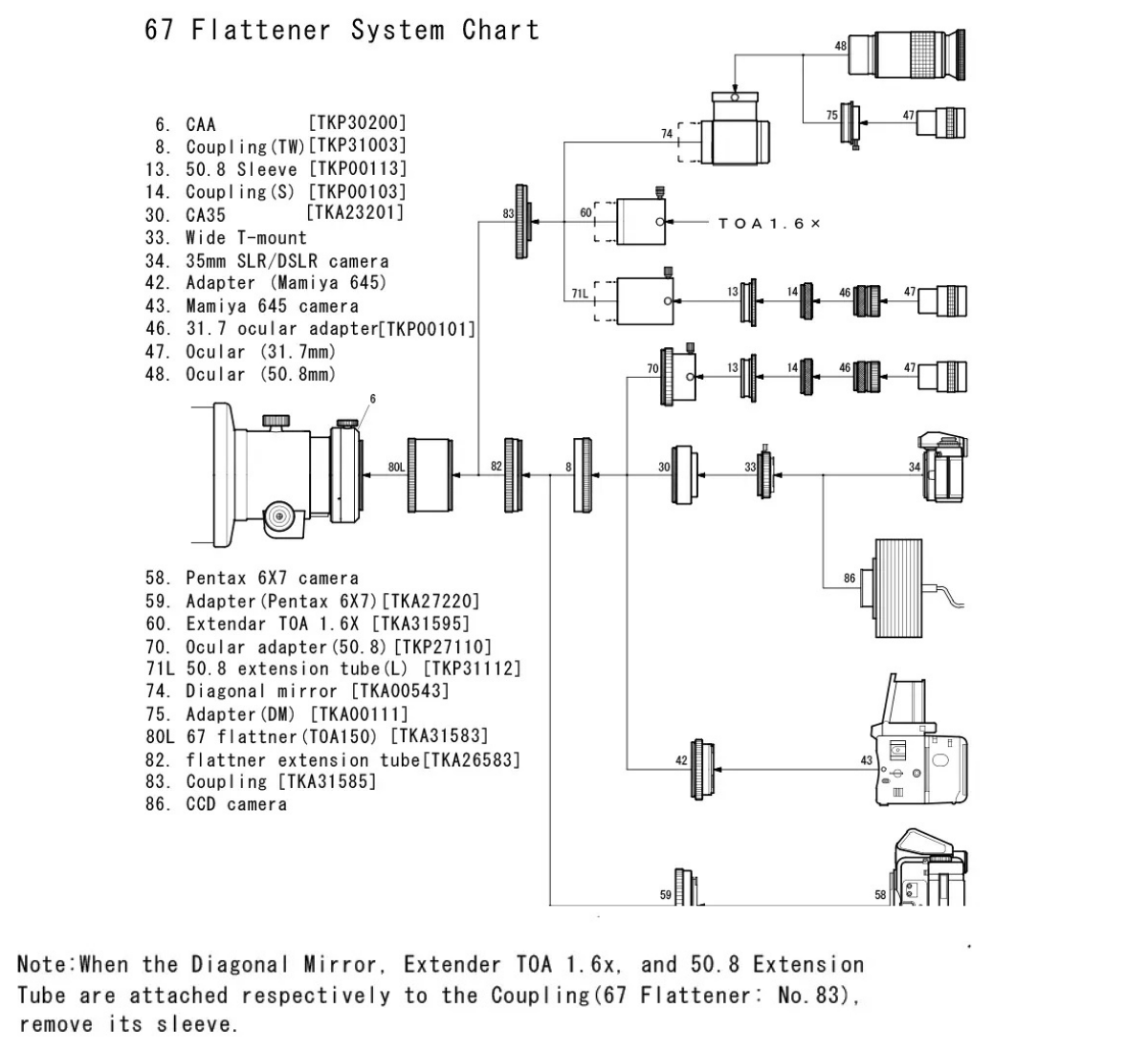

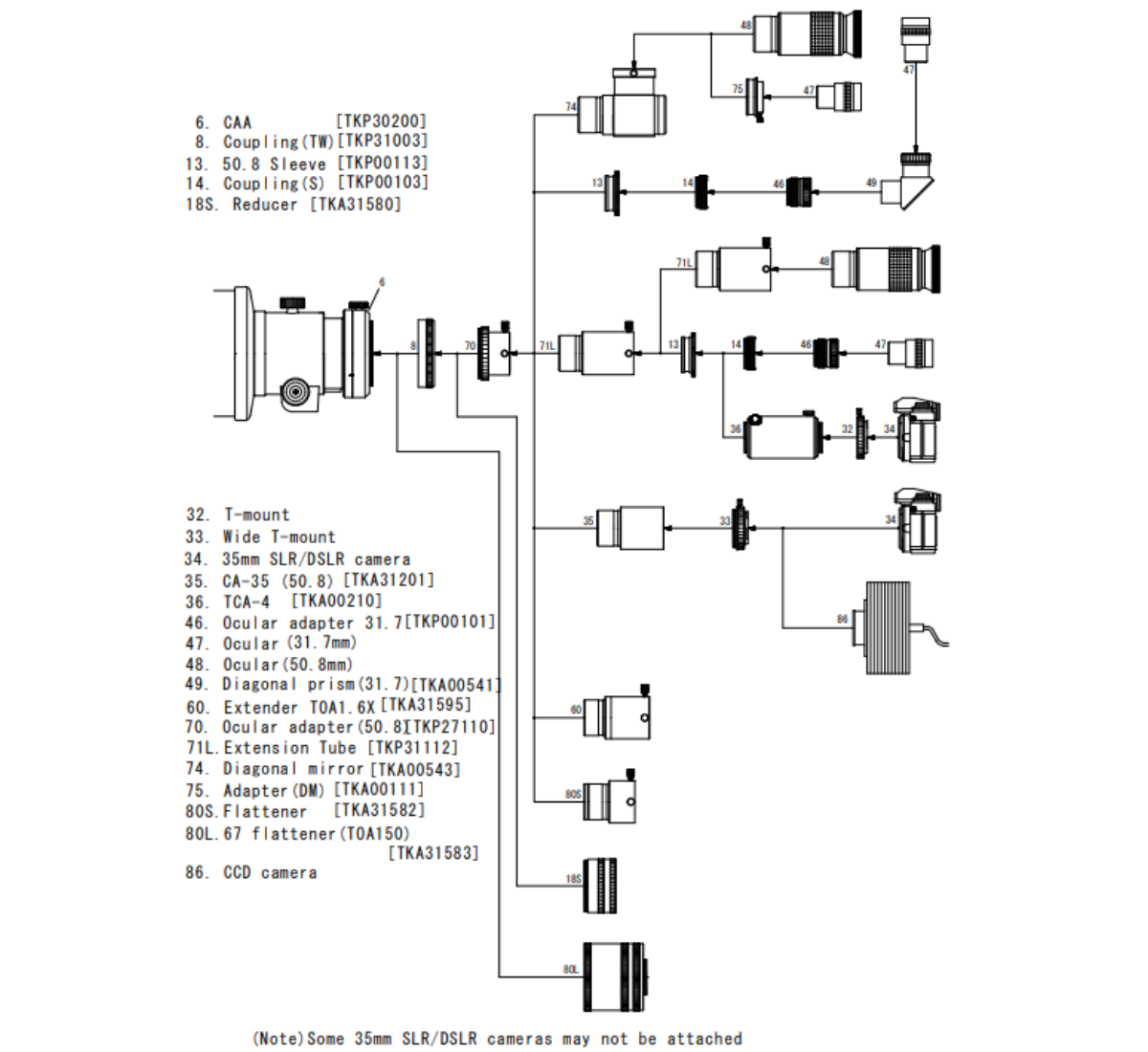

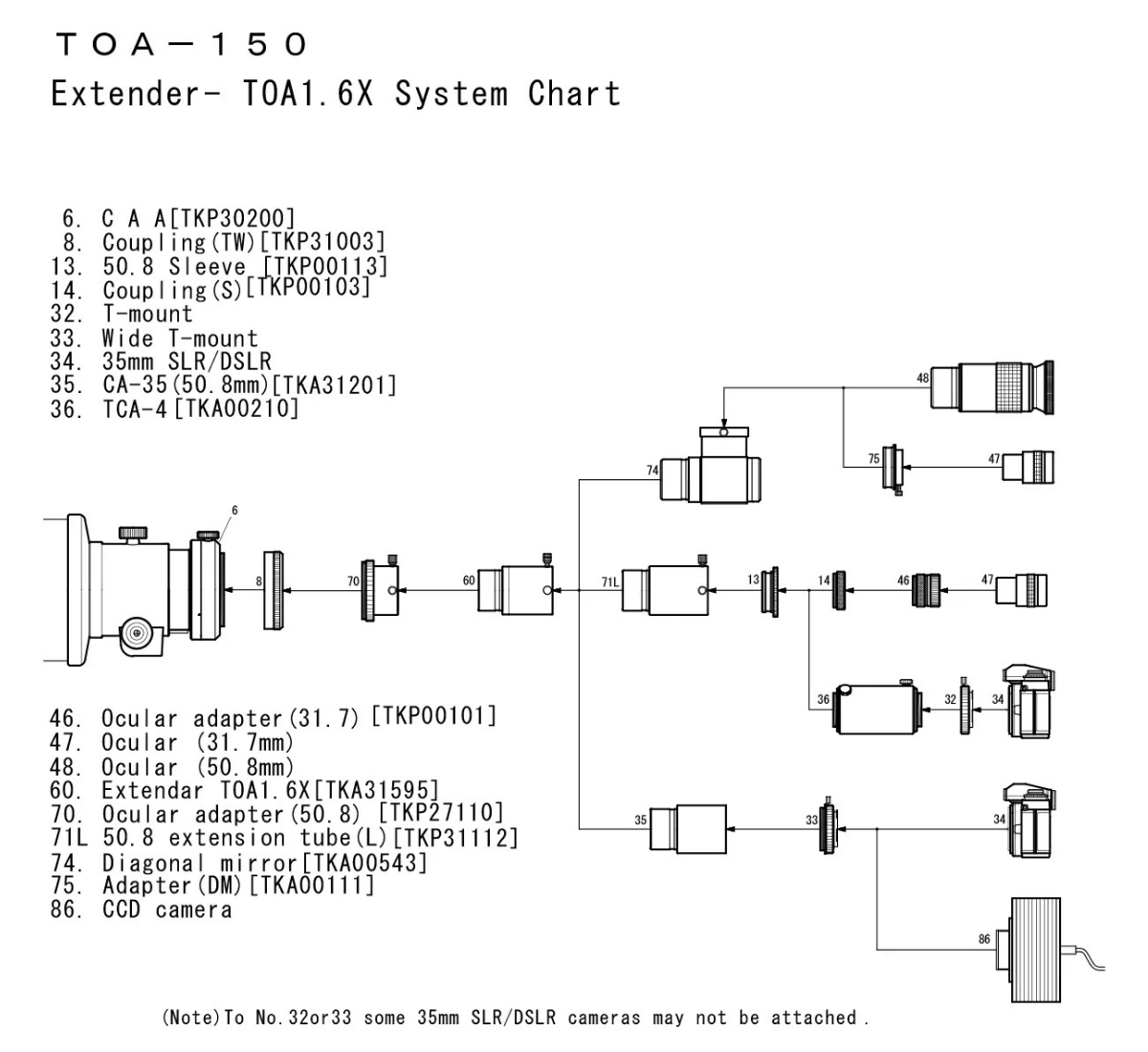

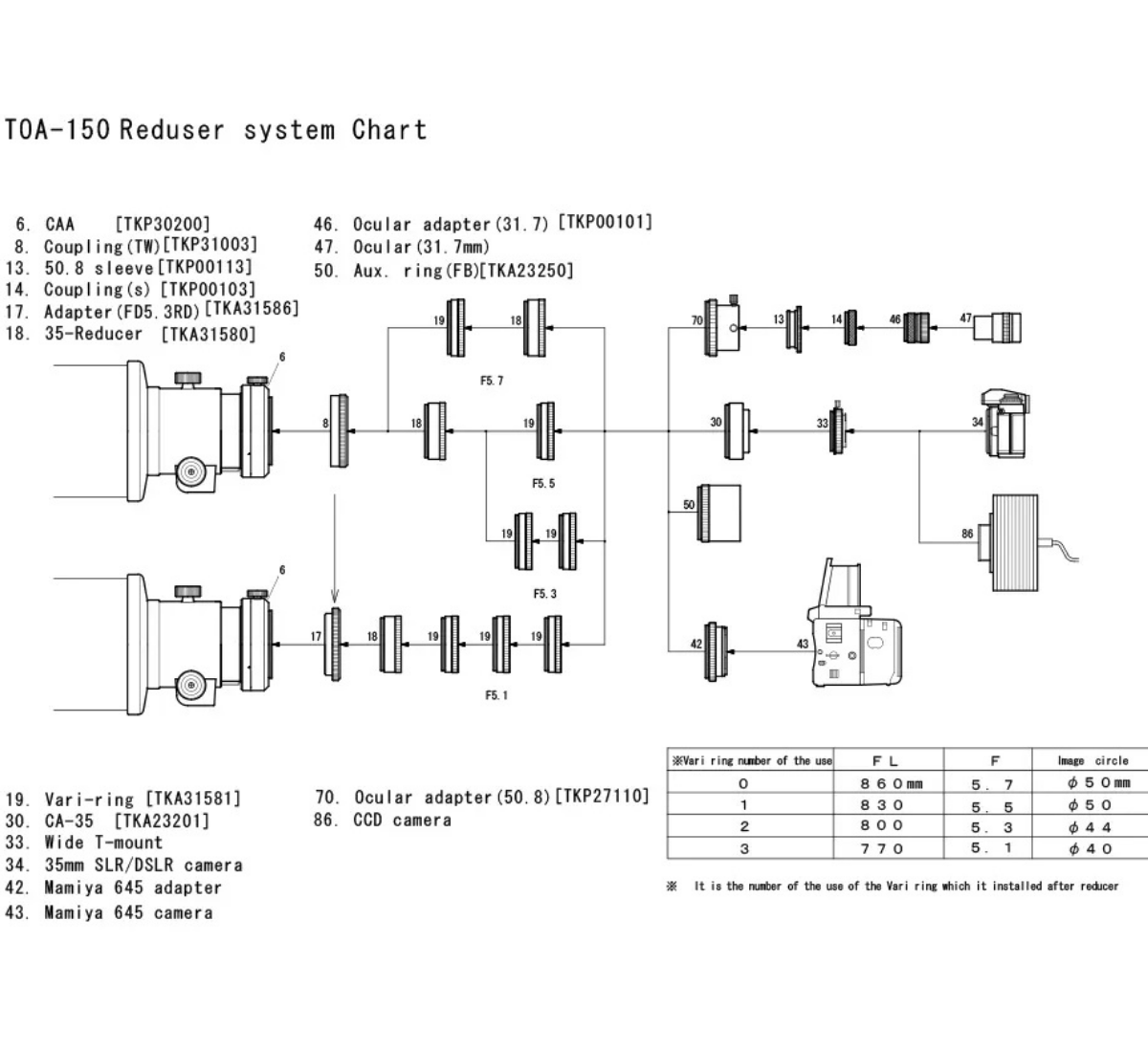

System Charts








Other Information
- Country of Manufacture: Japan
Takahashi TOA-150B Refractor
The Takahashi TOA-150B is a premium 150 mm f/7.3 apochromatic triplet refractor designed to deliver uncompromising performance for both visual astronomy and astrophotography. Its advanced three-element objective features ED glass in both the front and rear lens elements, virtually eliminating spherical aberration while achieving outstanding color correction across the entire visible spectrum. The result is razor-sharp, high-contrast views with pinpoint stars and exceptional image fidelity.
Built for demanding observers and imagers, the TOA-150B features a precision 4-inch rack-and-pinion focuser with a 7:1 fine-focus reduction, a built-in 360° camera angle adjuster, and a retractable dew shield for easier transport. It is fully compatible with Takahashi's dedicated line of flatteners, reducers, and extenders—including the optional 67-series flattener, which supports an impressive 90 mm image circle for large-format imaging systems. An included tube weight helps balance heavy imaging or visual accessories, making the TOA-150B a versatile platform for serious astronomical observation. Please note: Tube rings, finder scope, mount, and tripod are not included.
Specifications
- Optical Design: Apochromatic Triplet Refractor
- Aperture: 150 mm (5.9 in)
- Focal Length: 1100 mm
- Focal Ratio: f/7.3
- Objective Lens: Three-element apochromatic design with dual ED glass elements
- Color Correction: Focal shift less than ±0.01 mm across 436–656 nm
- Focuser: 4 in Rack-and-Pinion
- Fine Focus: 7:1 reduction
- Camera Rotator: 360° Camera Angle Adjuster (CAA)
- Dew Shield: Retractable
- Weight:
- 42.7 lb (20 kg) OTA
- 52.71 lb (24 kg) w/ tube weight
- Max Image Circle (w/ optional 67-series flattener): 90 mm
- Optical Tube Length (Retracted): 1,326.5 mm (52.2 in)
- Optical Tube Length (Without Rear Accessories): 1,110 mm (43.7 in)
- Optical Tube Length (Main Tube Only): 952.5 mm (37.5 in)
- Lens Cell Diameter: 207 mm (8.1 in)
- Main Tube Diameter: 179 mm (7.0 in)
- Retractable Dew Shield Length: 160 mm (6.3 in)
- Rear Accessory Extension: 214 mm (8.4 in)
- Rear Accessory Section: 157.5 mm (6.2 in)
- Rear Adapter Length: 56.5 mm (2.2 in)
System Charts








| Manufacturer | Takahashi |
|---|---|
| Telescope Focal Length | 1001 - 1250mm |
- 1x Optical Tube Assembly
- 1x CAA TKP30200
- 1x Coupling (TW) TKP31003
- 1x 50.8 Sleeve TKP00113
- 1x Coupling (S) TKP00103
- 1x Ocular adapter 31.7 TKP00101
- 1x Ocular adapter 50.8 TKP27110
- 1x Extension tube TKP31112
- 150 mm f/7.3 apochromatic triplet with dual ED elements for exceptional color correction
- 4" rack-and-pinion focuser with 7:1 fine focus and integrated 360° camera angle adjuster
- Optimized for visual observing and full-frame astrophotography w/ optional Takahashi correctors
- Retractable dew shield and included tube weight for convenient transport and balanced setups
Takahashi TOA-150B Refractor
The Takahashi TOA-150B is a premium 150 mm f/7.3 apochromatic triplet refractor designed to deliver uncompromising performance for both visual astronomy and astrophotography. Its advanced three-element objective features ED glass in both the front and rear lens elements, virtually eliminating spherical aberration while achieving outstanding color correction across the entire visible spectrum. The result is razor-sharp, high-contrast views with pinpoint stars and exceptional image fidelity.
Built for demanding observers and imagers, the TOA-150B features a precision 4-inch rack-and-pinion focuser with a 7:1 fine-focus reduction, a built-in 360° camera angle adjuster, and a retractable dew shield for easier transport. It is fully compatible with Takahashi's dedicated line of flatteners, reducers, and extenders—including the optional 67-series flattener, which supports an impressive 90 mm image circle for large-format imaging systems. An included tube weight helps balance heavy imaging or visual accessories, making the TOA-150B a versatile platform for serious astronomical observation. Please note: Tube rings, finder scope, mount, and tripod are not included.
Specifications
- Optical Design: Apochromatic Triplet Refractor
- Aperture: 150 mm (5.9 in)
- Focal Length: 1100 mm
- Focal Ratio: f/7.3
- Objective Lens: Three-element apochromatic design with dual ED glass elements
- Color Correction: Focal shift less than ±0.01 mm across 436–656 nm
- Focuser: 4 in Rack-and-Pinion
- Fine Focus: 7:1 reduction
- Camera Rotator: 360° Camera Angle Adjuster (CAA)
- Dew Shield: Retractable
- Weight:
- 42.7 lb (20 kg) OTA
- 52.71 lb (24 kg) w/ tube weight
- Max Image Circle (w/ optional 67-series flattener): 90 mm
- Optical Tube Length (Retracted): 1,326.5 mm (52.2 in)
- Optical Tube Length (Without Rear Accessories): 1,110 mm (43.7 in)
- Optical Tube Length (Main Tube Only): 952.5 mm (37.5 in)
- Lens Cell Diameter: 207 mm (8.1 in)
- Main Tube Diameter: 179 mm (7.0 in)
- Retractable Dew Shield Length: 160 mm (6.3 in)
- Rear Accessory Extension: 214 mm (8.4 in)
- Rear Accessory Section: 157.5 mm (6.2 in)
- Rear Adapter Length: 56.5 mm (2.2 in)
System Charts








Other Information
- Country of Manufacture: Japan
| Manufacturer | Takahashi |
|---|---|
| Telescope Focal Length | 1001 - 1250mm |
- 1x Optical Tube Assembly
- 1x CAA TKP30200
- 1x Coupling (TW) TKP31003
- 1x 50.8 Sleeve TKP00113
- 1x Coupling (S) TKP00103
- 1x Ocular adapter 31.7 TKP00101
- 1x Ocular adapter 50.8 TKP27110
- 1x Extension tube TKP31112
