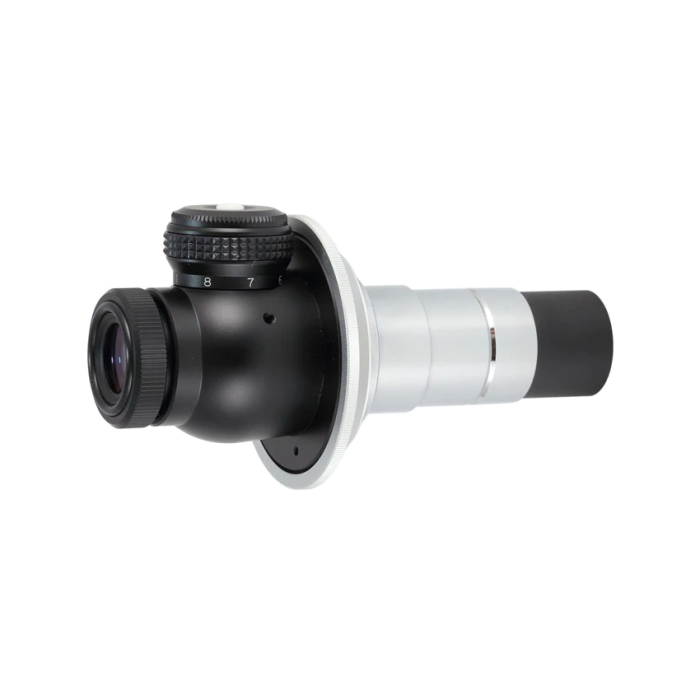

Vixen Optics PF-L II Polar Scope for Polarie Equatorial Mount
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Improved 5x20mm optics with a wide 10° field of view for easy polar alignment
- Three-star alignment reticle provides accuracy within 3 arcminutes
- Adjustable red illumination with eight brightness levels and automatic shutoff
- Designed for the Vixen Polarie Star Tracker with quick, convenient installation
Precise Polar Alignment Made Easy with the Vixen PF-L II
The Vixen PF-L II Polar Scope makes accurate polar alignment easier than ever for your Vixen Polarie Star Tracker! Featuring an improved 5x20mm optical system with a wide 10° field of view, this precision polar scope allows you to align your mount using three reference stars without complicated date or time adjustments.
Its illuminated reticle features eight adjustable brightness levels and an automatic shutoff function, making alignment simple even under dark skies. With polar alignment accuracy of 3 arcminutes or better, the PF-L II helps you achieve more reliable tracking for long-exposure astrophotography. Simply attach it to your Polarie mount, align the reference stars, and start imaging!
Standout Features of the PF-L II Polar Scope
Simple Installation
Simply remove the back cover and tripod base of the Polarie and insert the new parts to complete the assembly. It's ready to use right away.
Easy Reference Stars
The built-in alignment scale displays the positions of the reference stars directly within the polar scope’s field of view, eliminating the need to read an external hour-angle scale in the dark. This makes polar alignment faster, easier, and more convenient.
Dark-Field Illumination
The built-in red LED dark-field illumination lights up the reticle without washing out faint stars, making polar alignment easier in low-light conditions. With eight adjustable brightness levels, you can customize the illumination to your preference. The light also gradually dims and automatically shuts off after 1–2 minutes to help conserve battery life.
Specifications
- Product Type: Polar Alignment Scope
- Magnification: 5x
- Aperture: 20 mm (0.79")
- True Field of View: 10°
- Alignment Method: Three-Star Alignment
- Polar Alignment Accuracy: Within 3 Arcminutes
- Reticle Type: Illuminated Three-Star Alignment Reticle
- Precession Correction: Through 2040
- Northern Hemisphere Reference Stars: Polaris, Delta Ursae Minoris, 51 Cephei
- Southern Hemisphere Reference Stars: Sigma, Tau, and Chi Octantis
- Reticle Illumination: Red LED Dark-Field Illumination
- Brightness Adjustment: 8 Levels
- Automatic Shutoff: Yes
- Power Source: 1x CR2032 Battery (Test Battery Included)
- Dimensions: 60 mm Diameter x 115 mm Length (2.36" x 4.53")
- Weight: 213 g (7.51 oz), Without Battery
- Mount Compatibility: Vixen Polarie Star Tracker
Other Information
- Country of Manufacture: Japan
