- Travel camera mount for star photography
- Very compact and light, optimized for air travel
- Different tracking speeds
- Designed for time-lapse photography
- Very precise tracking (high-precision stepper motor)
- Removable built-in compass
- Power supply or AA batteries are not included
Vixen Optics Polarie Portable Star Tracker
The Vixen Polarie Star Tracker is a lightweight tracking mount designed to make wide-field astrophotography easier than ever! Weighing just 1.6 lbs (740 g), this compact tracker automatically follows the movement of the night sky, allowing longer camera exposures with reduced star trailing. Perfect for capturing the Milky Way, star-filled landscapes, and constellations, the Polarie supports camera setups weighing up to 4.4 lbs (2 kg), including the camera head.
Featuring four tracking modes for stars, the Moon, the Sun, and nightscapes, the Polarie offers versatility for a wide range of astrophotography applications. A built-in compass and inclinometer simplify polar alignment, while convenient AA battery or external USB power options make it ideal for traveling and shooting under dark skies.

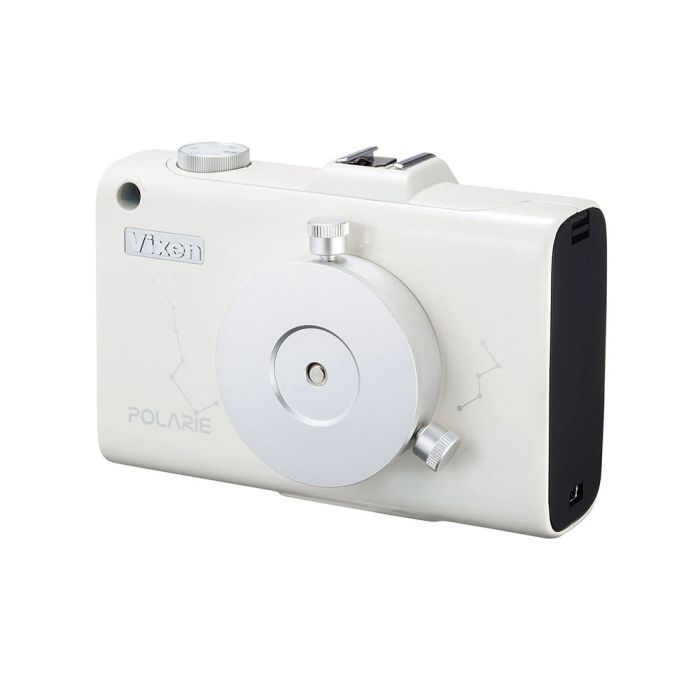

Please Note: This listing is only for the Polarie Star Tracker (shown in the first photo). The tripod and telescope shown in other photos are not included.
Lets take a look at what the Vixen Optics Polarie Star Tracker has to offer in this video below:
Four Imaging Modes
Moon Tracking Mode: Tracks the Moon for sharp, detailed lunar photography.
Solar Tracking Mode: Follows the Sun for solar imaging and capturing eclipses with proper solar filters.
Star Tracking Mode (Sidereal): Tracks the night sky for photographing constellations, the Milky Way, and nebulae.
Starscape Mode (0.5x Sidereal): Balances sky and landscape movement for stunning nightscape photography.
Versatile Powering Options
It operates for approximately 2 hours on AA alkaline batteries (rechargeable batteries can also be used). This helps reduce the amount of equipment you need to carry when shooting. It can also be operated for extended periods using an external power supply.
Easy Operation Even at Night
Equipped with a backlit switch, allowing for smooth operation even in dark conditions. The switch lights up red in all modes except OFF. When used in the Southern Hemisphere, it lights up green.
Simplified Setup
With a built-in compass and inclinometer, you can feel confident even when shooting in an unfamiliar location.
Specifications
-
Tracking Modes: Sidereal, 0.5x sidereal (nightscape), solar, and lunar
-
Hemisphere Compatibility: Northern and Southern Hemispheres
-
Worm Wheel: 57.6 mm (2.27") diameter, 144 teeth, aluminum alloy
-
Worm Shaft: 9 mm (0.35") diameter, brass
-
Polar Axis: 40 mm (1.57") diameter, aluminum alloy
- Tripod Connection: 1/4"-20
-
Bearings: 2
-
Drive System: Pulse motor with electronic tracking
-
Payload Capacity: 2 kg (4.4 lbs), including camera head
-
Moment Load: 20 kg·cm (17.4 lb·in)
-
Polar Alignment Sight: Unmagnified, 8.9° field of view
-
Inclinometer: 0°–70°, with 5° increments
-
Compass: Built-in
-
Power Supply: 2 x AA batteries (alkaline, Ni-MH, or Ni-Cd) or external Mini-USB power
-
Battery Voltage: DC 2.4–3.0V, maximum 0.6A
-
External Power Voltage: DC 4.4–5.25V, maximum 0.3A
-
Battery Runtime: Approximately 2 hours with alkaline batteries at 20°C (68°F) and a 2 kg (4.4 lb) load
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Dimensions: 95 x 137 x 58 mm (3.74" x 5.39" x 2.28"), excluding protrusions
-
Weight: 740 g (1.63 lbs), excluding batteries
Other Information
- Country of Manufacture: Japan
