WarpAstron WarpDrive WD-20P "Power Delivered" Strain Wave Direct Drive Portable EQ/Alt-Az Mount
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
-
New model featuring advanced internal power delivery, improved safety integrations, and expanded I/O capabilities.
-
At this price point, the WD-20P provides a significantly stronger integrated power delivery system than most competing mounts, making it more competitive than ever in terms of value.
-
This WD-20P ideal for users needing streamlined internal cabling and power; those with simpler setups can still consider the WD-20 mount.
WARPDRIVE WD-20P Mount
“P” for Power Delivered!
The all-new WD-20P retains our trusted Servo Direct Drive technology and introduces a redesigned internal structure that delivers up to 150W of power and data through the saddle — eliminating cable clutter and enabling seamless integration.
WD-20P is built with multi-layer active and passive safety features.
From encoder-based limit protection and automatic emergency braking, to a newly added gyroscopic sensor, every mechanism is designed to detect failures and act if damage happens. Even when the coordinate system fails, the mount responds swiftly to protect your gear
Flexible power. Play it your way.
With two ports on saddle supporting for USB-PD power delivery, the WD-20P offers smart, adjustable voltage output up to 150W— ready to power high-performance mini PCs and a wide range of devices.
WD-20P Features
Specifications:
- Mount Type: Equatorial/Altazimuth
- Reduction Gear: RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
- Drive: Direct-drive motor with SWR
- Motor: BLDC Servo Motor
- Weight: 5.7kg/12.5lbs

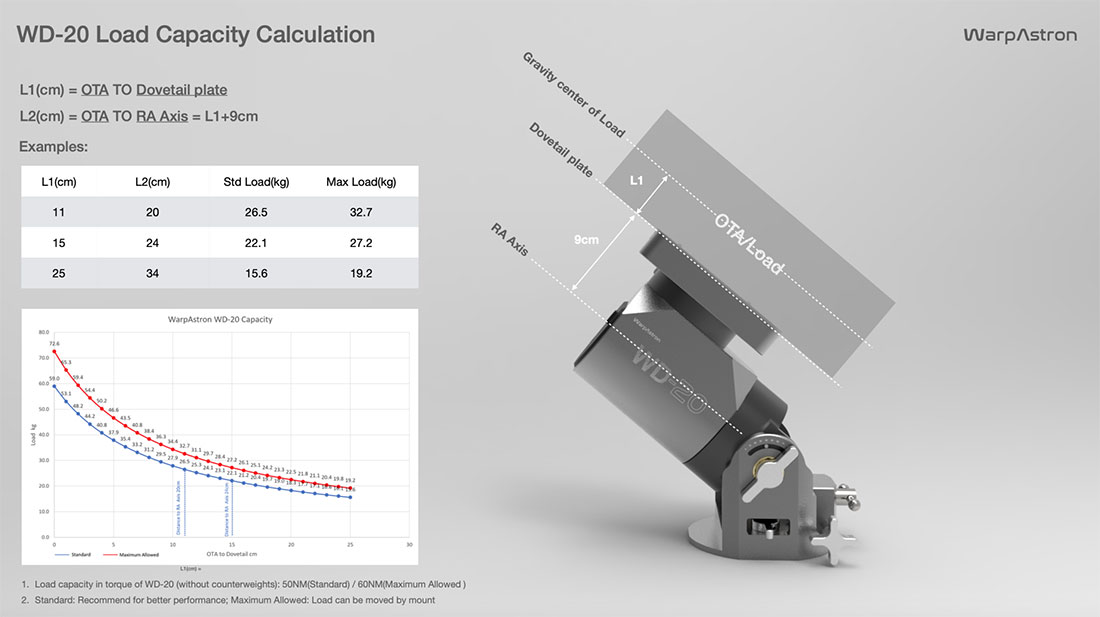

- Load Capacity: *150Nm (Standard) /60Nm (Max allowed) 22kg/44lb (without counterweights) 30kg/66lb (with counterweights)
- Material: AL6061, Stainless Steel, Brass, ABS
- Brake: RA Axis
- Saddle: Vixen & Losmandy
- Saddle Port A: PD3.1 5/9/12/15@3A 20V@5A / PPS 0~20V@6A
- Saddle Port B: PD3.1 5/9/12/15/20@3A / PPS 0~20V@3A / Mount PC Connection
- Counterweight Shaft: M12 Shaft (1.75mm Pitch)
- Slew Rate: 5°/s (Standard 1/2Max), 10°/s (Max)
- Adjustment Range: ALT 0~90°, AZ +/-8°
- Operating Temp.: -30℃ ~ 50℃
- Communication Protocol: ASCOM/INDI/LX200/INDIGO
- Home Control: 2-axis Home Sensors
- Time/Location: Built-in GPS
- Power: 12～28V 10A 5.5*2.5mm DC
- Wireless*2: WIFI 802.11g/Bluetooth
*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.
*2. Wireless functionality may vary by country and region.
Other Information
- Country of Manufacture: China
WARPDRIVE WD-20P Mount
“P” for Power Delivered!
The all-new WD-20P retains our trusted Servo Direct Drive technology and introduces a redesigned internal structure that delivers up to 150W of power and data through the saddle — eliminating cable clutter and enabling seamless integration.
WD-20P is built with multi-layer active and passive safety features.
From encoder-based limit protection and automatic emergency braking, to a newly added gyroscopic sensor, every mechanism is designed to detect failures and act if damage happens. Even when the coordinate system fails, the mount responds swiftly to protect your gear
Flexible power. Play it your way.
With two ports on saddle supporting for USB-PD power delivery, the WD-20P offers smart, adjustable voltage output up to 150W— ready to power high-performance mini PCs and a wide range of devices.
WD-20P Features
Specifications:
- Mount Type: Equatorial/Altazimuth
- Reduction Gear: RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
- Drive: Direct-drive motor with SWR
- Motor: BLDC Servo Motor
- Weight: 5.7kg/12.5lbs
- Load Capacity: *150Nm (Standard) /60Nm (Max allowed) 22kg/44lb (without counterweights) 30kg/66lb (with counterweights)
- Material: AL6061, Stainless Steel, Brass, ABS
- Brake: RA Axis
- Saddle: Vixen & Losmandy
- Saddle Port A: PD3.1 5/9/12/15@3A 20V@5A / PPS 0~20V@6A
- Saddle Port B: PD3.1 5/9/12/15/20@3A / PPS 0~20V@3A / Mount PC Connection
- Counterweight Shaft: M12 Shaft (1.75mm Pitch)
- Slew Rate: 5°/s (Standard 1/2Max), 10°/s (Max)
- Adjustment Range: ALT 0~90°, AZ +/-8°
- Operating Temp.: -30℃ ~ 50℃
- Communication Protocol: ASCOM/INDI/LX200/INDIGO
- Home Control: 2-axis Home Sensors
- Time/Location: Built-in GPS
- Power: 12～28V 10A 5.5*2.5mm DC
- Wireless*2: WIFI 802.11g/Bluetooth
*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.
*2. Wireless functionality may vary by country and region.
- WD-20P Mount Head * 1
- Hand Controller * 1
- DC to DC 5.5*2.5mm 1.5m cable * 1
- USB Type-C to A Data Cable (for PC connection) * 1
- USB Type-C to C 1m Cable * 1 (for hand controller connection or 100W PD)
- PD Type-C to DC 5.5*2.5mm 12V 3A 1.5m cable * 1
- PD Type-C to DC 5.5*2.5mm 12V 5A 1m cable * 1
- 200W 24V AC Adapter
- Transport case
- 4mm Hex wrench
- Quick Guide Instruction
-
New model featuring advanced internal power delivery, improved safety integrations, and expanded I/O capabilities.
-
At this price point, the WD-20P provides a significantly stronger integrated power delivery system than most competing mounts, making it more competitive than ever in terms of value.
-
This WD-20P ideal for users needing streamlined internal cabling and power; those with simpler setups can still consider the WD-20 mount.
WARPDRIVE WD-20P Mount
“P” for Power Delivered!
The all-new WD-20P retains our trusted Servo Direct Drive technology and introduces a redesigned internal structure that delivers up to 150W of power and data through the saddle — eliminating cable clutter and enabling seamless integration.
WD-20P is built with multi-layer active and passive safety features.
From encoder-based limit protection and automatic emergency braking, to a newly added gyroscopic sensor, every mechanism is designed to detect failures and act if damage happens. Even when the coordinate system fails, the mount responds swiftly to protect your gear
Flexible power. Play it your way.
With two ports on saddle supporting for USB-PD power delivery, the WD-20P offers smart, adjustable voltage output up to 150W— ready to power high-performance mini PCs and a wide range of devices.
WD-20P Features
Specifications:
- Mount Type: Equatorial/Altazimuth
- Reduction Gear: RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
- Drive: Direct-drive motor with SWR
- Motor: BLDC Servo Motor
- Weight: 5.7kg/12.5lbs
- Load Capacity: *150Nm (Standard) /60Nm (Max allowed) 22kg/44lb (without counterweights) 30kg/66lb (with counterweights)
- Material: AL6061, Stainless Steel, Brass, ABS
- Brake: RA Axis
- Saddle: Vixen & Losmandy
- Saddle Port A: PD3.1 5/9/12/15@3A 20V@5A / PPS 0~20V@6A
- Saddle Port B: PD3.1 5/9/12/15/20@3A / PPS 0~20V@3A / Mount PC Connection
- Counterweight Shaft: M12 Shaft (1.75mm Pitch)
- Slew Rate: 5°/s (Standard 1/2Max), 10°/s (Max)
- Adjustment Range: ALT 0~90°, AZ +/-8°
- Operating Temp.: -30℃ ~ 50℃
- Communication Protocol: ASCOM/INDI/LX200/INDIGO
- Home Control: 2-axis Home Sensors
- Time/Location: Built-in GPS
- Power: 12～28V 10A 5.5*2.5mm DC
- Wireless*2: WIFI 802.11g/Bluetooth
*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.
*2. Wireless functionality may vary by country and region.
Other Information
- Country of Manufacture: China
- WD-20P Mount Head * 1
- Hand Controller * 1
- DC to DC 5.5*2.5mm 1.5m cable * 1
- USB Type-C to A Data Cable (for PC connection) * 1
- USB Type-C to C 1m Cable * 1 (for hand controller connection or 100W PD)
- PD Type-C to DC 5.5*2.5mm 12V 3A 1.5m cable * 1
- PD Type-C to DC 5.5*2.5mm 12V 5A 1m cable * 1
- 200W 24V AC Adapter
- Transport case
- 4mm Hex wrench
- Quick Guide Instruction
