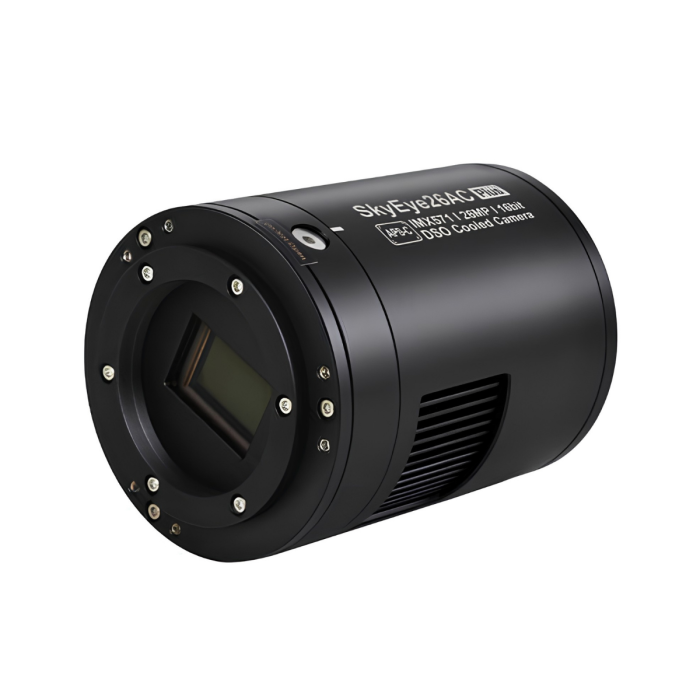

ToupTek SkyEye 26AC Plus Cooled Color Astronomy Camera
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Upgraded Cooling: Enhanced two-stage TEC cooling reaches up to 40°C below ambient
- Expanded Connectivity: Integrated 5-port USB hub with 4x USB 2.0 and 1x USB 3.0 ports
- Improved Design: Redesigned structure provides greater operating stability and a more streamlined setup
- Full-Frame Sensor: Sony IMX410 color CMOS delivers 24MP resolution with large 5.94μm pixels
- Power Adapter Sold Separately
SkyEye26 Plus: Stronger Cooling & Wider Compatibility!
The ToupTek SkyEye26AC Plus builds on ToupTek Astro’s flagship cooled-camera platform with an upgraded design, stronger cooling, expanded connectivity, and improved operating stability. Powered by the Sony IMX571 APS-C sensor, it delivers 26 MP resolution, 3.76 µm pixels, and 16-bit imaging for highly detailed deep-sky images. Advanced two-stage TEC cooling provides up to a 43°C temperature reduction, while ultra-low read noise, zero amp-glow, and a 512 MB DDR3 buffer help deliver clean, consistent results during long exposures.
Core Highlights of the SkyEye Plus

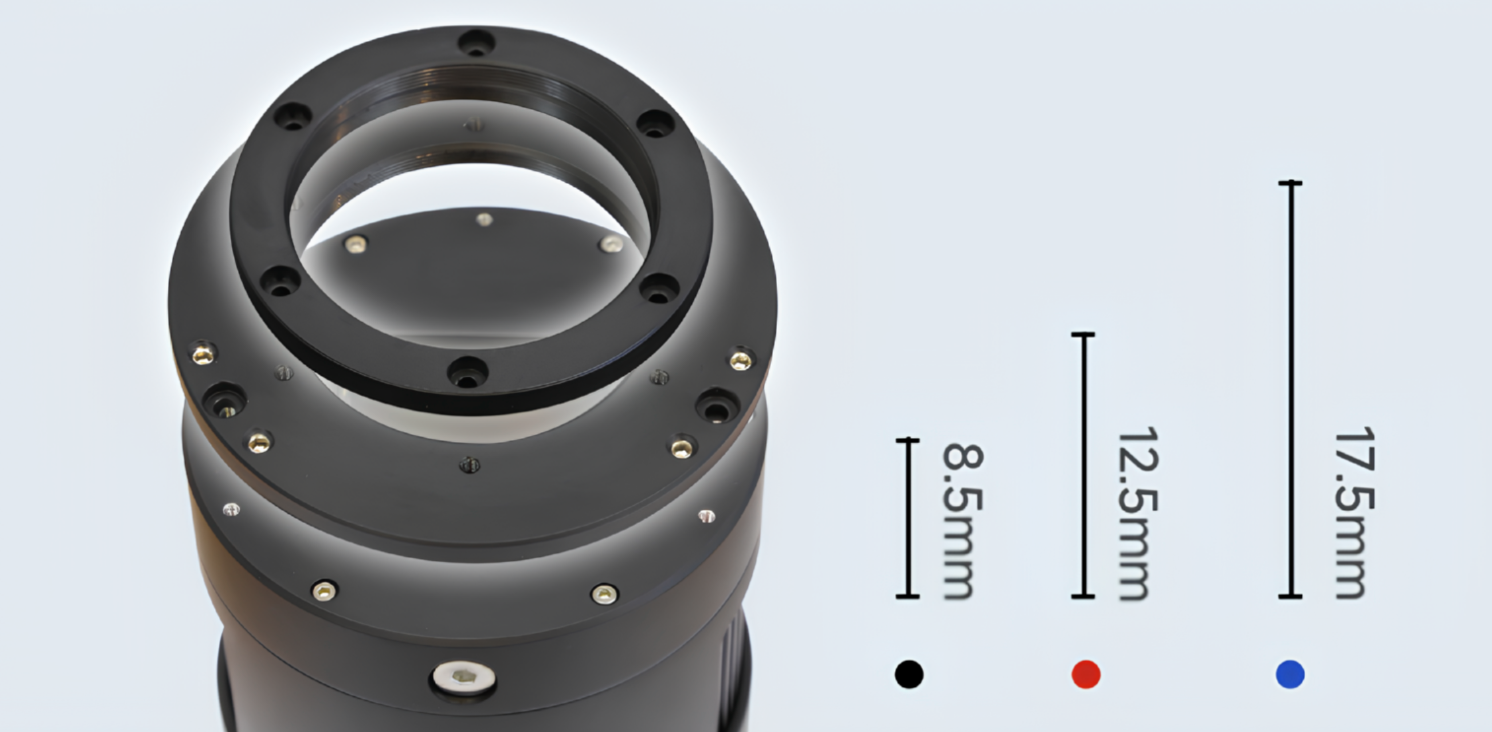

Shorter Back Focus
Every model uses an M54x0.75 female thread and includes a full-size M54 extension tube and adapter ring for a standard 55mm optical train. Removing the front adapters reduces the camera back focus to 12.5mm or 8.5mm for greater compatibility with optical systems and accessories.
Large Field of View
Featuring a Sony IMX571 back-illuminated color sensor with 26 million effective pixels, this APS-C format delivers an excellent balance of performance and field of view. Its versatile sensor size pairs well with a wide range of telescopes and imaging setups, making it a strong choice for both experienced astrophotographers and beginners.
Powerful Cooling
The SkyEye26AC Plus features an upgraded TEC cooling system with precise PID temperature control, reaching up to 43°C below ambient. This helps suppress thermal noise and dark current for cleaner, higher-quality long-exposure images.
Expanded Conectivity & Reinforced Power
The integrated 5-port USB hub (4xUSB 2.0, 1xUSB 3.0) allows direct connection of accessories such as filter wheels, guide cameras, and focusers, reducing cable clutter and simplifying setup.
The optimized power system maintains stable camera operation during continuous cooling and high accessory loads throughout an imaging session.
- Note: The SkyEye Plus camera body can operate from a 12V/3A supply. A DC 12V/5A supply is strongly recommended when using the USB hub. USB 3.0 is used only for high-speed data transfer and does not power the camera or connected accessories.
OSC or Mono: Finding the Right Fit
One-Shot Color (OSC) cameras streamline your workflow by capturing full-color images without a filter wheel, offering a fast and travel-friendly setup that is perfect for astrophotography beginners, mobile imagers, or anyone seeking high-quality results with minimal post-processing.
Monochrome (Mono) cameras deliver superior photon efficiency and pixel-level sharpness by eliminating the light loss and resolution interpolation of a Bayer matrix. Mono imaging is tailored for dedicated deep-sky astrophotographers who demand maximum sensitivity, ultimate narrowband performance (Ha, OIII, SII), and full control over composite LRGB rendering under any sky condition.
Built-in Sensor Tilt Adjustment & Convenient Calibration
The SkyEye Plus body includes three sets of precision adjustment screws, allowing the sensor plane to be aligned with the telescope focal plane without an additional accessory for more uniform stars across the field.
- Note: Avoid large adjustments. Loosen the opposing screw before turning any adjustment screw. For example, loosen the matching push screw counterclockwise before tightening a pull screw clockwise; otherwise, the mechanism may be damaged.
- The series also supports the SkyEye rear four-point sensor tilt ring. The replacement does not consume additional optical length and retains the standard 12.5mm/17.5mm back focus.
High-Speed Buffer, Stable Transfer
Supporting USB 3.0 transmission, the SkyEye Plus has a built-in DDR3 512MB cache to ensure reliable data transmission. At the same time, the cache can greatly avoid the glow phenomenon caused by slow transmission speed, ensuring optimal imaging conditions.
Zero Amp-Glow for Cleaner Long Exposures
Featuring a back-illuminated, zero amp-glow, Sony CMOS sensor. This sensor effectively avoids common problems like amp- glow that traditional front-illuminated sensors suffer from. This maintains a clean background signal under high gain and long exposure conditions. Making calibration is easier and post-processing more efficient!
Four-Level Anti-Dew Heating
The sealed, dry sensor chamber helps prevent condensation from forming on the CMOS sensor and inner optical window during cooling. An integrated window heater offers four adjustable power levels to keep the optical path clear in humid conditions and during significant temperature changes.

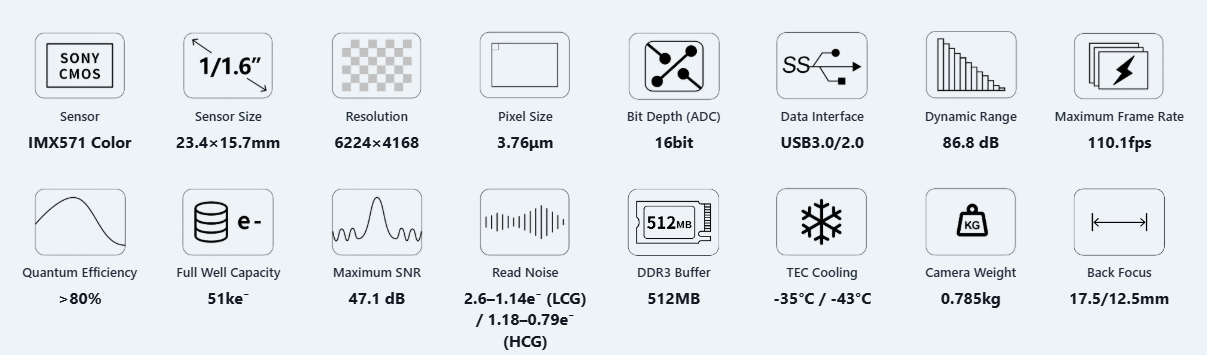

Specifications
- Sensor: Sony IMX571 Color CMOS
- Sensor Type: Back-Illuminated CMOS
- Sensor Format: APS-C
- Sensor Size: 23.4 x 15.7 mm
- Resolution: 26 MP (6224 x 4168)
- Pixel Size: 3.76 x 3.76 μm
- ADC: 16-bit
- Peak Quantum Efficiency (QE): >80%
- Dynamic Range: 86.8 dB
- Maximum SNR: 47.1 dB
- Full Well Capacity: 51 ke⁻
- LCG Read Noise: 2.6–1.14 e⁻
- HCG Read Noise: 1.18–0.79 e⁻
- Gain Modes: LCG, HCG & Low Noise
- Maximum Frame Rate: 110.1 fps
- Cooling System: Two-Stage TEC with PID Temperature Control
- Cooling Capacity: Up to 43°C below ambient
- Anti-Dew Heater: Integrated, 4-Level Adjustable
- Protective Window: IR Cut/AR
- Camera Thread: M54 x 0.75 Female
- Back Focus: 17.5 mm / 12.5 mm / 8.5 mm, depending on configuration
- Accessory Mounting: 6 x M2.5 mounting holes
- Sensor Tilt Adjustment: Built-In
- Camera Weight: 0.785 kg (1.73 lb)
- Data Interface: USB 3.0 / USB 2.0
- Onboard Buffer: 512 MB DDR3
- USB Hub: 4 x USB 2.0 + 1 x USB 3.0
- Power Requirement: DC 12V / 3A minimum
- Recommended Power: DC 12V / 5A when powering USB accessories
- USB Power: USB 3.0 is for data transfer only; external DC power is required

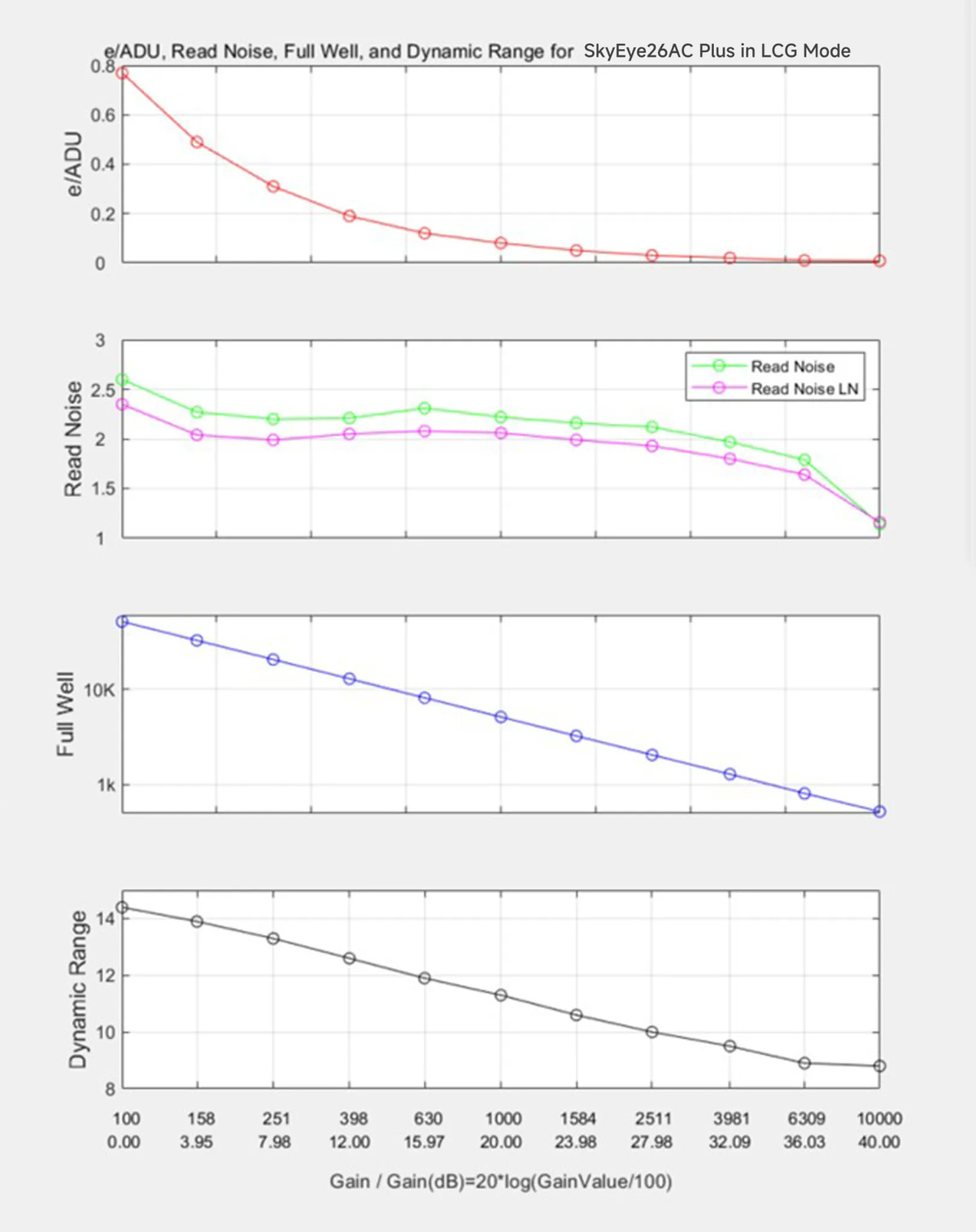

Performance Analysis Charts
The SkyEye26AC Plus gives you greater control over image quality with three selectable gain modes, allowing you to optimize performance for everything from bright targets to faint deep-sky objects.
-
Native High-Bit-Depth ADC: SkyEye26AC Plus is equipped with 16bit ADC, with natural colors and delicate levels.
-

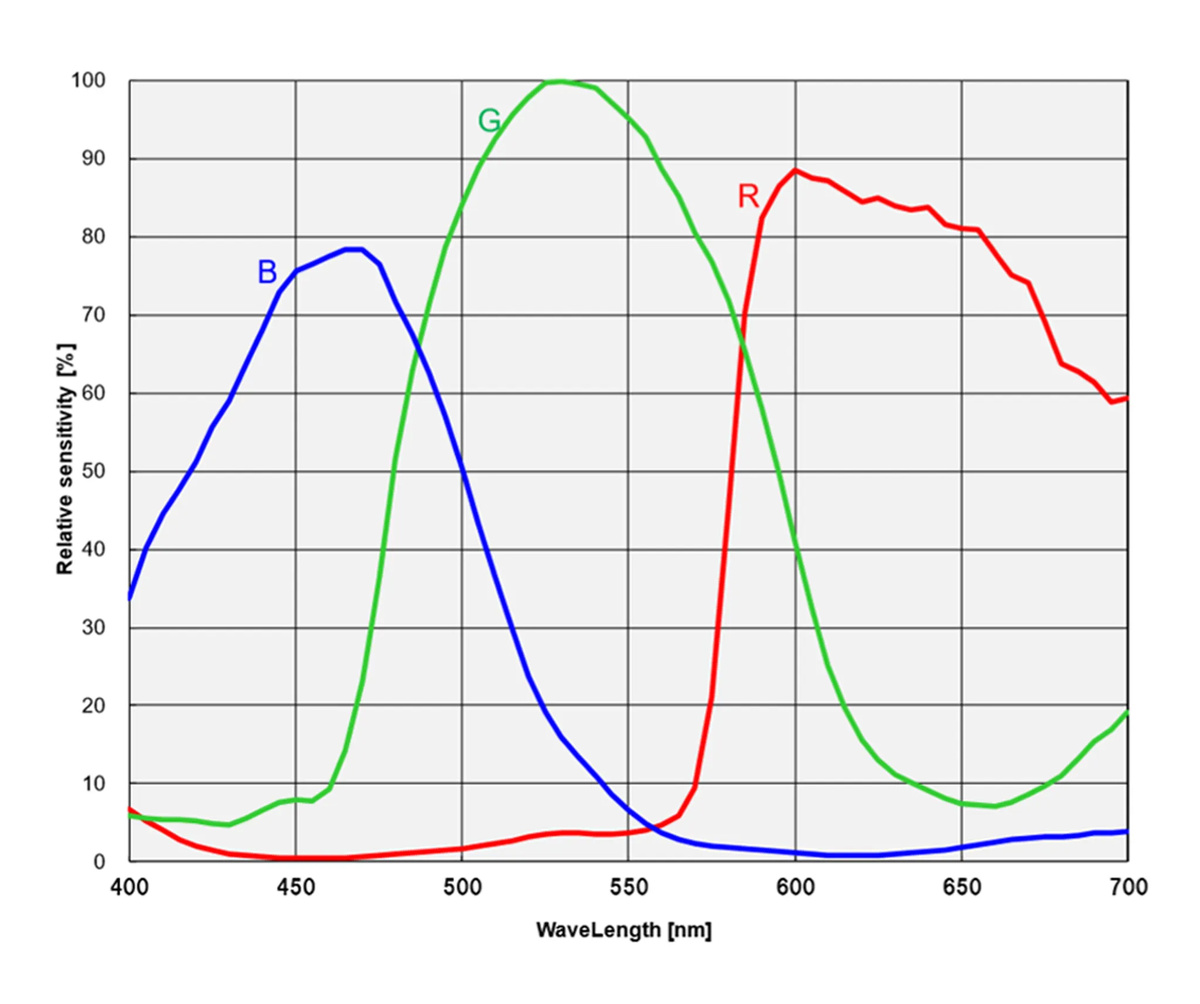

High sensitivity & high QE: The peak quantum efficiency of SkyEye26AC Plus is >80%, the spectral response is wider, the light sensitivity is more sensitive, and the ability to capture weak light signals is greatly improved.
-

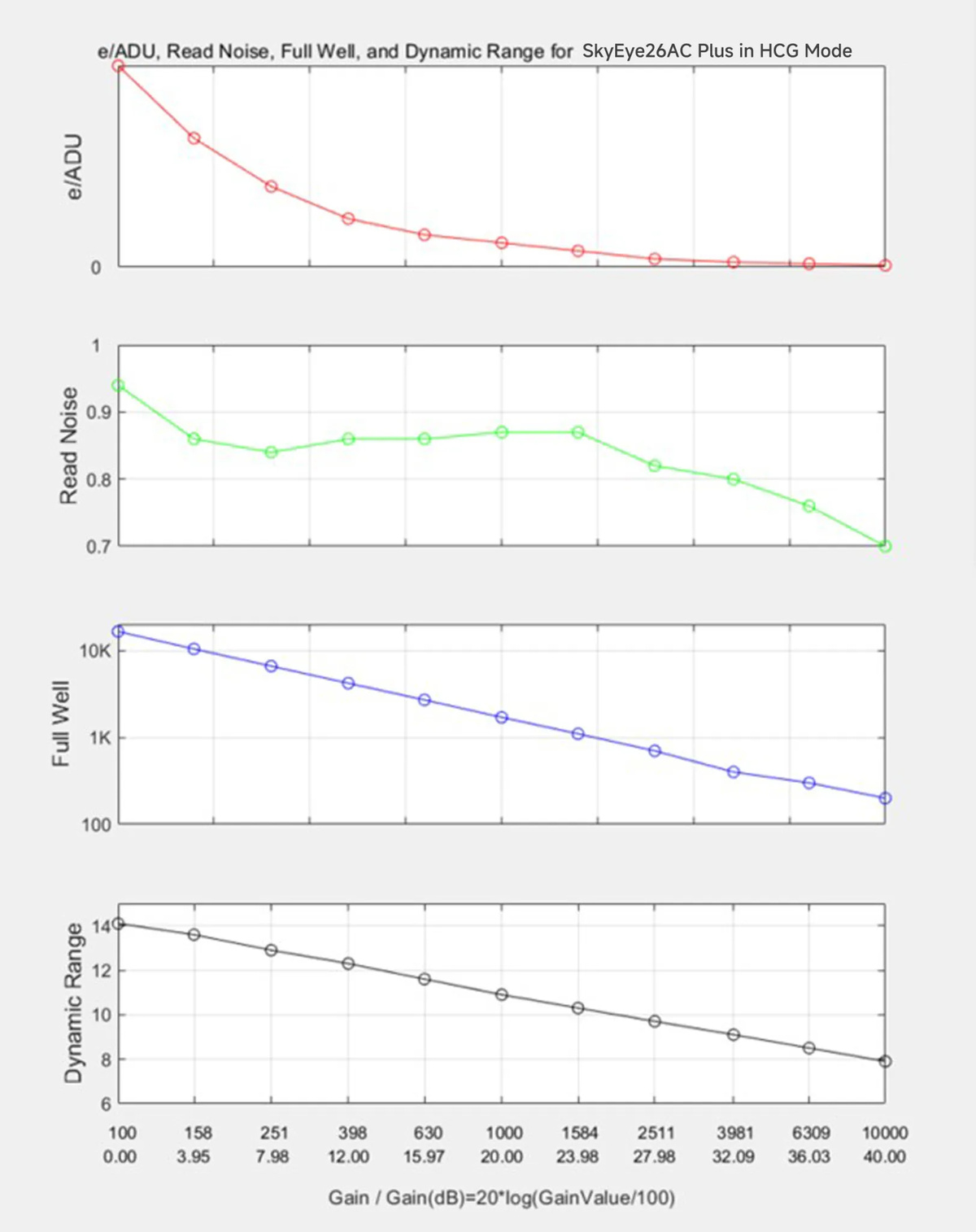

HCG Mode: Reduces read noise for capturing faint targets, reaching as low as 0.79e⁻ read noise at maximum gain.
-
LCG Mode: Expands full-well capacity to help prevent overexposure and preserve detail in brighter targets.
-
Low Noise Mode: Reduces frame rate for lower read noise while maintaining high dynamic range and natural brightness and color.

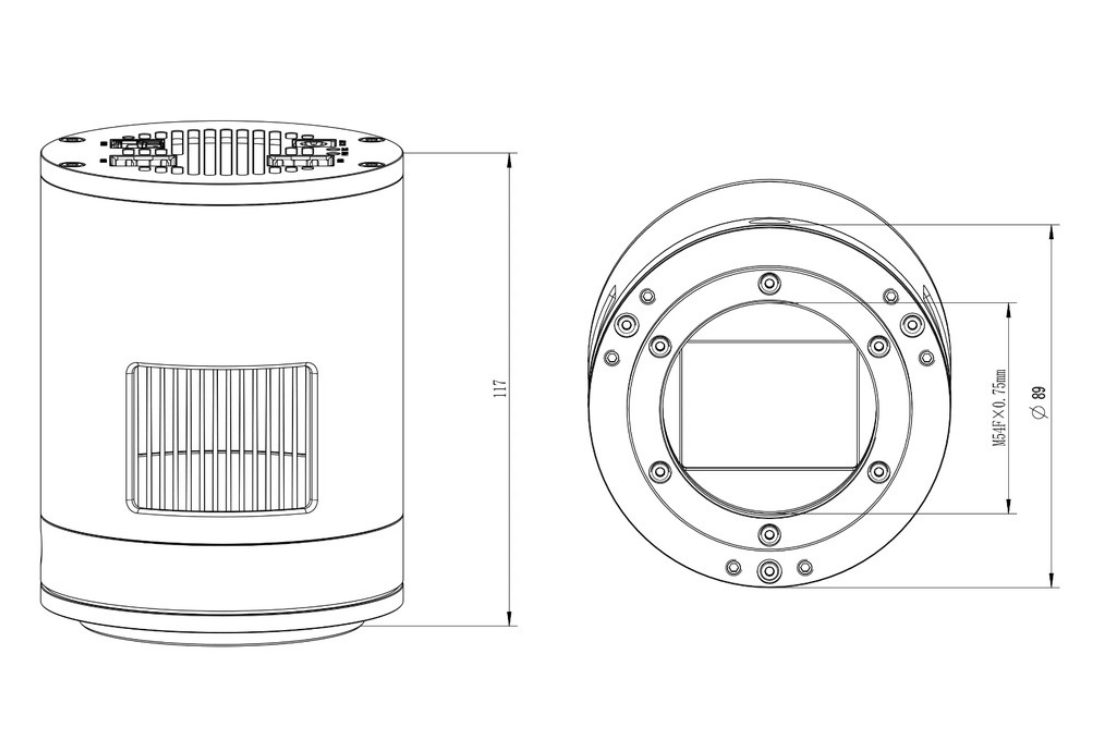

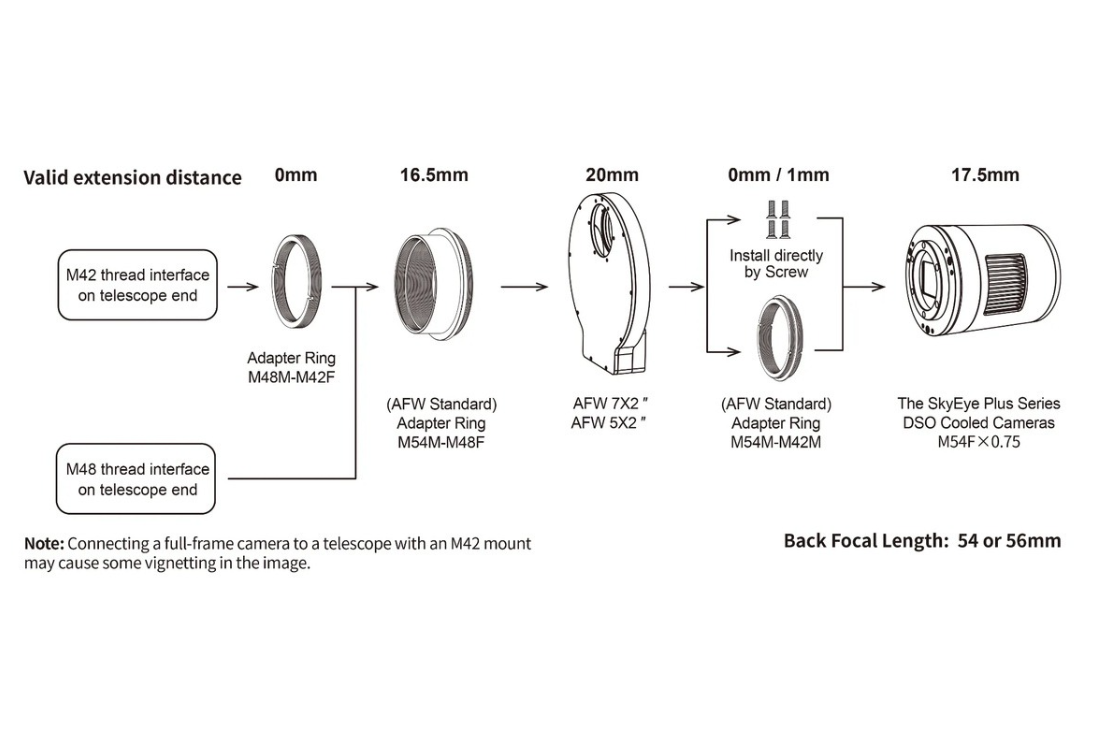

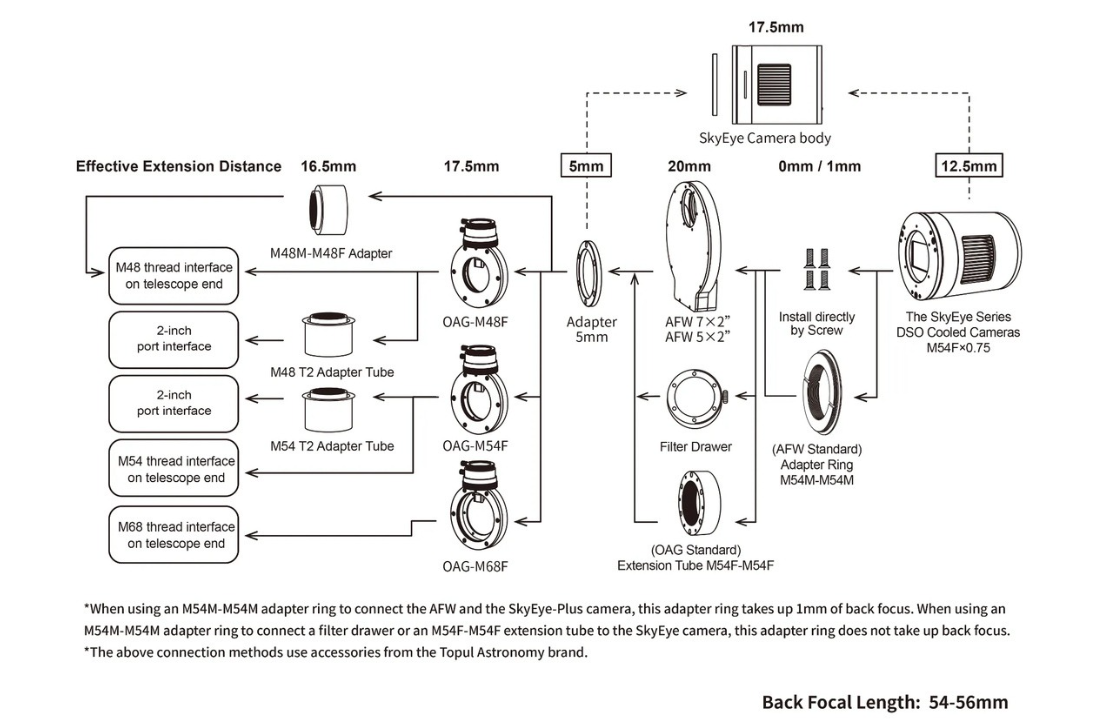

Diagrams and Connection Charts
Other Information
- Country of Manufacture: China
SkyEye26 Plus: Stronger Cooling & Wider Compatibility!
The ToupTek SkyEye26AC Plus builds on ToupTek Astro’s flagship cooled-camera platform with an upgraded design, stronger cooling, expanded connectivity, and improved operating stability. Powered by the Sony IMX571 APS-C sensor, it delivers 26 MP resolution, 3.76 µm pixels, and 16-bit imaging for highly detailed deep-sky images. Advanced two-stage TEC cooling provides up to a 43°C temperature reduction, while ultra-low read noise, zero amp-glow, and a 512 MB DDR3 buffer help deliver clean, consistent results during long exposures.
Core Highlights of the SkyEye Plus
Shorter Back Focus
Every model uses an M54x0.75 female thread and includes a full-size M54 extension tube and adapter ring for a standard 55mm optical train. Removing the front adapters reduces the camera back focus to 12.5mm or 8.5mm for greater compatibility with optical systems and accessories.
Large Field of View
Featuring a Sony IMX571 back-illuminated color sensor with 26 million effective pixels, this APS-C format delivers an excellent balance of performance and field of view. Its versatile sensor size pairs well with a wide range of telescopes and imaging setups, making it a strong choice for both experienced astrophotographers and beginners.
Powerful Cooling
The SkyEye26AC Plus features an upgraded TEC cooling system with precise PID temperature control, reaching up to 43°C below ambient. This helps suppress thermal noise and dark current for cleaner, higher-quality long-exposure images.
Expanded Conectivity & Reinforced Power
The integrated 5-port USB hub (4xUSB 2.0, 1xUSB 3.0) allows direct connection of accessories such as filter wheels, guide cameras, and focusers, reducing cable clutter and simplifying setup.
The optimized power system maintains stable camera operation during continuous cooling and high accessory loads throughout an imaging session.
- Note: The SkyEye Plus camera body can operate from a 12V/3A supply. A DC 12V/5A supply is strongly recommended when using the USB hub. USB 3.0 is used only for high-speed data transfer and does not power the camera or connected accessories.
OSC or Mono: Finding the Right Fit
One-Shot Color (OSC) cameras streamline your workflow by capturing full-color images without a filter wheel, offering a fast and travel-friendly setup that is perfect for astrophotography beginners, mobile imagers, or anyone seeking high-quality results with minimal post-processing.
Monochrome (Mono) cameras deliver superior photon efficiency and pixel-level sharpness by eliminating the light loss and resolution interpolation of a Bayer matrix. Mono imaging is tailored for dedicated deep-sky astrophotographers who demand maximum sensitivity, ultimate narrowband performance (Ha, OIII, SII), and full control over composite LRGB rendering under any sky condition.
Built-in Sensor Tilt Adjustment & Convenient Calibration
The SkyEye Plus body includes three sets of precision adjustment screws, allowing the sensor plane to be aligned with the telescope focal plane without an additional accessory for more uniform stars across the field.
- Note: Avoid large adjustments. Loosen the opposing screw before turning any adjustment screw. For example, loosen the matching push screw counterclockwise before tightening a pull screw clockwise; otherwise, the mechanism may be damaged.
- The series also supports the SkyEye rear four-point sensor tilt ring. The replacement does not consume additional optical length and retains the standard 12.5mm/17.5mm back focus.
High-Speed Buffer, Stable Transfer
Supporting USB 3.0 transmission, the SkyEye Plus has a built-in DDR3 512MB cache to ensure reliable data transmission. At the same time, the cache can greatly avoid the glow phenomenon caused by slow transmission speed, ensuring optimal imaging conditions.
Zero Amp-Glow for Cleaner Long Exposures
Featuring a back-illuminated, zero amp-glow, Sony CMOS sensor. This sensor effectively avoids common problems like amp- glow that traditional front-illuminated sensors suffer from. This maintains a clean background signal under high gain and long exposure conditions. Making calibration is easier and post-processing more efficient!
Four-Level Anti-Dew Heating
The sealed, dry sensor chamber helps prevent condensation from forming on the CMOS sensor and inner optical window during cooling. An integrated window heater offers four adjustable power levels to keep the optical path clear in humid conditions and during significant temperature changes.
Specifications
- Sensor: Sony IMX571 Color CMOS
- Sensor Type: Back-Illuminated CMOS
- Sensor Format: APS-C
- Sensor Size: 23.4 x 15.7 mm
- Resolution: 26 MP (6224 x 4168)
- Pixel Size: 3.76 x 3.76 μm
- ADC: 16-bit
- Peak Quantum Efficiency (QE): >80%
- Dynamic Range: 86.8 dB
- Maximum SNR: 47.1 dB
- Full Well Capacity: 51 ke⁻
- LCG Read Noise: 2.6–1.14 e⁻
- HCG Read Noise: 1.18–0.79 e⁻
- Gain Modes: LCG, HCG & Low Noise
- Maximum Frame Rate: 110.1 fps
- Cooling System: Two-Stage TEC with PID Temperature Control
- Cooling Capacity: Up to 43°C below ambient
- Anti-Dew Heater: Integrated, 4-Level Adjustable
- Protective Window: IR Cut/AR
- Camera Thread: M54 x 0.75 Female
- Back Focus: 17.5 mm / 12.5 mm / 8.5 mm, depending on configuration
- Accessory Mounting: 6 x M2.5 mounting holes
- Sensor Tilt Adjustment: Built-In
- Camera Weight: 0.785 kg (1.73 lb)
- Data Interface: USB 3.0 / USB 2.0
- Onboard Buffer: 512 MB DDR3
- USB Hub: 4 x USB 2.0 + 1 x USB 3.0
- Power Requirement: DC 12V / 3A minimum
- Recommended Power: DC 12V / 5A when powering USB accessories
- USB Power: USB 3.0 is for data transfer only; external DC power is required
Performance Analysis Charts
The SkyEye26AC Plus gives you greater control over image quality with three selectable gain modes, allowing you to optimize performance for everything from bright targets to faint deep-sky objects.
-
Native High-Bit-Depth ADC: SkyEye26AC Plus is equipped with 16bit ADC, with natural colors and delicate levels.
-
High sensitivity & high QE: The peak quantum efficiency of SkyEye26AC Plus is >80%, the spectral response is wider, the light sensitivity is more sensitive, and the ability to capture weak light signals is greatly improved.
-
HCG Mode: Reduces read noise for capturing faint targets, reaching as low as 0.79e⁻ read noise at maximum gain.
-
LCG Mode: Expands full-well capacity to help prevent overexposure and preserve detail in brighter targets.
-
Low Noise Mode: Reduces frame rate for lower read noise while maintaining high dynamic range and natural brightness and color.
Diagrams and Connection Charts

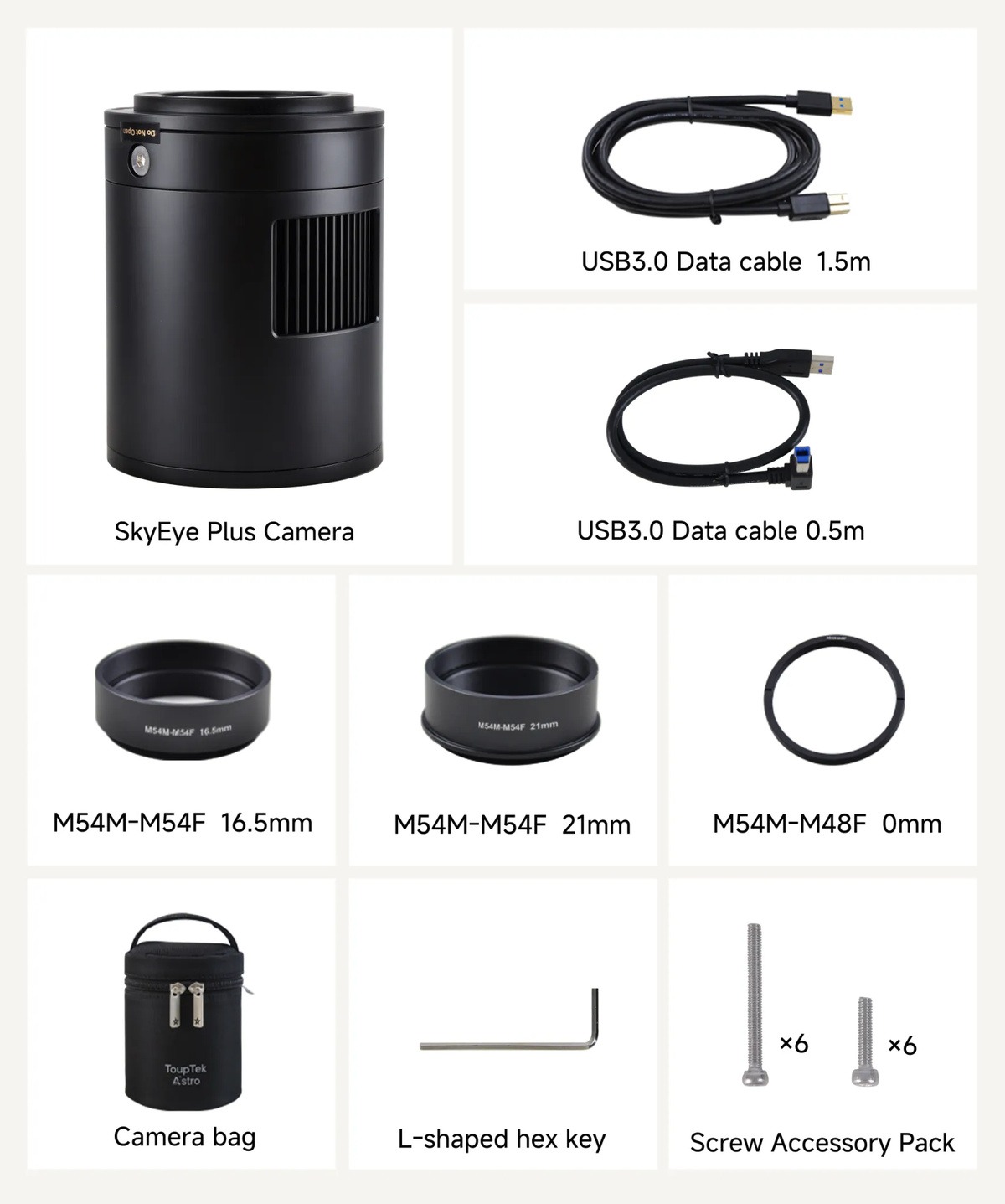

- 1x SkyEye Plus Camera
