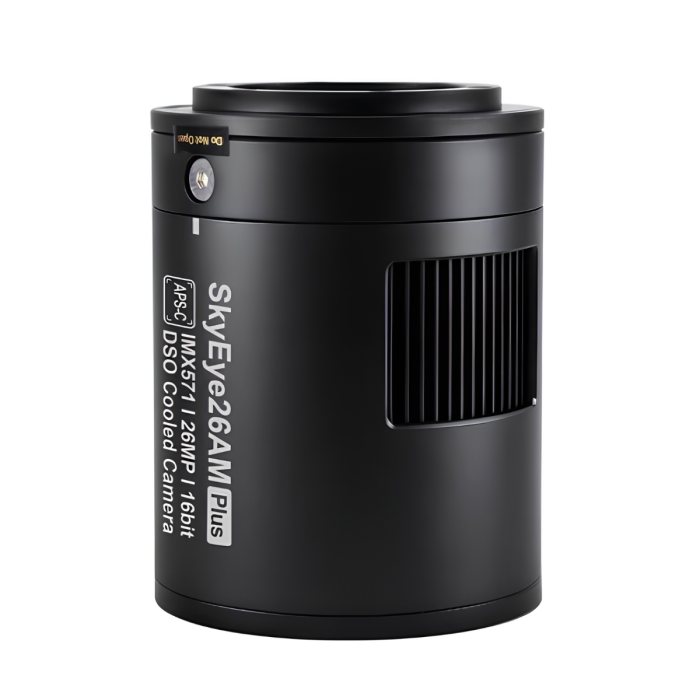

ToupTek SkyEye 26AM Plus Cooled Mono Astronomy Camera
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Upgraded Cooling: Enhanced two-stage TEC cooling reaches up to 40°C below ambient
- Expanded Connectivity: Integrated 5-port USB hub with 4x USB 2.0 and 1x USB 3.0 ports
- Improved Design: Redesigned structure provides greater operating stability and a more streamlined setup
- APS-C Sensor: Sony IMX571 monochrome CMOS delivers 26MP resolution with large 3.76μm pixels
- Power adapter required and sold separately
SkyEye26AM Plus: Stronger Cooling & Wider Compatibility!
Powered by the Sony IMX571 APS-C sensor, the SkyEye26AM Plus (Mono) and SkyEye26AC Plus (Color) deliver 26MP resolution, 3.76μm pixels, and a 16-bit ADC for detailed, high-quality deep-sky imaging. Featuring advanced two-stage TEC cooling with up to 43°C temperature reduction, ultra-low read noise, zero amp-glow performance, and a 512MB DDR3 buffer, they provide clean, stable images during long exposures.
Core Highlights of the SkyEye Plus
Shorter Back Focus
Every model uses an M54x0.75 female thread and includes a full-size M54 extension tube and adapter ring for a standard 55mm optical train. Removing the front adapters reduces the camera back focus to 12.5mm or 8.5mm for greater compatibility with optical systems and accessories.
Large Field of View
Featuring a Sony IMX571 back-illuminated mono sensor with 26 million effective pixels, this APS-C format delivers an excellent balance of performance and field of view. Its versatile sensor size pairs well with a wide range of telescopes and imaging setups, making it a strong choice for both experienced astrophotographers and beginners.
Powerful Cooling
The camera utilizes a high-performance two-stage Thermoelectric Cooling (TEC) system. By achieving a cooling from -35°C to -42°C below ambient, the SkyEye Plus series camera cools the sensor deeply and consistently, delivering exceptionally quiet background noise levels for long-exposure imaging.
Expanded Connectivity & Reinforced Power
The integrated 5-port USB hub (4xUSB 2.0, 1xUSB 3.0) allows direct connection of accessories such as filter wheels, guide cameras, and focusers, reducing cable clutter and simplifying setup.
The optimized power system maintains stable camera operation during continuous cooling and high accessory loads throughout an imaging session.
- Note: The SkyEye Plus camera body can operate from a 12V/3A supply. A DC 12V/5A supply is strongly recommended when using the USB hub. USB 3.0 is used only for high-speed data transfer and does not power the camera or connected accessories.
Built-in Sensor Tilt Adjustment & Convenient Calibration
The SkyEye Plus body includes three sets of precision adjustment screws, allowing the sensor plane to be aligned with the telescope focal plane without an additional accessory for more uniform stars across the field.
- Note: Avoid large adjustments. Loosen the opposing screw before turning any adjustment screw. For example, loosen the matching push screw counterclockwise before tightening a pull screw clockwise; otherwise, the mechanism may be damaged.
- The series also supports the SkyEye rear four-point sensor tilt ring. The replacement does not consume additional optical length and retains the standard 12.5mm/17.5mm back focus.
High-Speed Buffer, Stable Transfer
Featuring an onboard 512MB DDR3 buffer, the SkyEye Plus series camera ensures stable USB 3.0 data transfer, preventing frame loss and transmission-induced amp-glow. The camera supports digital pixel binning from 1x1 to 8x8 (via stacking or averaging) and hardware pixel binning from 1x1 to 3x3 (via averaging). On-sensor hardware binning provides significantly faster readout speeds and processing efficiency than software binning.
Zero Amp-Glow for Cleaner Long Exposures
SkyEye26AM Plus uses Sony's back-illuminated non-glow CMOS sensor, which effectively avoids the common glow problem of traditional front-illuminated sensors and maintains a uniform and clean background signal under high gain and long exposure conditions. Calibration is easier and post-processing is more efficient.
Anti-Dew Heating
The SkyEye Plus series optical window features an integrated smart heating system that actively measures ambient temperature and humidity. It automatically applies precise heat to prevent condensation, keeping your optical path crystal clear without introducing disruptive thermal air currents.

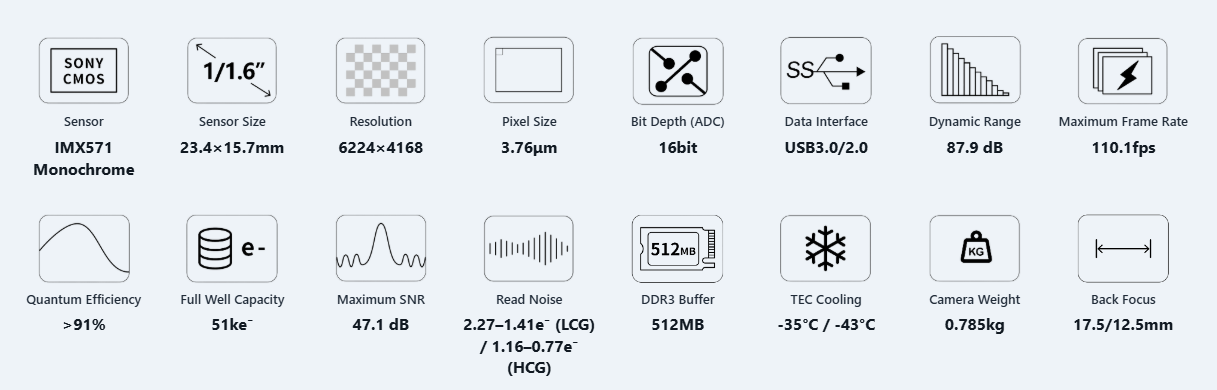

Specifications
- Sensor: Sony IMX571 Mono CMOS
- Sensor Type: Back-Illuminated CMOS
- Sensor Format: APS-C
- Sensor Size: 23.4 x 15.7 mm
- Resolution: 26 MP (6224 x 4168)
- Pixel Size: 3.76 x 3.76 μm
- ADC: 16-bit
- Protective Window: AR
- FPS: 110.0 (8bit)
- Max SNR 47.1 dB
- Peak Quantum Efficiency (QE): >91%
- Dynamic Range: 86.8 dB
- Full Well Capacity: Up to 51 ke⁻
- LCG Read Noise: 2.6–1.14 e⁻
- HCG Read Noise: 1.16–0.77 e⁻
- Gain Modes: LCG, HCG & Low Noise
- Cooling System: Two-Stage TEC with PID Temperature Control
- Cooling Capacity: Up to 43°C below ambient
- Amp Glow: Zero Amp-Glow
- Anti-Dew Heater: Integrated
- Camera Thread: M54 x 0.75 Female
- Back Focus: 17.5 mm / 12.5 mm / 8.5 mm, depending on configuration
- Accessory Mounting: 6 x M2.5 mounting holes
- Camera Weight: 0.785 kg (1.73 lb)
- Data Interface: USB 3.0 / USB 2.0
- Onboard Buffer: 512 MB DDR3
- USB Hub: 4 x USB 2.0 + 1 x USB 3.0
- Power Requirement: DC 12V / 3A minimum
- Recommended Power: DC 12V / 5A when powering USB accessories
- USB Power: USB 3.0 is for data transfer only; external DC power is required
Performance Analysis Charts
The SkyEye26AM Plus gives you greater control over image quality with three selectable gain modes, allowing you to optimize performance for everything from bright targets to faint deep-sky objects.
-
Native High-Bit-Depth ADC: SkyEye26AM Plus is equipped with 16bit ADC, with natural colors and delicate levels.
-

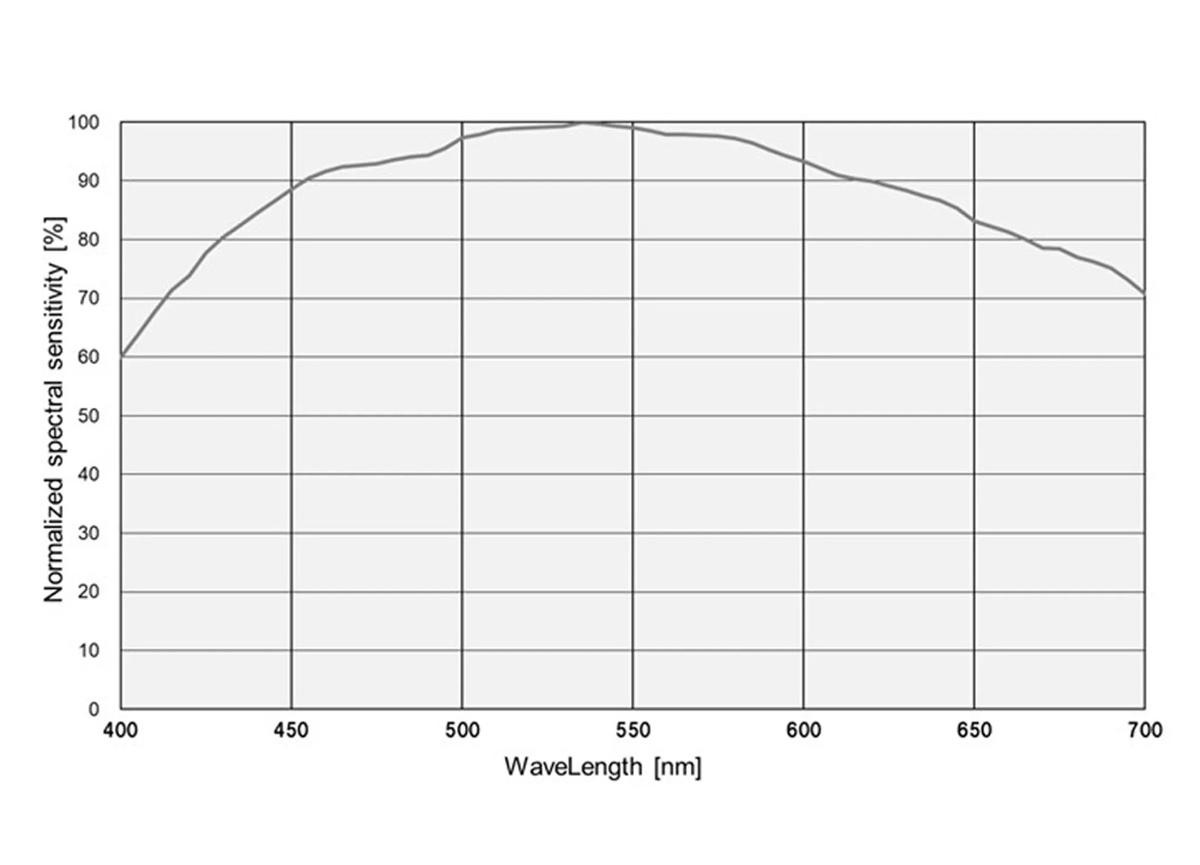

High sensitivity & high QE: The peak quantum efficiency of SkyEye26AM Plus is >91%, the spectral response is wider, the light sensitivity is more sensitive, and the ability to capture weak light signals is greatly improved.
-

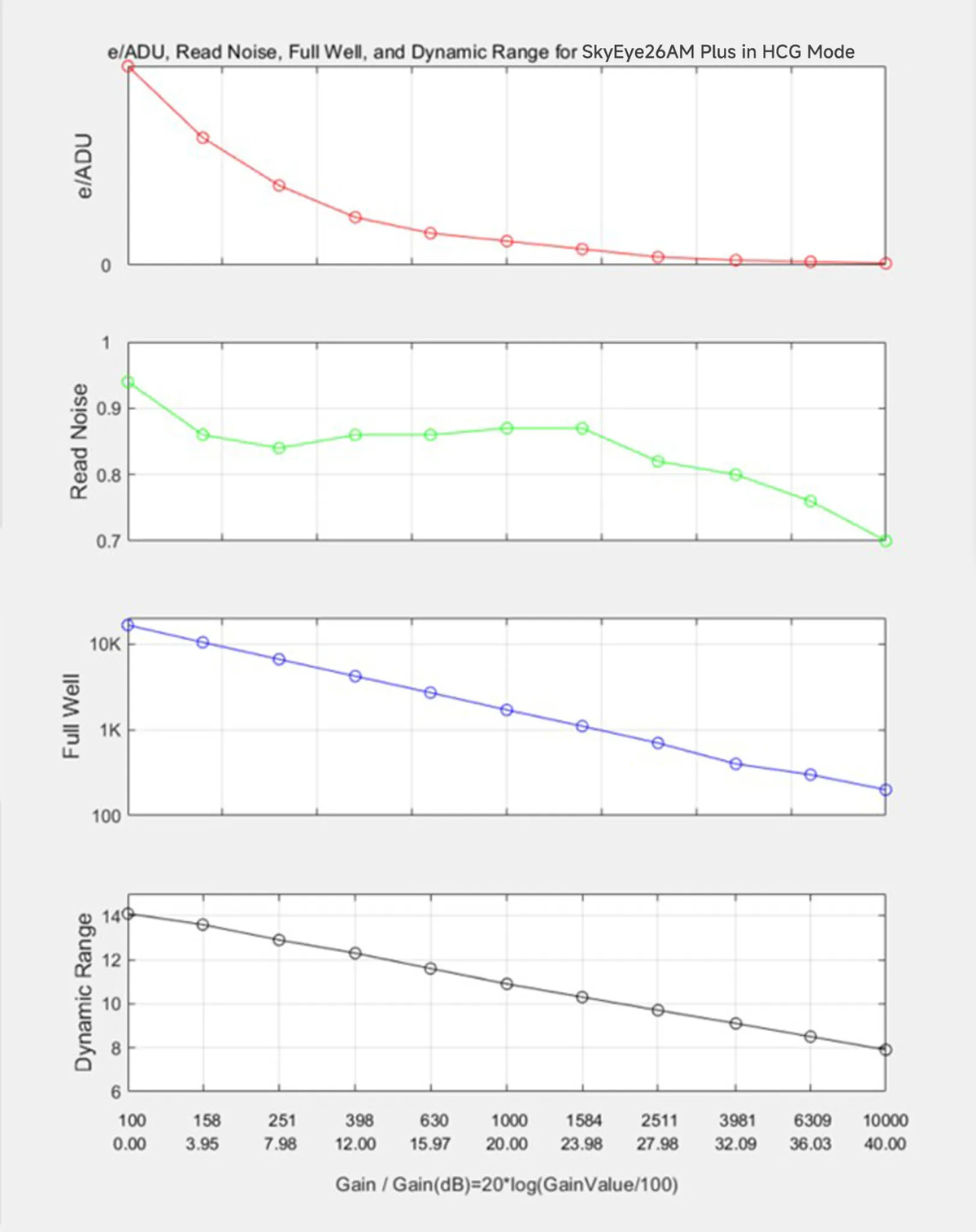

HCG Mode: Reduces read noise for capturing faint targets, reaching as low as 0.77e⁻ read noise at maximum gain.
-

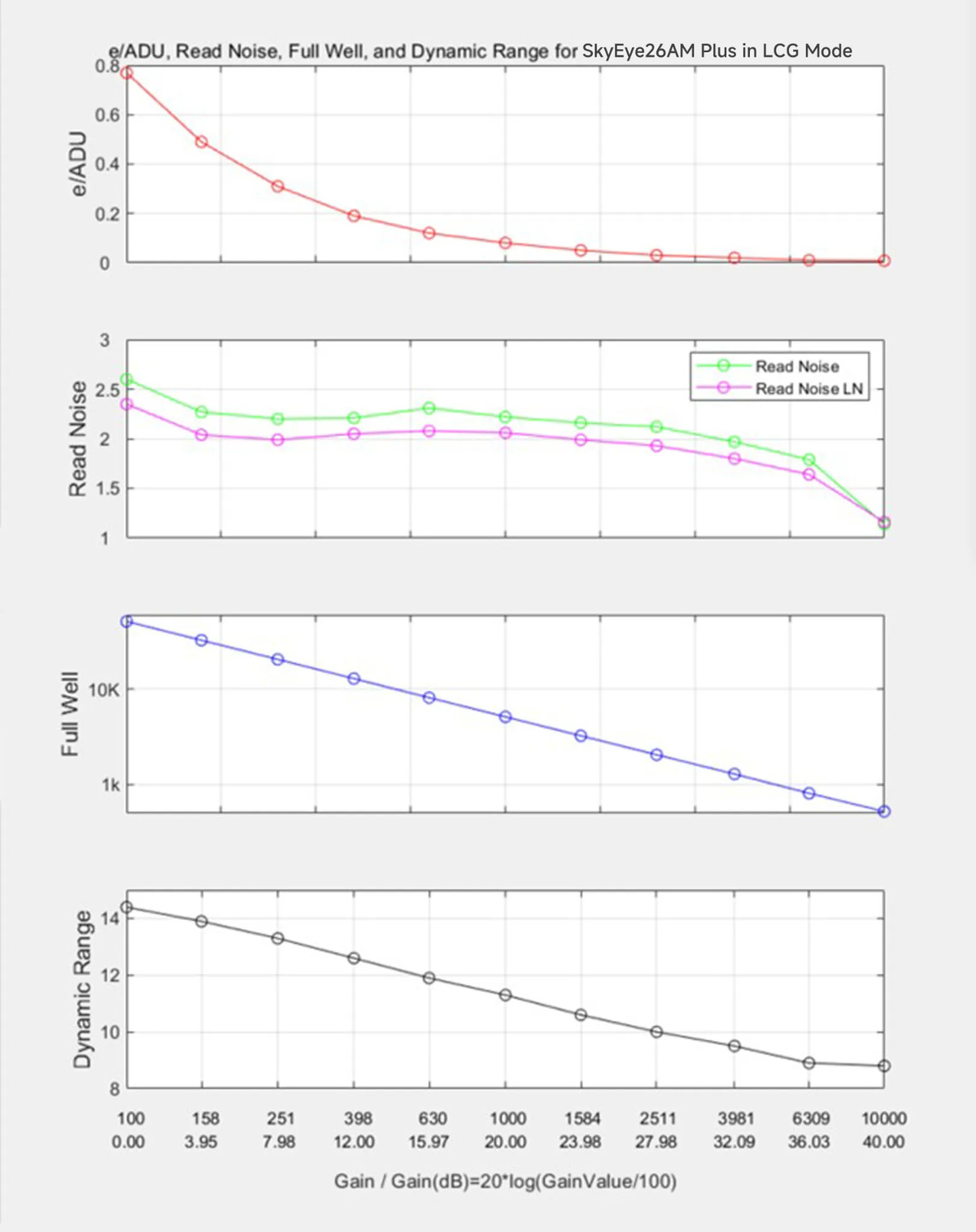

LCG Mode: Expands full-well capacity to help prevent overexposure and preserve detail in brighter targets.
-
Low Noise Mode: Reduces frame rate for lower read noise while maintaining high dynamic range and natural brightness and color.

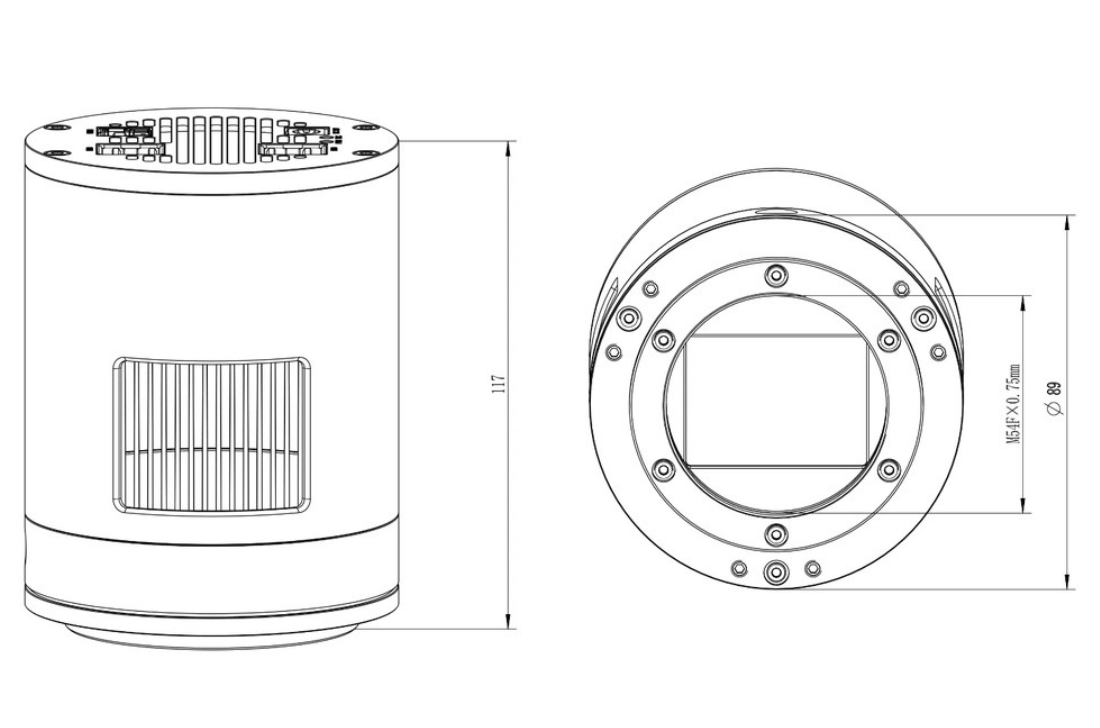

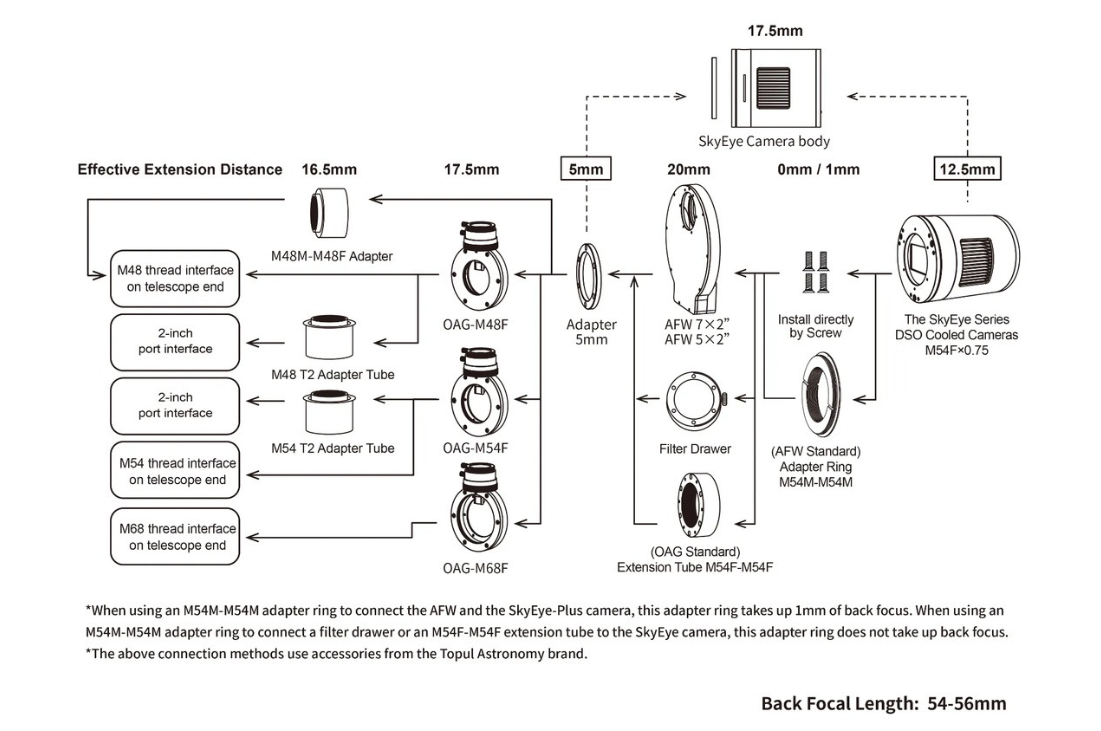

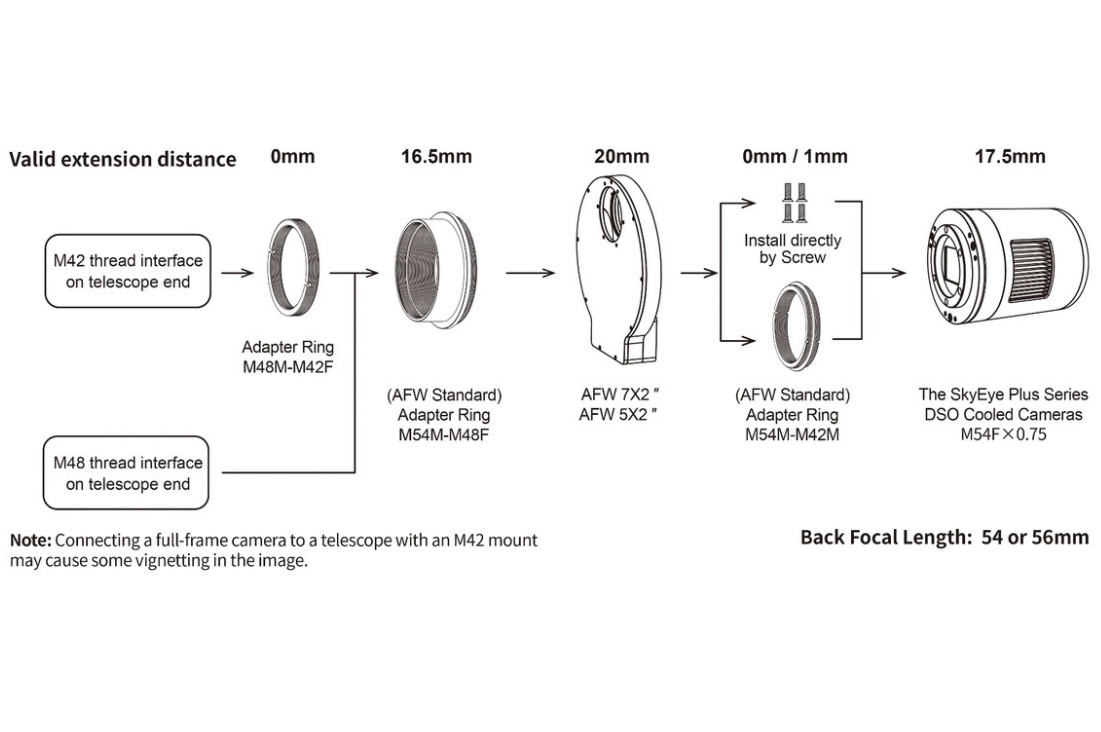

Diagrams and Connection Charts
Other Information
- Country of Manufacture: China
SkyEye26AM Plus: Stronger Cooling & Wider Compatibility!
Powered by the Sony IMX571 APS-C sensor, the SkyEye26AM Plus (Mono) and SkyEye26AC Plus (Color) deliver 26MP resolution, 3.76μm pixels, and a 16-bit ADC for detailed, high-quality deep-sky imaging. Featuring advanced two-stage TEC cooling with up to 43°C temperature reduction, ultra-low read noise, zero amp-glow performance, and a 512MB DDR3 buffer, they provide clean, stable images during long exposures.
Core Highlights of the SkyEye Plus
Shorter Back Focus
Every model uses an M54x0.75 female thread and includes a full-size M54 extension tube and adapter ring for a standard 55mm optical train. Removing the front adapters reduces the camera back focus to 12.5mm or 8.5mm for greater compatibility with optical systems and accessories.
Large Field of View
Featuring a Sony IMX571 back-illuminated mono sensor with 26 million effective pixels, this APS-C format delivers an excellent balance of performance and field of view. Its versatile sensor size pairs well with a wide range of telescopes and imaging setups, making it a strong choice for both experienced astrophotographers and beginners.
Powerful Cooling
The camera utilizes a high-performance two-stage Thermoelectric Cooling (TEC) system. By achieving a cooling from -35°C to -42°C below ambient, the SkyEye Plus series camera cools the sensor deeply and consistently, delivering exceptionally quiet background noise levels for long-exposure imaging.
Expanded Connectivity & Reinforced Power
The integrated 5-port USB hub (4xUSB 2.0, 1xUSB 3.0) allows direct connection of accessories such as filter wheels, guide cameras, and focusers, reducing cable clutter and simplifying setup.
The optimized power system maintains stable camera operation during continuous cooling and high accessory loads throughout an imaging session.
- Note: The SkyEye Plus camera body can operate from a 12V/3A supply. A DC 12V/5A supply is strongly recommended when using the USB hub. USB 3.0 is used only for high-speed data transfer and does not power the camera or connected accessories.
Built-in Sensor Tilt Adjustment & Convenient Calibration
The SkyEye Plus body includes three sets of precision adjustment screws, allowing the sensor plane to be aligned with the telescope focal plane without an additional accessory for more uniform stars across the field.
- Note: Avoid large adjustments. Loosen the opposing screw before turning any adjustment screw. For example, loosen the matching push screw counterclockwise before tightening a pull screw clockwise; otherwise, the mechanism may be damaged.
- The series also supports the SkyEye rear four-point sensor tilt ring. The replacement does not consume additional optical length and retains the standard 12.5mm/17.5mm back focus.
High-Speed Buffer, Stable Transfer
Featuring an onboard 512MB DDR3 buffer, the SkyEye Plus series camera ensures stable USB 3.0 data transfer, preventing frame loss and transmission-induced amp-glow. The camera supports digital pixel binning from 1x1 to 8x8 (via stacking or averaging) and hardware pixel binning from 1x1 to 3x3 (via averaging). On-sensor hardware binning provides significantly faster readout speeds and processing efficiency than software binning.
Zero Amp-Glow for Cleaner Long Exposures
SkyEye26AM Plus uses Sony's back-illuminated non-glow CMOS sensor, which effectively avoids the common glow problem of traditional front-illuminated sensors and maintains a uniform and clean background signal under high gain and long exposure conditions. Calibration is easier and post-processing is more efficient.
Anti-Dew Heating
The SkyEye Plus series optical window features an integrated smart heating system that actively measures ambient temperature and humidity. It automatically applies precise heat to prevent condensation, keeping your optical path crystal clear without introducing disruptive thermal air currents.
Specifications
- Sensor: Sony IMX571 Mono CMOS
- Sensor Type: Back-Illuminated CMOS
- Sensor Format: APS-C
- Sensor Size: 23.4 x 15.7 mm
- Resolution: 26 MP (6224 x 4168)
- Pixel Size: 3.76 x 3.76 μm
- ADC: 16-bit
- Protective Window: AR
- FPS: 110.0 (8bit)
- Max SNR 47.1 dB
- Peak Quantum Efficiency (QE): >91%
- Dynamic Range: 86.8 dB
- Full Well Capacity: Up to 51 ke⁻
- LCG Read Noise: 2.6–1.14 e⁻
- HCG Read Noise: 1.16–0.77 e⁻
- Gain Modes: LCG, HCG & Low Noise
- Cooling System: Two-Stage TEC with PID Temperature Control
- Cooling Capacity: Up to 43°C below ambient
- Amp Glow: Zero Amp-Glow
- Anti-Dew Heater: Integrated
- Camera Thread: M54 x 0.75 Female
- Back Focus: 17.5 mm / 12.5 mm / 8.5 mm, depending on configuration
- Accessory Mounting: 6 x M2.5 mounting holes
- Camera Weight: 0.785 kg (1.73 lb)
- Data Interface: USB 3.0 / USB 2.0
- Onboard Buffer: 512 MB DDR3
- USB Hub: 4 x USB 2.0 + 1 x USB 3.0
- Power Requirement: DC 12V / 3A minimum
- Recommended Power: DC 12V / 5A when powering USB accessories
- USB Power: USB 3.0 is for data transfer only; external DC power is required
Performance Analysis Charts
The SkyEye26AM Plus gives you greater control over image quality with three selectable gain modes, allowing you to optimize performance for everything from bright targets to faint deep-sky objects.
-
Native High-Bit-Depth ADC: SkyEye26AM Plus is equipped with 16bit ADC, with natural colors and delicate levels.
-
High sensitivity & high QE: The peak quantum efficiency of SkyEye26AM Plus is >91%, the spectral response is wider, the light sensitivity is more sensitive, and the ability to capture weak light signals is greatly improved.
-
HCG Mode: Reduces read noise for capturing faint targets, reaching as low as 0.77e⁻ read noise at maximum gain.
-
LCG Mode: Expands full-well capacity to help prevent overexposure and preserve detail in brighter targets.
-
Low Noise Mode: Reduces frame rate for lower read noise while maintaining high dynamic range and natural brightness and color.
Diagrams and Connection Charts

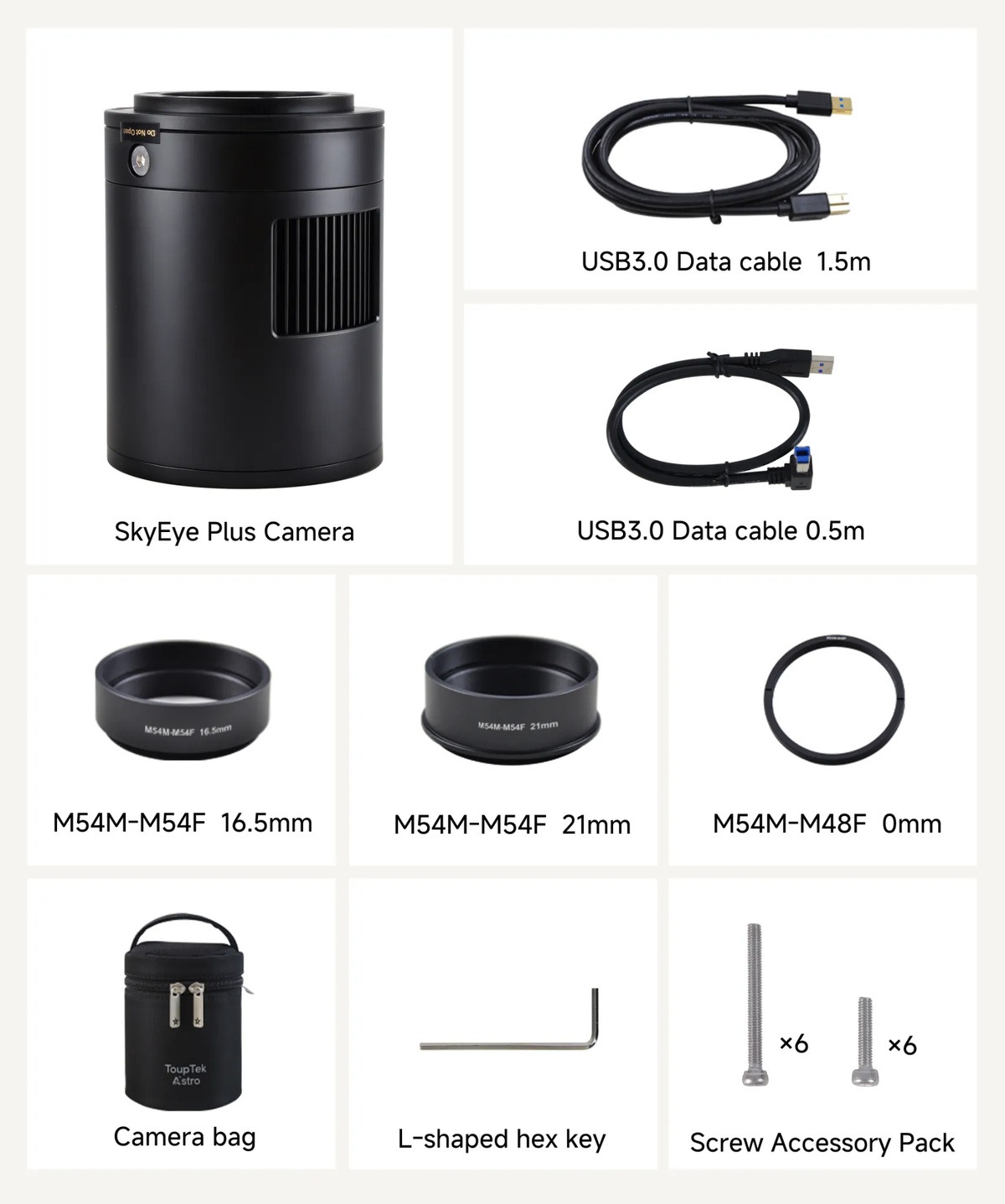

- 1x SkyEye Plus Camera
- 1x USB 3.0 Data Cable 1.5m
- 1x USB 3.0 Data Cable 0.5m
- 1x M54M-M54F 16.5mm
- 1x M54M-M54F 21mm
- 1x M54M-M48F 0mm
- 1x Camera Bag
- 1x L-Shaped Hex Key
- 12x Screw Accessory Pack
